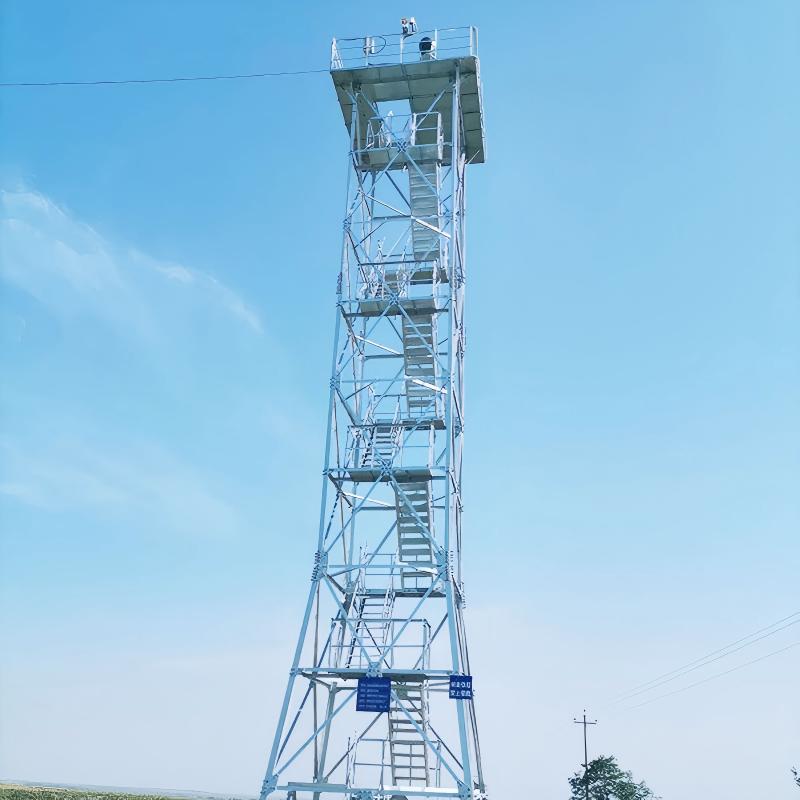

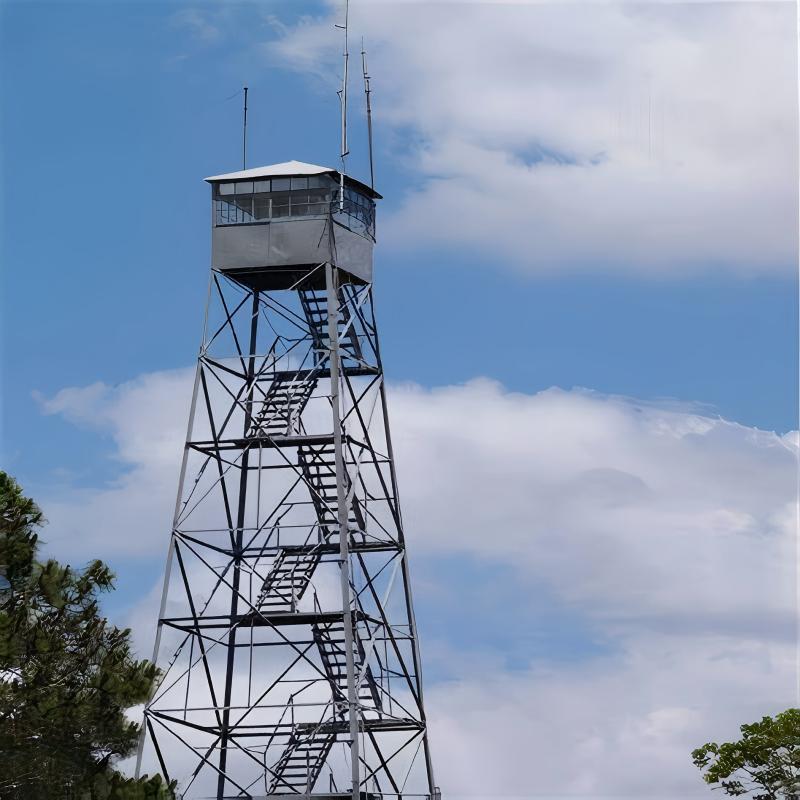

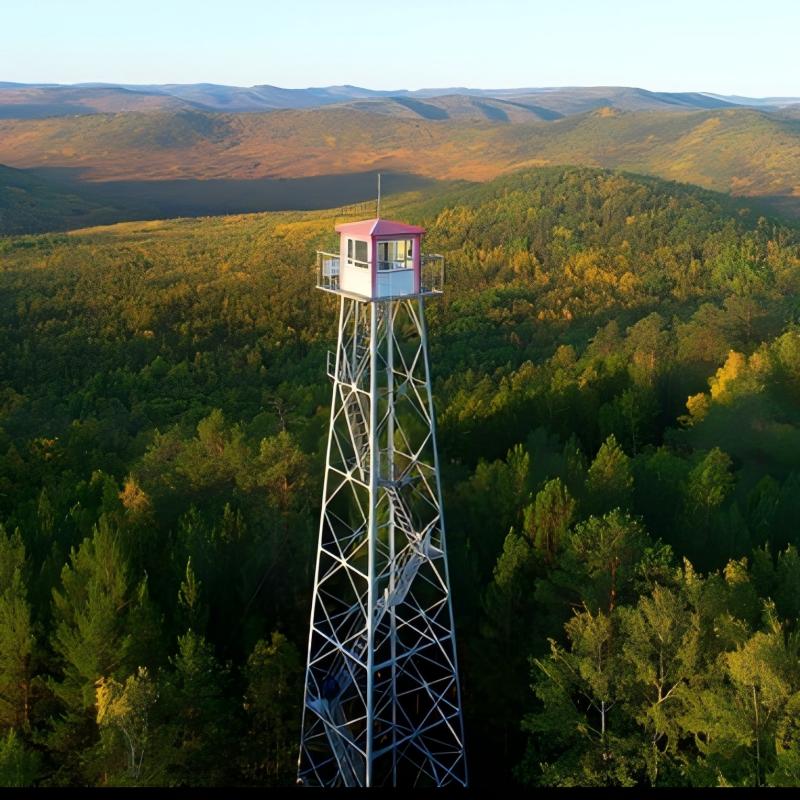

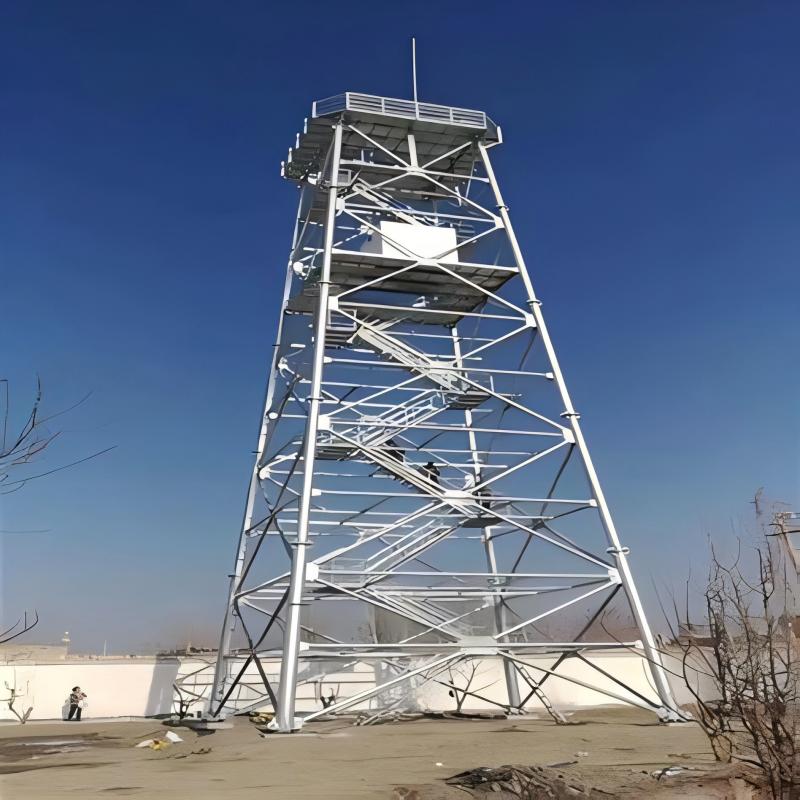

| Parameter | Specification |
|---|---|
| Structure Type | Triangular lattice (ASTM A500 Gr. C steel) |
| Standard Heights | 10m, 15m, 20m, 25m (modular sections) |
| Base Dimensions | 4m × 4m (expandable to 6m × 6m) |
| Payload Capacity | 3,000 kg (including personnel/equipment) |
| Wind Resistance | 200 km/h (with live load) |
| Design Life | 50+ years (ISO 14713) |
| Corrosion Protection | Hot-dip galvanized (85μm) + epoxy topcoat |
Framework:
Primary legs: 150×150×10mm square hollow sections
Diagonal braces: 80×80×6mm angles (K-bracing for seismic zones)
Connections:
Bolted joints (M20 Grade 8.8 bolts) for field assembly
Gusset plates at critical nodes (20mm thickness)
Platforms:
Steel grating floors (40 kN/m² load rating)
1.2m high guardrails (OSHA-compliant)
| Component | Function |
|---|---|
| 360° Cupola | Ballistic glass (NIJ Level II) + retractable shutters |
| Equipment Mounts | Swivel bases for cameras/searchlights |
| Cable Raceways | Internal conduits (Ø100mm) for power/data |
| Climate Control | Insulated walls + HVAC (optional) |
Product Details
_1753339827_WNo_800d522.webp)
_1753339925_WNo_800d800.webp)
_1753340092_WNo_600d450.webp)
Package Reference
_1753340148_WNo_700d525.webp)
_1753340181_WNo_700d472.webp)
_1753340210_WNo_700d525.webp)
Our Advantages:
1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.
6. We are not only manufacturers and suppliers, but also your partners and technical support.
Mature Production Line and Sophisticated Equipment
_1753338424_WNo_900d507.webp)
_1753338452_WNo_500d280.webp)
_1753338477_WNo_900d506.webp)
_1753338510_WNo_800d800.webp)
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
