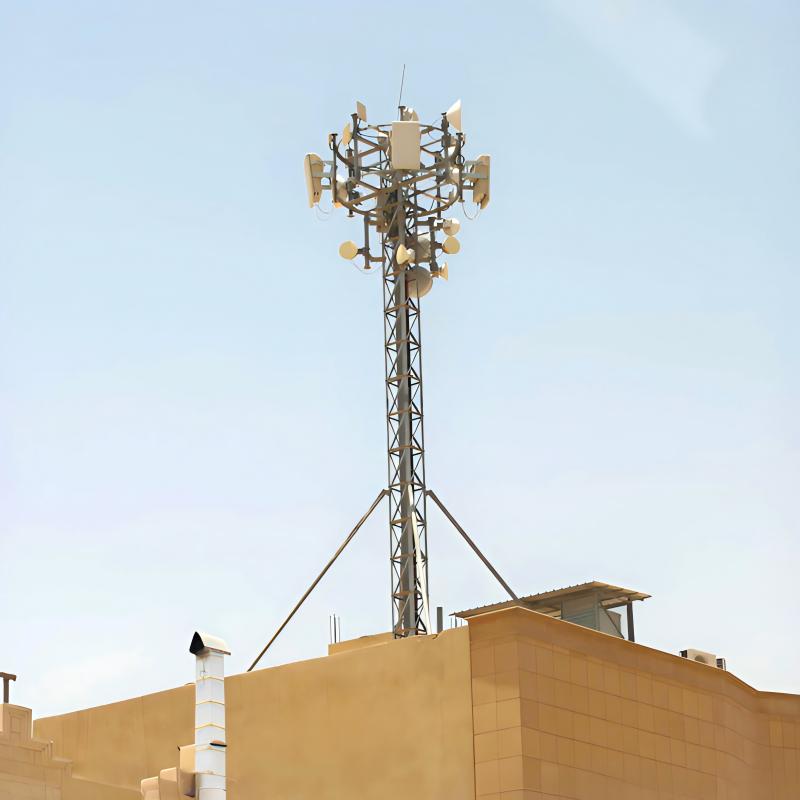

Rooftop lattice steel telecom towers are critical infrastructure for expanding 4G/5G network coverage in urban environments. These structures overcome space constraints by leveraging existing buildings, providing robust support for antennas while minimizing ground footprint. Below is a technical analysis of their design, materials, and deployment.
Description:
Product Name:4G / 5G Roof-top Tower
Type: Telecommunication Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.
Height: 6-20M
Wind Speed: 0--260KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization: ASTM A123/150 1461
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 3,000 Tons Per Month
High-Strength Steel:
Primary material: Q235B/Q345B steel (yield strength: 235–345 MPa), meeting GB/T 700-2006 standards. Hot-rolled angle sections provide uniform stress distribution.
Hot-Dip Galvanizing (HDG): Zinc coating per ASTM A123 (≥85µm thickness) ensures >30-year corrosion resistance in temperatures from -45°C to 45°C.
Table: Technical Specifications
| Parameter | Value | Standard |
|---|---|---|
| Design Height | 5–40 m | YD/T 5131-2005 |
| Wind Resistance | 30 m/s (108 km/h) | GB 50009-2001 |
| Ice Load Capacity | 8 mm radial ice | GB 50009-2001 |
| Seismic Resistance | 8° intensity | GB 50011-2002 |
| Vertical Tolerance | <1/1000 | CECS 80:2006 |
| Grounding Resistance | ≤10 Ω | YD/T 5132-2005 |
Precision Manufacturing:
CNC laser/plasma cutting ensures millimeter-accurate angle sections.
Submerged arc welding (SAW) creates high-integrity joints, validated via ultrasonic testing (UT).

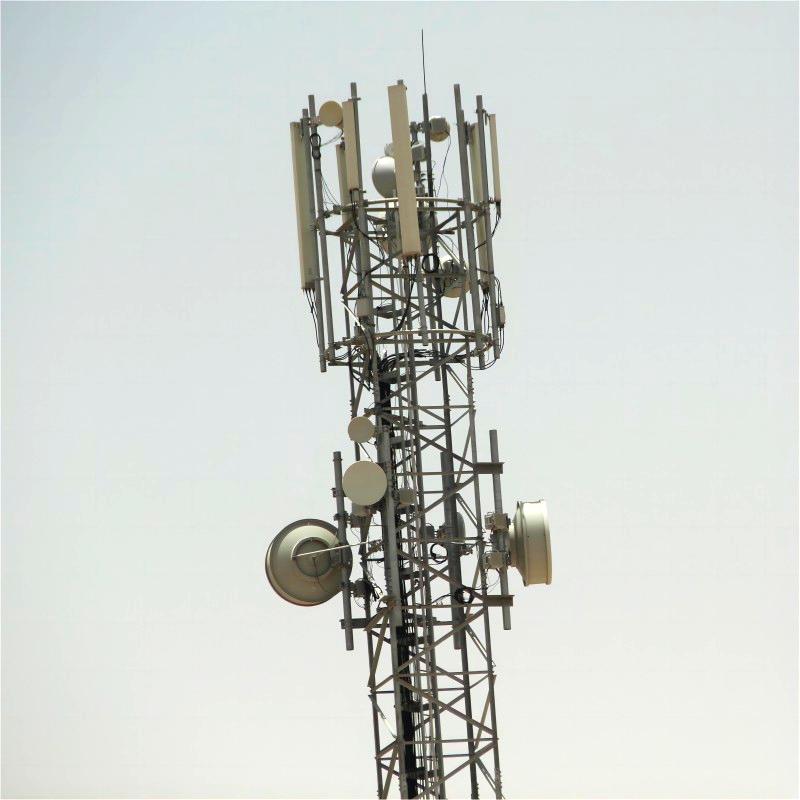

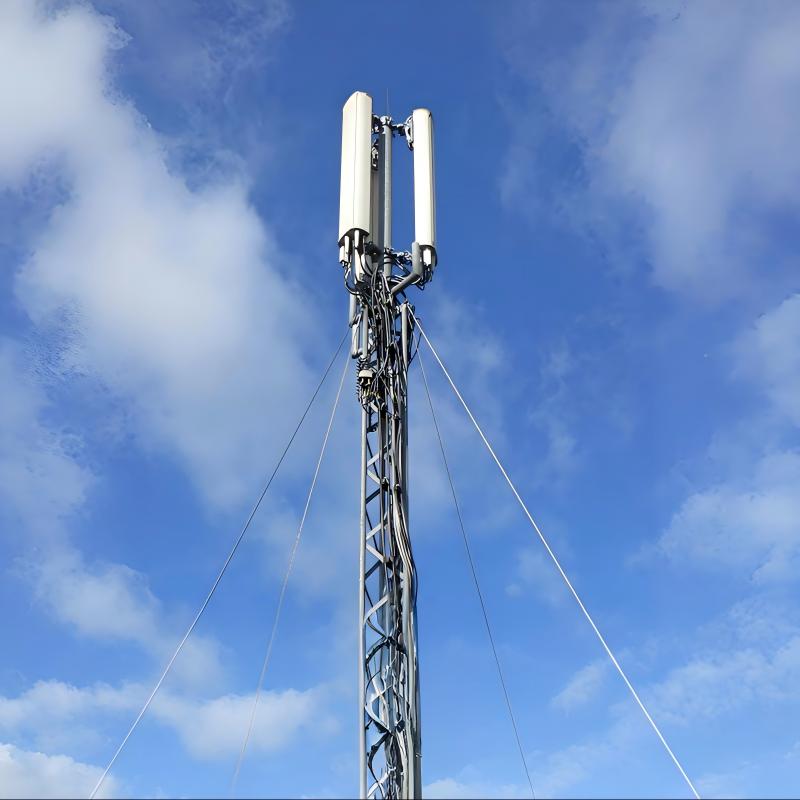

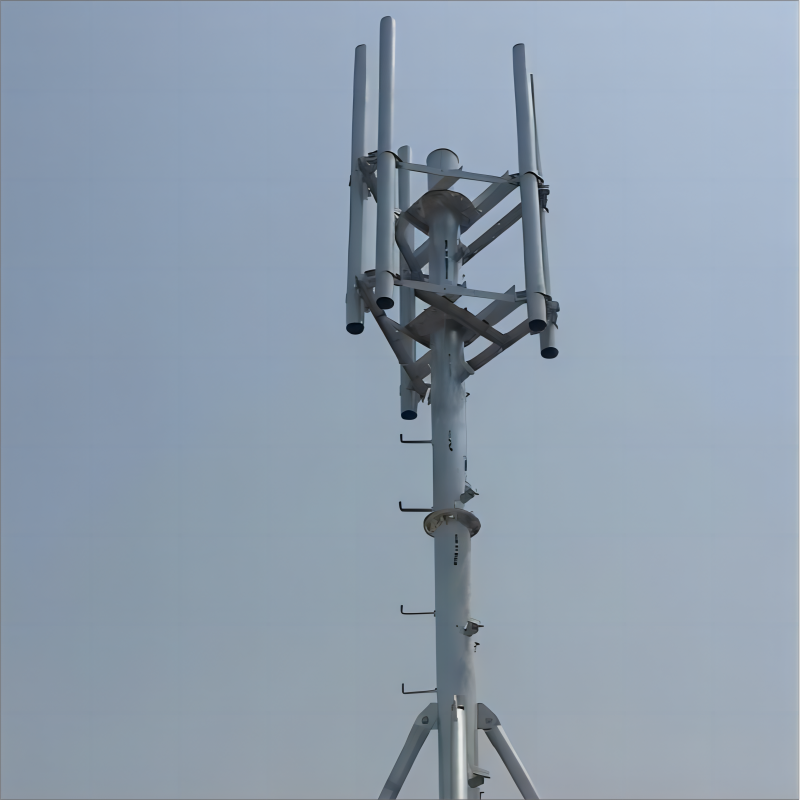

Product Details:
Applications & Deployment
Urban Sites:
High-Rise Buildings: Extend coverage above obstacles; integrate lightning rods for building protection.
Historic Districts: Lattice aesthetics blend better than monopoles in sensitive zones.
Challenging Terrain:
Mountainous/hilly regions: Towers on elevated buildings bypass line-of-sight barriers.
Coastal zones: HDG resists salt spray corrosion.
Multi-Operator Use:
Platforms accommodate 3+ carriers, each mounting 6–12 antennas per sector for 4G/5G bands.
_1754961222_WNo_800d800.webp)
(1)_1754961264_WNo_800d800.webp)
