| Code: | XH-T03 |
| Categories: | Telecommunication Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |
Core Design:

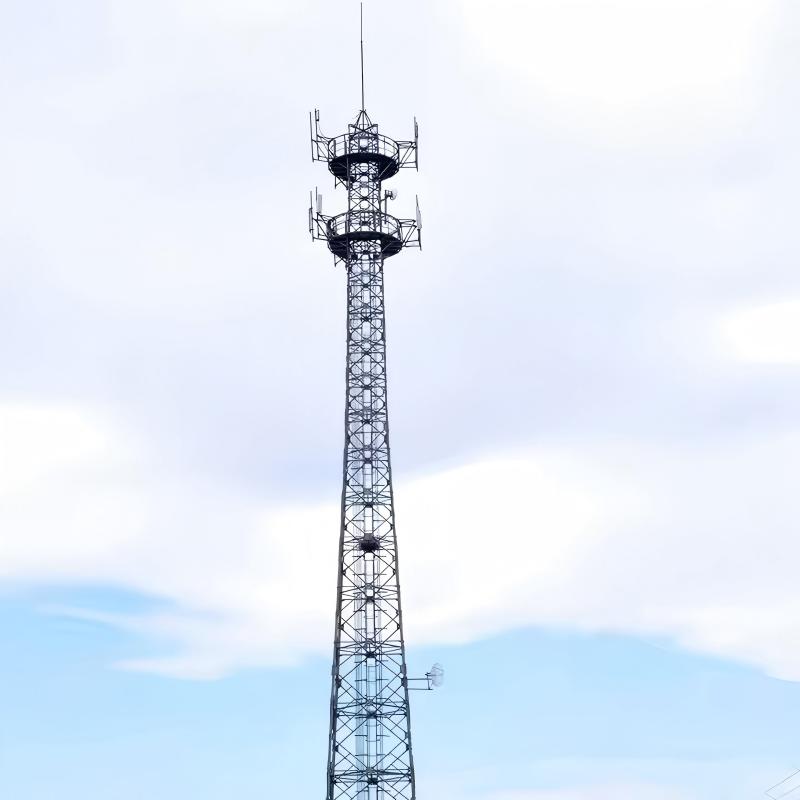

Legs: 4 hot-dip galvanized tubular steel legs forming a square/rectangular base.
Height: 30–80 meters (customizable).
Load Capacity: Supports 8–15 microwave dishes + cellular antennas + RRUs.

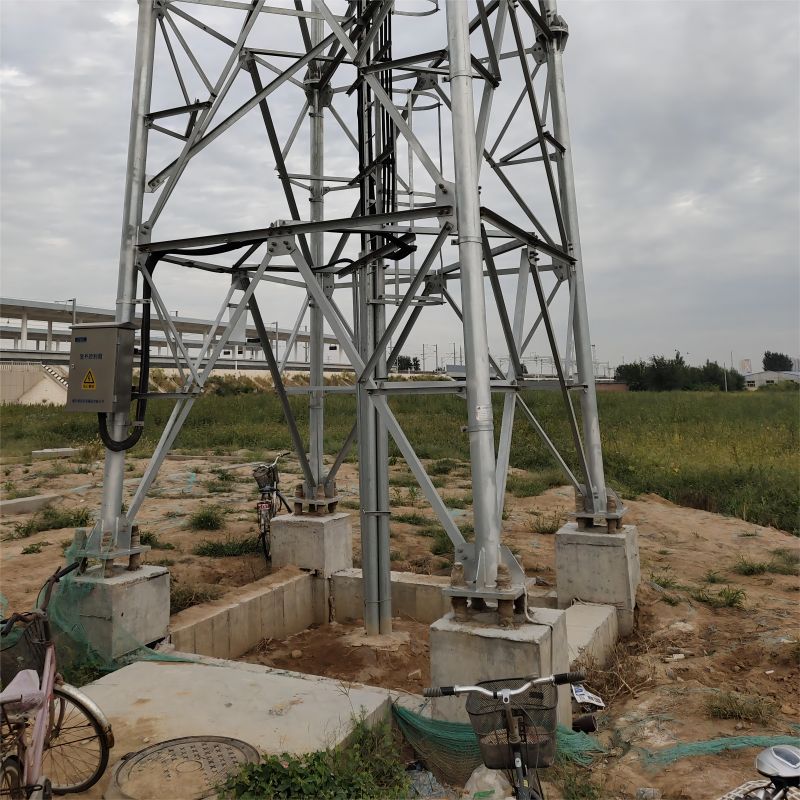

Foundation: Reinforced concrete raft/pile base (5–8m depth) with anchor bolts.
Wind/Ice Resilience: Designed for 200 km/h winds + 25mm radial ice (site-specific).
Key Components:
Platforms: Cantilevered maintenance platforms at 15–20m intervals.

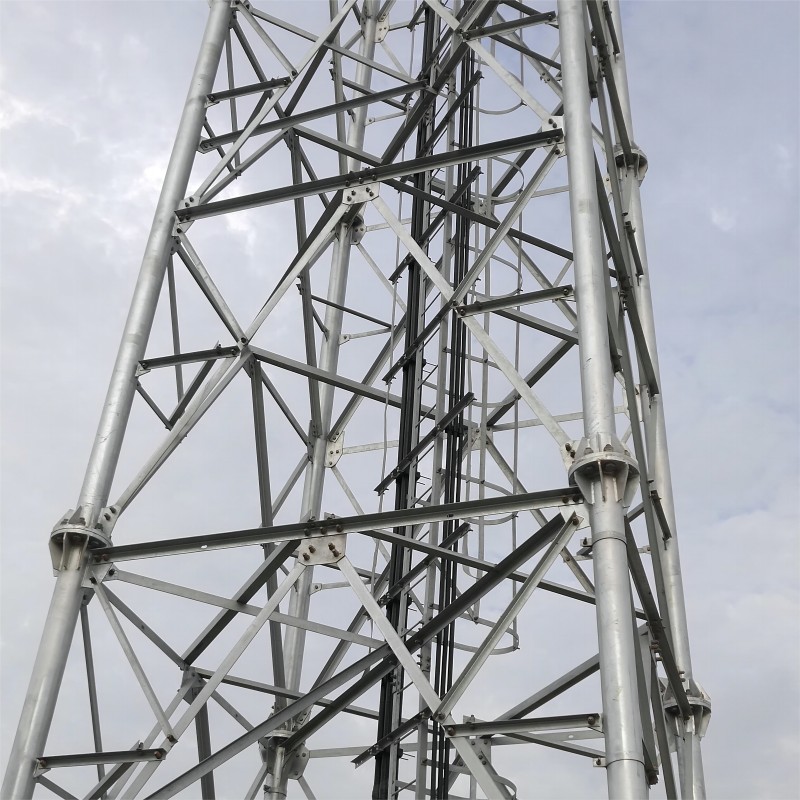

Bracing: Horizontal/redundant diagonal braces between legs.
Ladder System: External vertical ladder with safety climb arrestors.
Waveguide Trays: Dedicated cable management for microwave/fiber.
Product Details:
_1750751112_WNo_800d800.webp)
Customized Color
_1750751291_WNo_800d481.webp)
_1750751318_WNo_1200d900.webp)
_1750751352_WNo_800d600.webp)

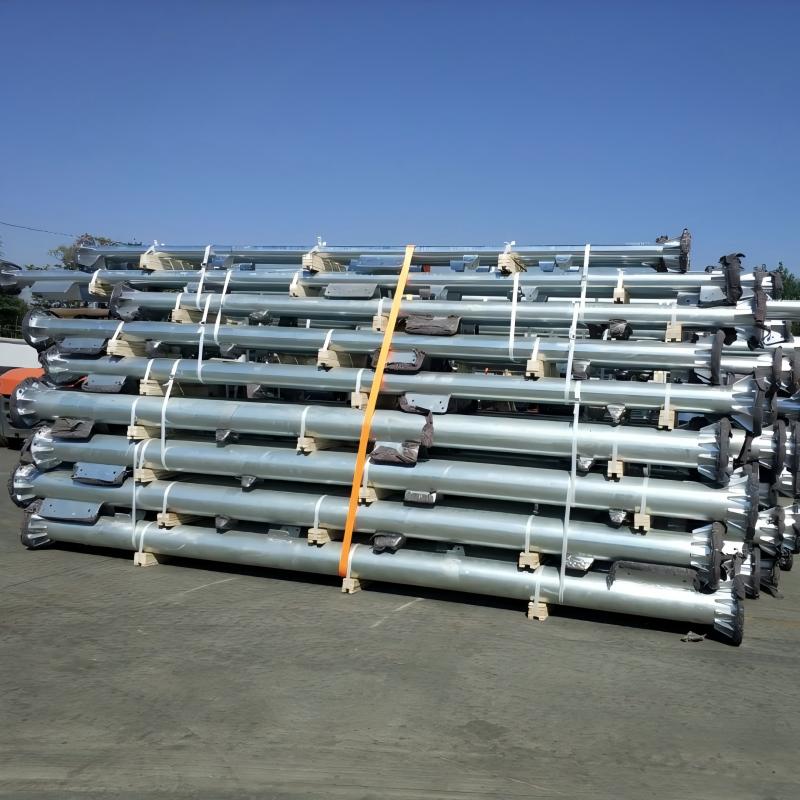

Package Reference:
_1750751485_WNo_700d450.webp)
_1750751520_WNo_700d472.webp)
_1750751553_WNo_700d422.webp)
| Feature | Benefit |
|---|---|
| Enhanced Stability | 4-leg base distributes loads evenly; outperforms 3-leg in high-wind/seismic zones |
| Heavy Payload Support | Ideal for dense microwave links (backhaul) + multi-operator antenna arrays |
| Modular Construction | Bolt-connected tubular sections enable rapid assembly/disassembly |
| Low Maintenance | Galvanized steel resists corrosion; accessible platforms simplify inspections |
| Foundation Flexibility | Adaptable to uneven terrain (e.g., hillsides, rocky soil) |
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
