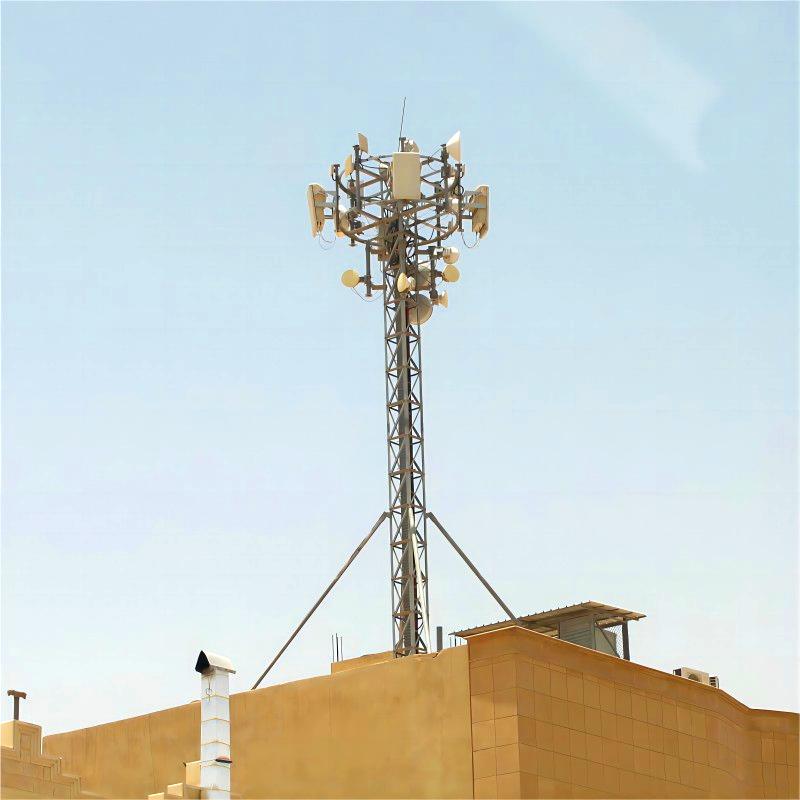

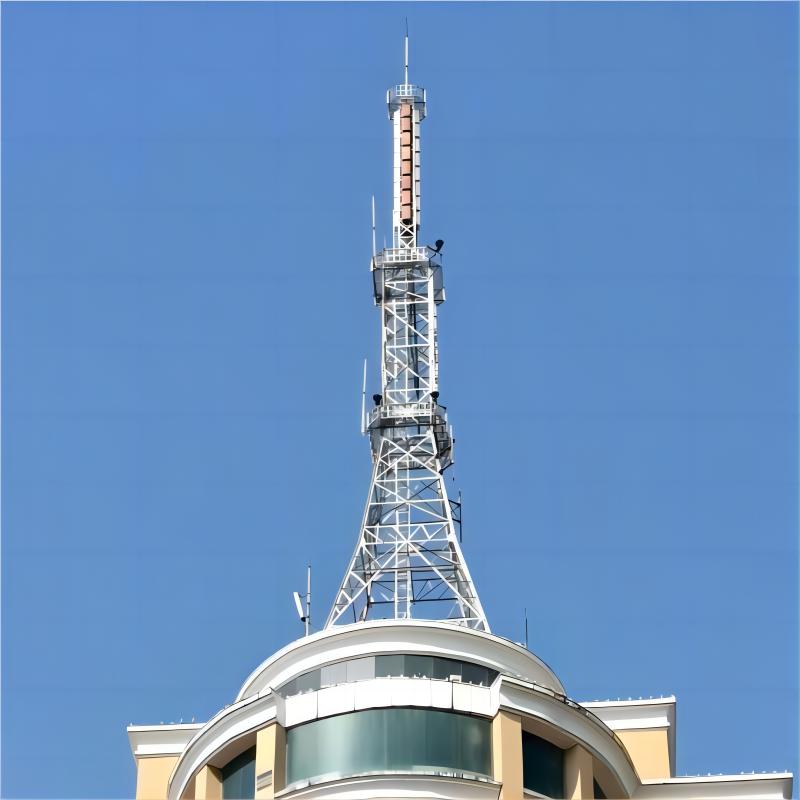

A Roof-Top Antenna Telecommunication Tower is a structure installed on building rooftops to host antennas for cellular, microwave, public safety, or IoT networks. It optimizes coverage in dense urban areas where ground space is limited, leveraging building height for line-of-sight propagation.
| Type | Structure | Max Height | Typical Load Capacity |
|---|---|---|---|
| Monopole | Single tubular steel pole | 10–20m | 500–1,500 kg |
| Guyed Mast | Vertical mast with tensioned cables | 15–30m | 300–800 kg |

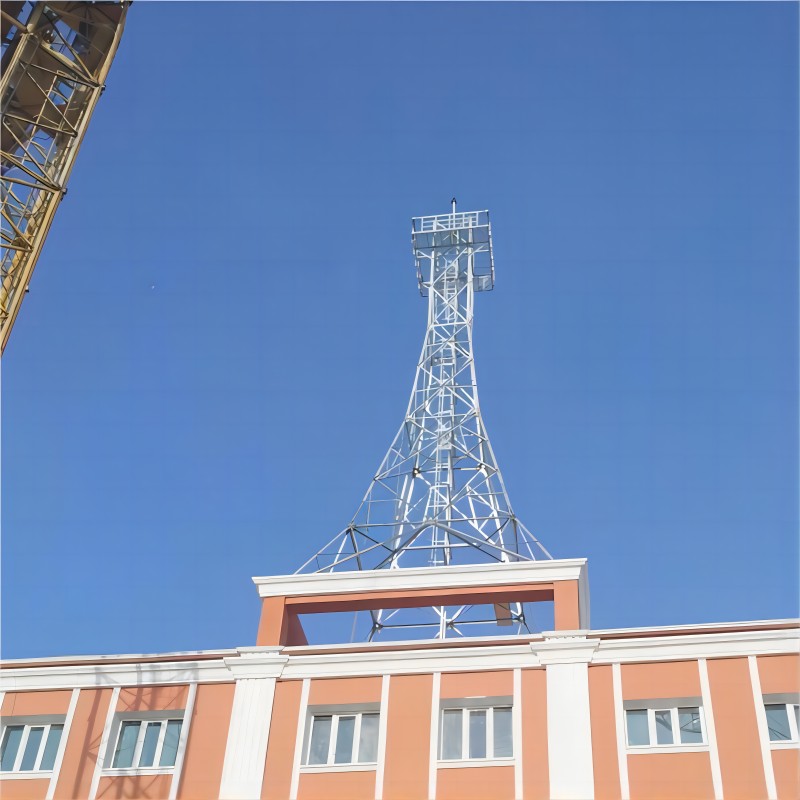

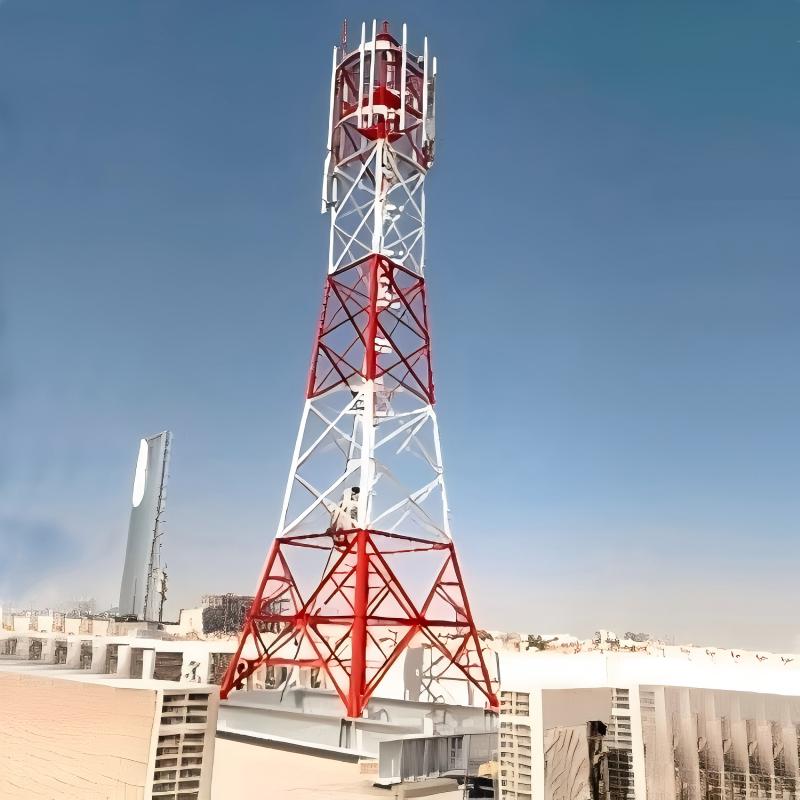

| Lattice Tower | Angular steel framework (rare on roofs) | 6–12m | 1,000–3,000 kg |
| Stealth Solutions | Camouflaged as chimneys/vents | 3–8m | 100–400 kg |
Typical Rooftop Tower Payload:
Antennas: 3x 5G mMIMO (32T32R, 3.5GHz)
RRUs: 3x 5kg remote radio units
Microwave: 0.6m dish (E-band, 80Gbps)
Auxiliary: GPS sync unit, IoT sensors
Product Details:
_1751262263_WNo_800d800.webp)
Building: 40-story concrete structure
Tower: 12m monopole with 3-sector 5G
Key Metrics:
Wind rating: 145 mph
Capacity: 12,000 simultaneous users
Coverage radius: 1.2 km urban
_1751262548_WNo_800d800.webp)
Package Reference
_1751262748_WNo_700d525.webp)
_1751262786_WNo_700d525.webp)
