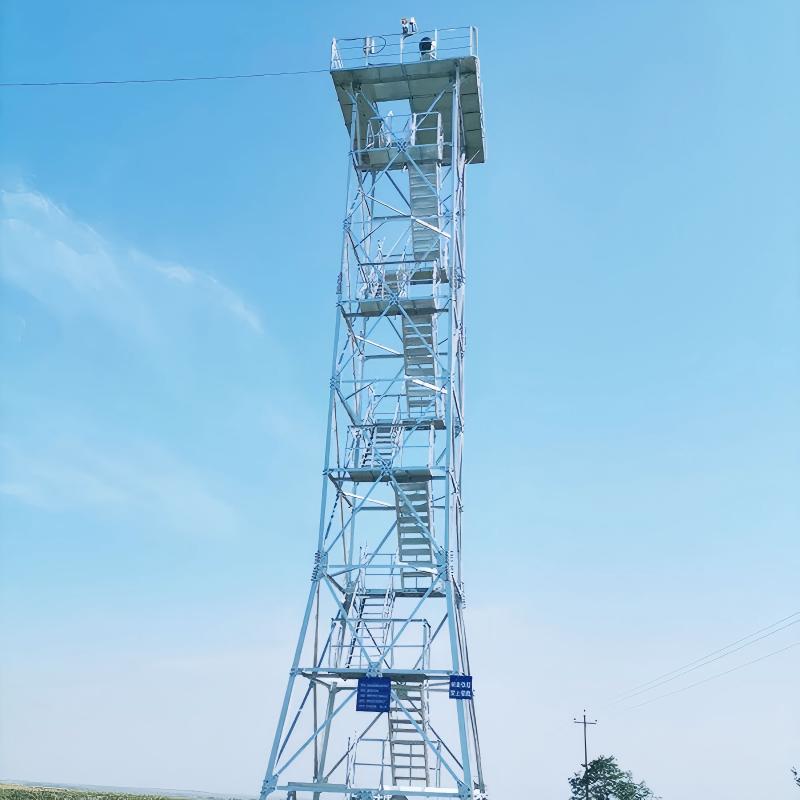

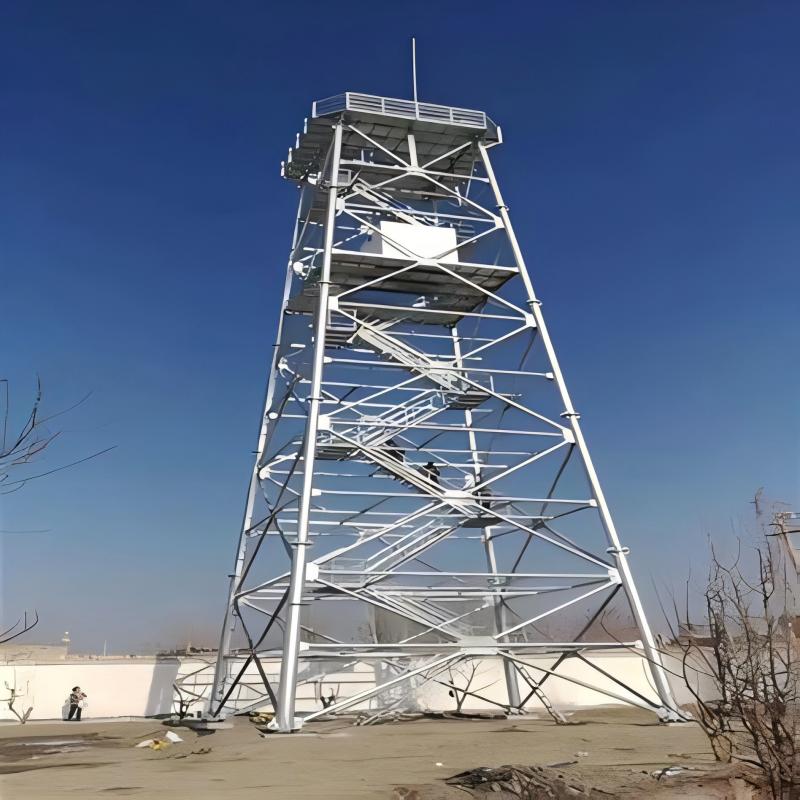

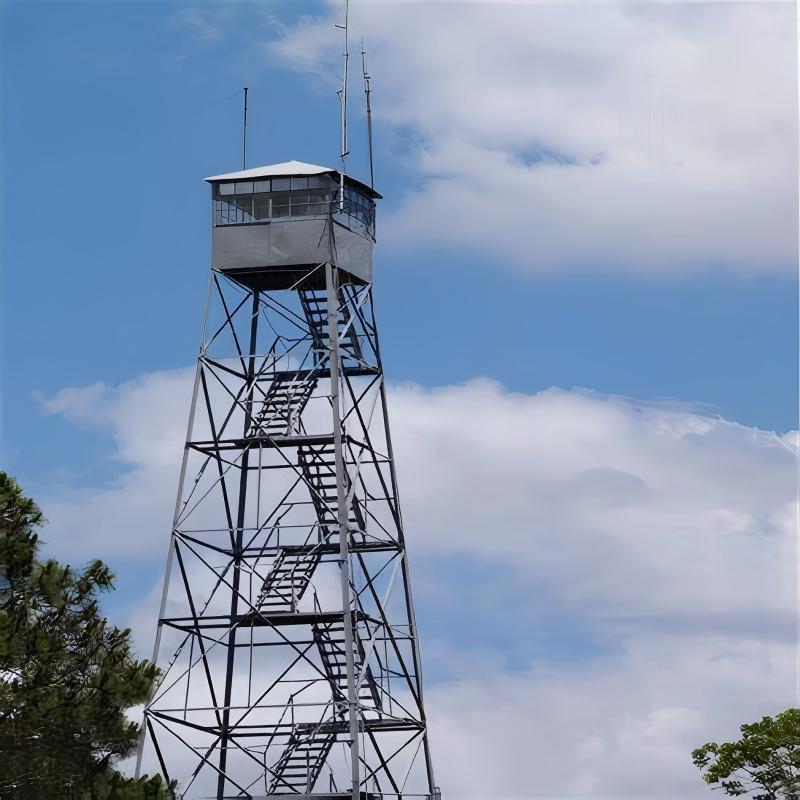

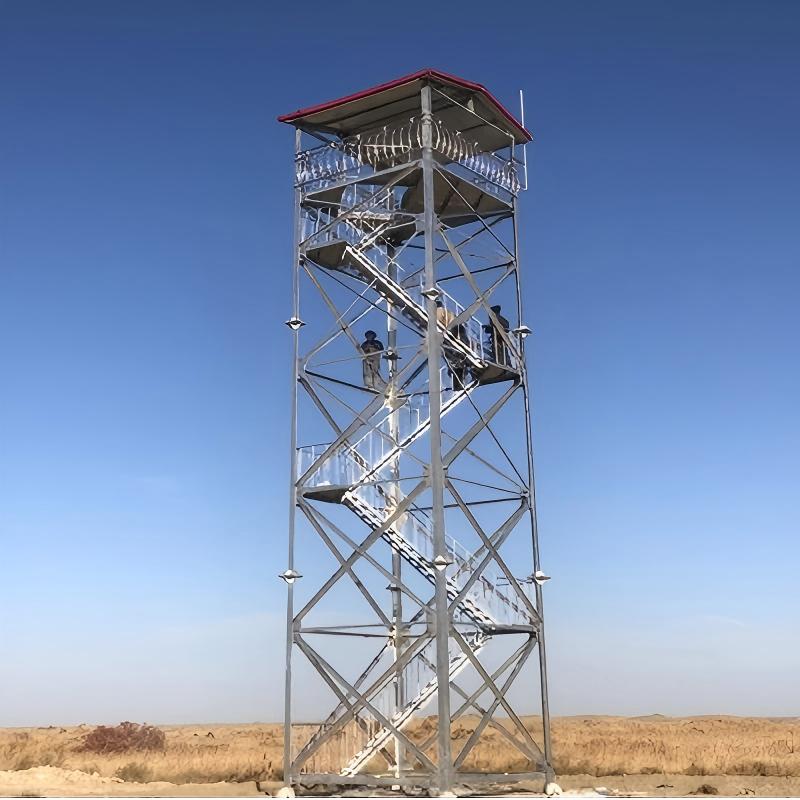

Definition: A modular, hot-dip galvanized steel lattice tower engineered for 360° visibility, weapon deployment, surveillance integration, and extended occupancy in border security, prisons, and critical infrastructure protection.
| Parameter | Specification |
|---|---|
| Structure Type | Triangular lattice (ASTM A500 Gr. C steel) |
| Standard Heights | 12m, 18m, 24m, 30m (modular sections) |
| Footprint | 4m × 4m base (expandable) |
| Occupancy | 4–8 personnel + equipment |
| Wind Rating | 200 km/h (with live load) |
| Design Life | 50+ years (ISO 14713) |
_1753337513_WNo_600d450.webp)
Bracing System:
Warren-type triangulation (60° angles)
Redundant K-bracing at stress points
Member Specifications:
Legs: 150×150×10mm square hollow sections
Braces: 80×80×6mm angles
Platforms: Grating mesh (40KN/m² load capacity)
| Level | Function | Key Features |
|---|---|---|
| Base Shelter | Command center/armory |
Bullet-resistant Kevlar panels (NIJ Level III) HVAC + EMI-shielded comms |
| Mid Platform | Surveillance/weapon station |
Swivel-mounted weapon rails (50 cal compatible) Pan-tilt-zoom camera mounts |
| Top Cupola | 360° observation |
8mm ballistic glass (120° overlapping arcs) Retractable blast shutters |
| Crown Platform | Long-range sensors |
Radar/AIS antenna mounts Weather station integration |
Product Detail
_1753337863_WNo_800d522.webp)
_1753337951_WNo_720d576.webp)
Our Pros:
1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.
6. We are not only manufacturers and suppliers, but also your partners and technical support.
Mature Production Line and Sophisticated Equipment
_1753338424_WNo_900d507.webp)
_1753338452_WNo_500d280.webp)
_1753338477_WNo_900d506.webp)
_1753338510_WNo_800d800.webp)
Package Reference
_1753338612_WNo_700d525.webp)
_1753338664_WNo_700d525.webp)
_1753338702_WNo_600d450.webp)
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
