Guyed Towers are slender, vertical structures stabilized by high-tension steel cables (guy wires) anchored to the ground. Their design leverages tensioned support systems to achieve extreme heights (60–300m+) with minimal material use, making them ideal for wide-area coverage where land is abundant but budget is constrained.

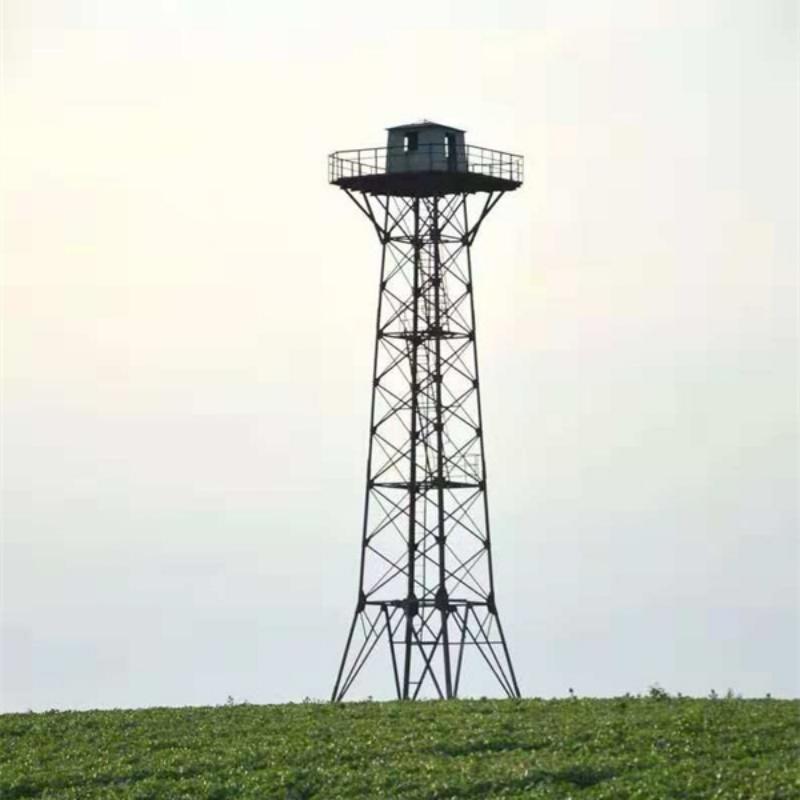

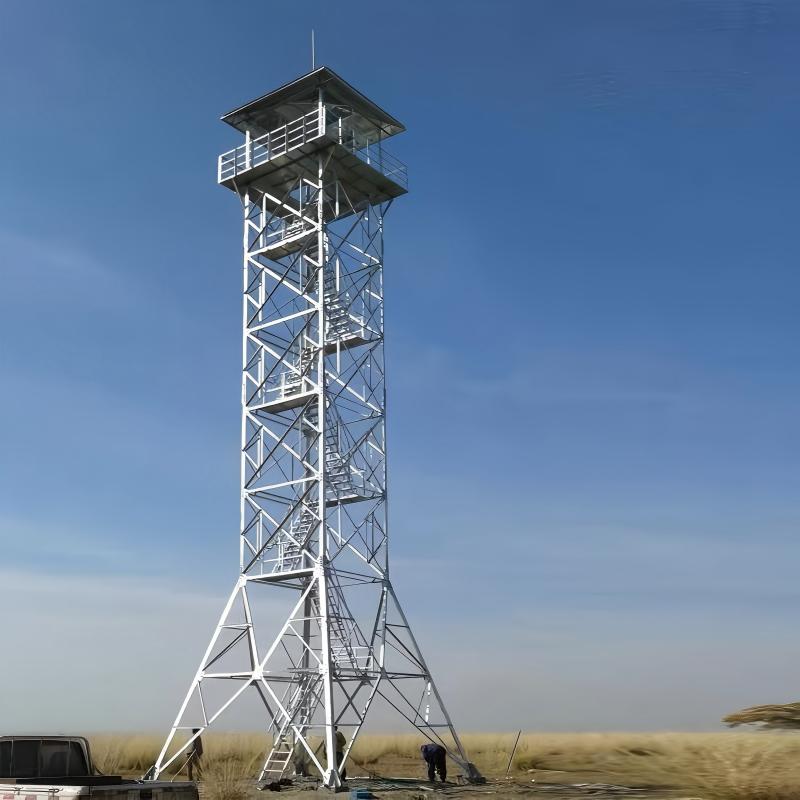

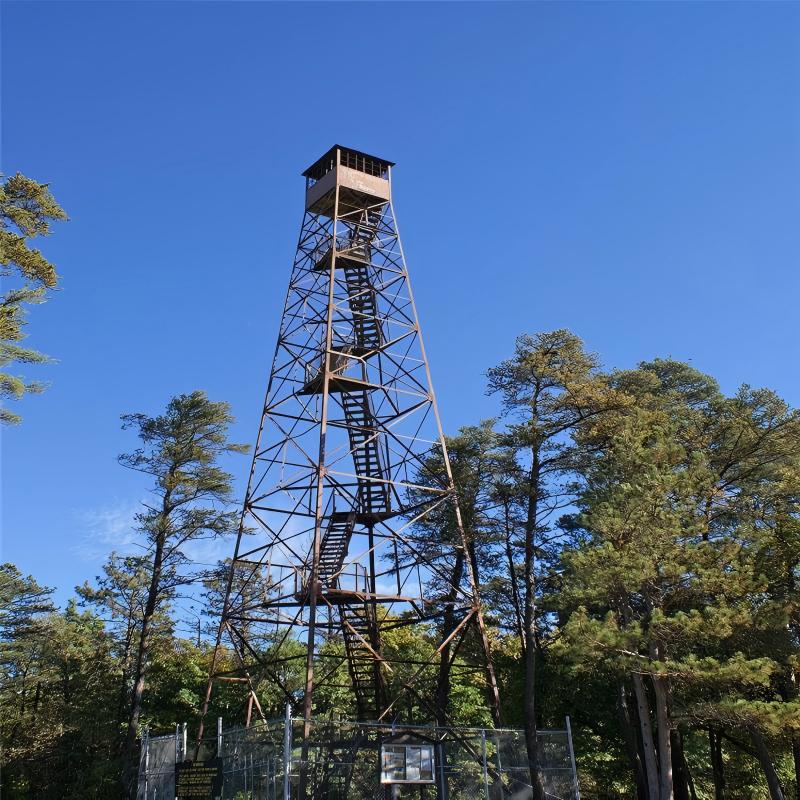

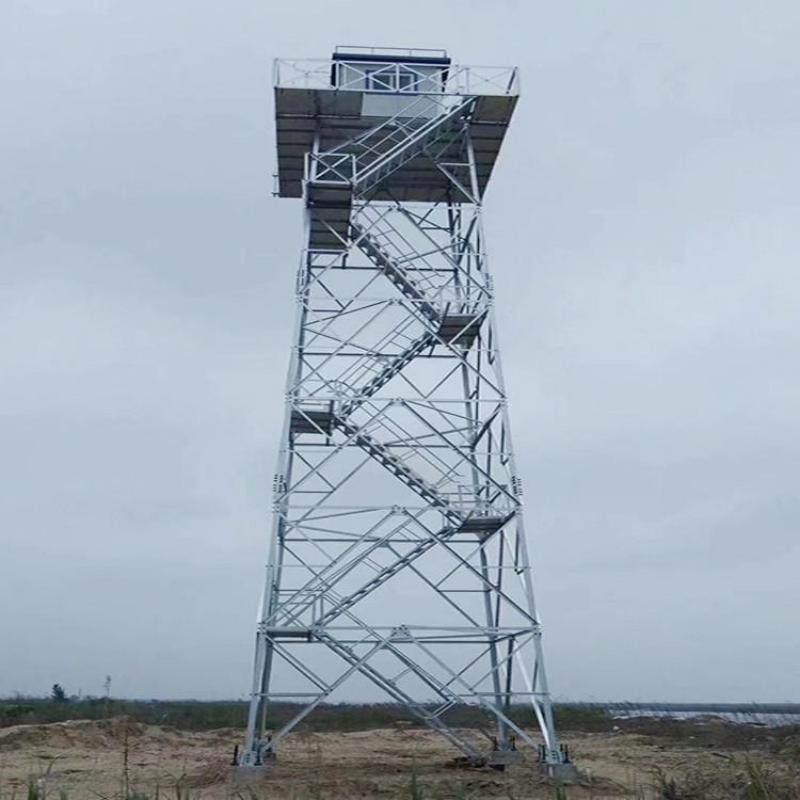

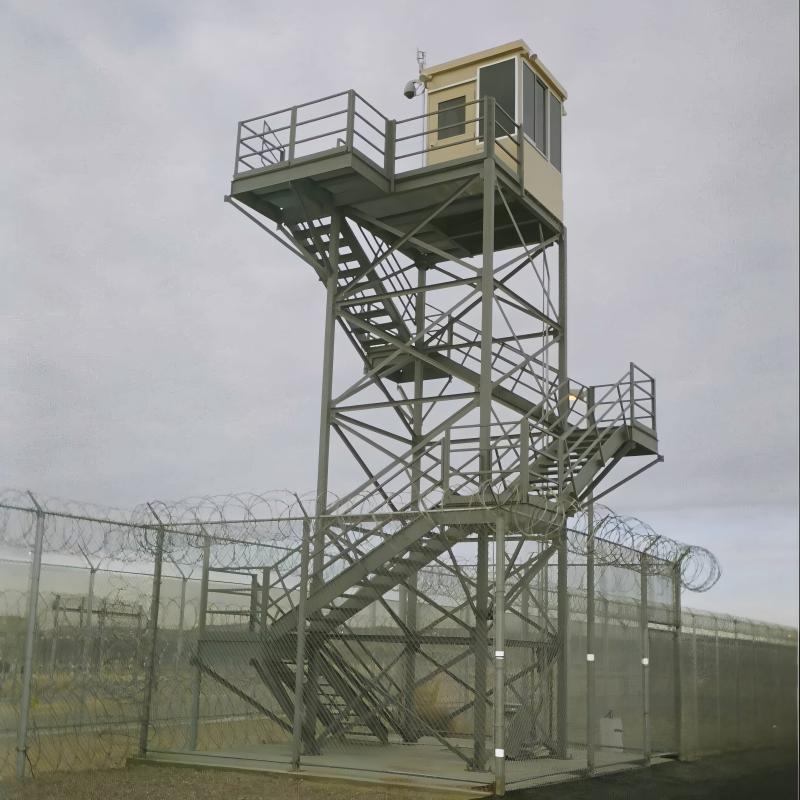

| Product Name | Observation/ Watch Guard Tower |
| Type | Observation Guard Tower |
| Height | 10-60M |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc. |
| Wind Speed | 0–330 KM/H |
| Design Standard | TIA/EIA‑222‑G/F/H |
| Material |
GB/T700: Q235B GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM 572, GR50, GR65, SS400 EN 10025: S235JR, S235JO, S235JZ EN 10025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008, SGS COC |
| Galvanized | Hot‑dipped Galvanized |
| Galvanization Standard | ASTM A123 |
| Nuts & Bolts | Grade 8.8 |
| Welding Standard | AWS D1.1 |
| Welding Method | CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW) |
| Bolts & Nuts Galvanization Standard | ISO 1461 or ASTM A153 |
| Life Time | More than 25 years |
| Supply Ability | 2,000 MT per month |
Engineering Advantages
| Feature | Benefit |
|---|---|
| Height-to-Cost Ratio | 60% cheaper than self-supporting towers at >150m heights |
| Wind Resilience | Guy wires absorb lateral forces; sway tolerance up to 2° |
| Payload Capacity | Supports heavy long-wave antennas (AM radio) + microwave dishes |
| Terrain Flexibility | Anchors adapt to uneven ground; minimal site grading |
| Deployment Speed | Erection in 3–10 days (vs. weeks for lattice towers) |
| Parameter | Specification |
|---|---|
| Tower Mast |
• Height: 60–300m (200–1,000 ft) • Material: Galvanized steel tubes/sections (ASTM A500) • Profile: Triangular/quadrangular lattice; tubular monopole • Weight: 5–50 tons |
| Guy Wires |
• Quantity: 3–4 sets (typically 3–5 wires/set) • Material: EHS (Extra High Strength) steel (1,550+ MPa yield) • Diameter: 12–36mm • Tension: 10–20% of breaking strength |
| Anchors |
• Type: Concrete block (deadman), screw-in, or rock anchors • Size: 3–12m³ concrete / 2m deep helix • Load Capacity: 50–500 kN per anchor |
| Foundation |
• Central Pad: Reinforced concrete (5m x 5m x 3m) • Anchor Spacing: 40–80% of tower height |
Product Details:
_1750919906_WNo_800d800.webp)
_1750919939_WNo_800d800.webp)
_1750919969_WNo_800d800.webp)
| Challenge | Solution |
|---|---|
| Aircraft Collision Risk | FAA lighting (L-864) + orange/white paint |
| Anchors in Rock | Rock bolts + grouted tendons |
| High-Tension Monitoring | IoT load cells on critical guys |
| "Dead Man Zone" Safety | 30° exclusion zone during high winds |
Package Reference:
_1750920147_WNo_1200d900.webp)
_1750920188_WNo_700d422.webp)
_1750920304_WNo_700d525.webp)
