Core Material: Hot-dip galvanized steel (Q235B) ensures superior corrosion resistance, especially in coastal or high-humidity regions. The HDG coating thickness exceeds 86 μm, providing a 50-year service life with minimal maintenance.

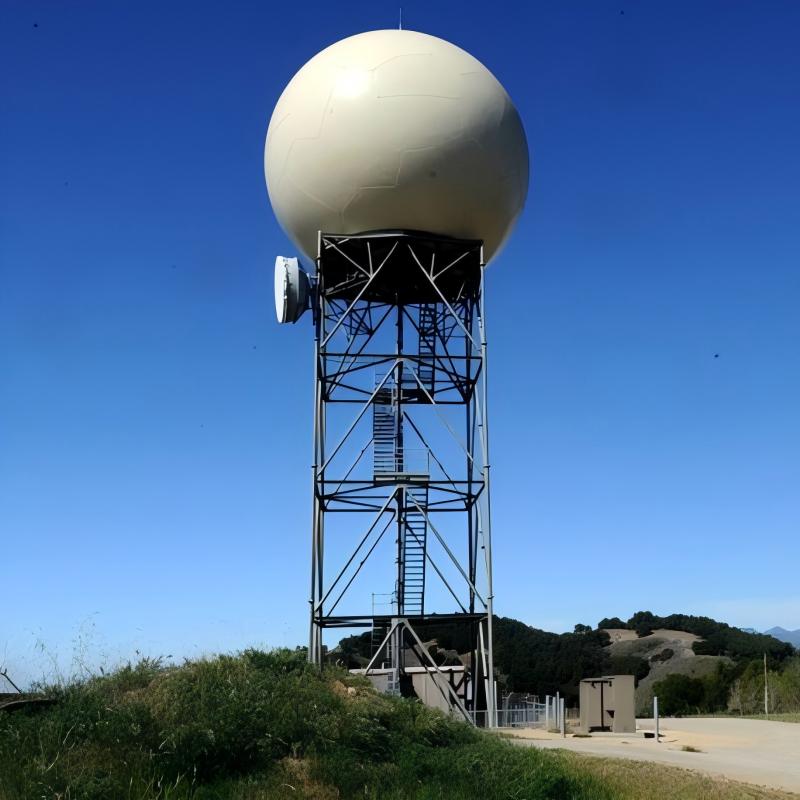

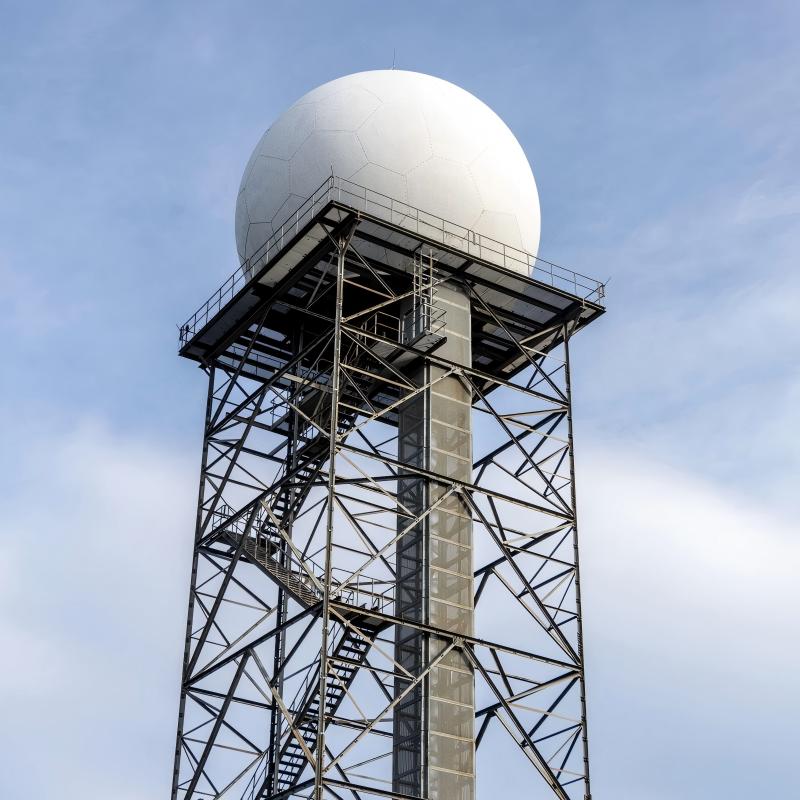

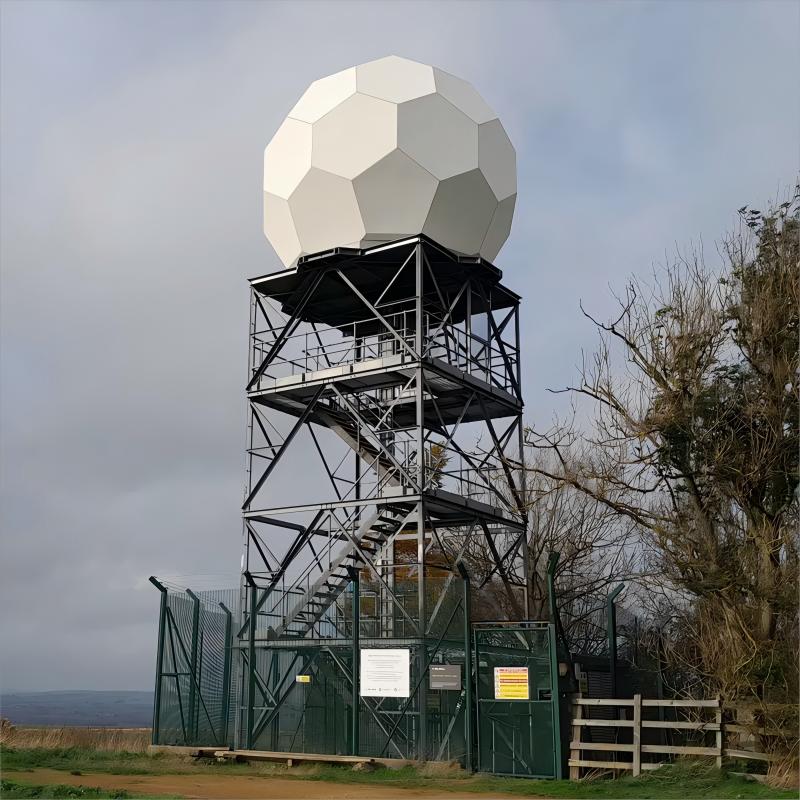

Height & Load Capacity: Adjustable heights (30–40 m) with 1.5–2.5-ton payload capacity at the top platform. Towers support radar antennas, meteorological sensors, and communication relays.
Modular Construction: Segmented sections enable rapid assembly (≤3 hours) via flange/bolt connections. Towers can be extended from 10 m to 40 m based on terrain requirements.
Foundation & Stability: Reinforced concrete bases with seismic resilience up to Magnitude 8 and wind resistance up to Level 12 (≥117 km/h). Triangulated or quadrupod designs prevent torsion in storms.
_1755152706_WNo_800d600.webp)
_1755152733_WNo_600d450.webp)
_1755152755_WNo_600d450.webp)
Extreme Climate Adaptation:
Operational range: -40°C to +70°C, with anti-icing design for 5–7 mm ice accretion.
Salt spray/fog resistance via sealed conduits and GFRP cladding.
Lightning & EMI Protection:
Multi-point grounding systems using copper-core down-conductors (≥50 mm²).
Electromagnetic shielding for cables/waveguides and SPDs (Surge Protective Devices) on power/data lines.

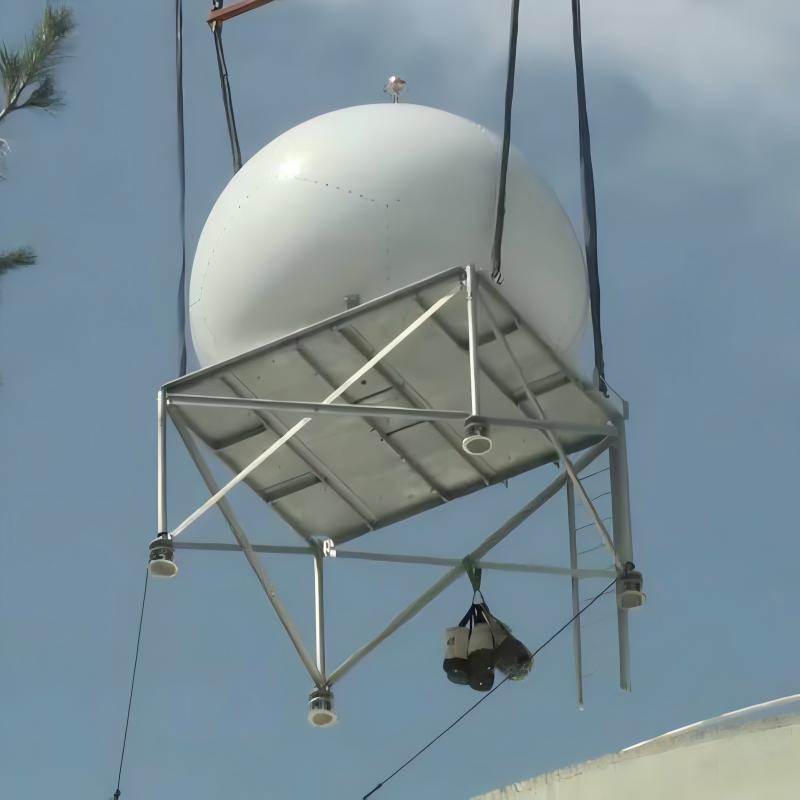

Rapid Erection: Mobile hydraulic lifts enable full 40-m deployment in ≤72 hours, critical for disaster response.
Cost Structure:
40-m tower: ~¥254,100 (ex-factory, excluding sensors).
30-m tower: ~¥222,600, including installation and 5-year warranty.
Logistics: Modular components allow transport via standard trucks; guyed designs reduce foundation costs in rocky terrain.
Hot-dip Galvanization:
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities. The processing is strictly according to ASTM A123 standard.
Packaging Reference
_1752646487_WNo_1200d900.webp)
_1752646529_WNo_700d472.webp)
_1752646564_WNo_700d459.webp)
_1752646610_WNo_600d450.webp)
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
