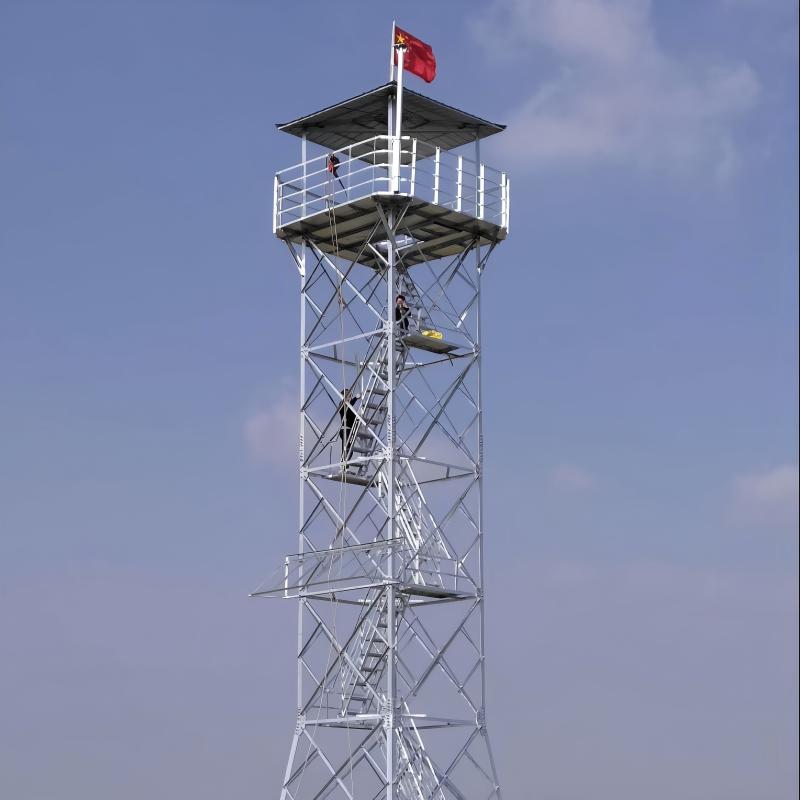

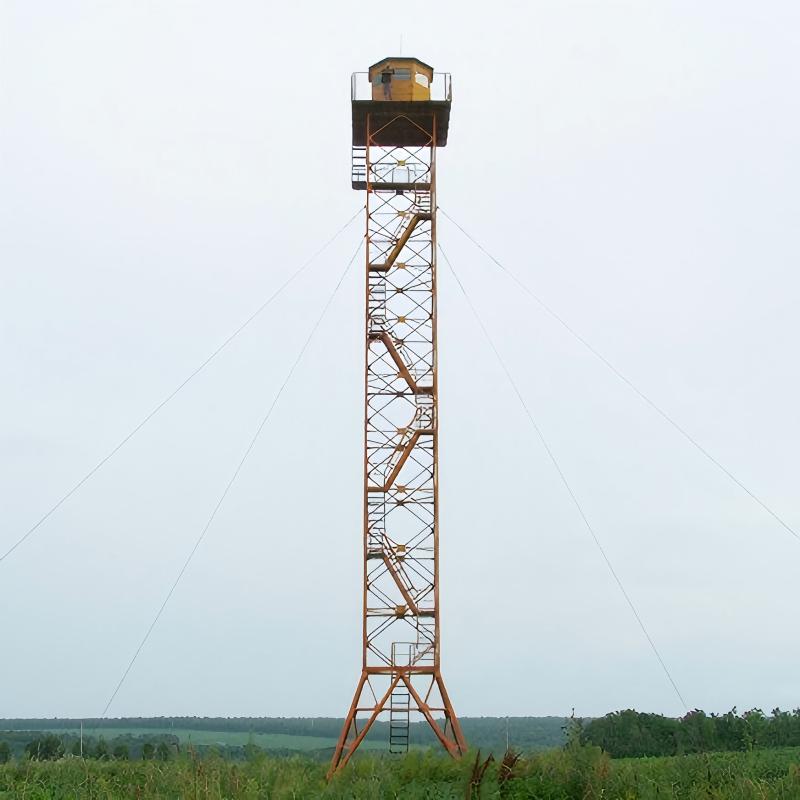

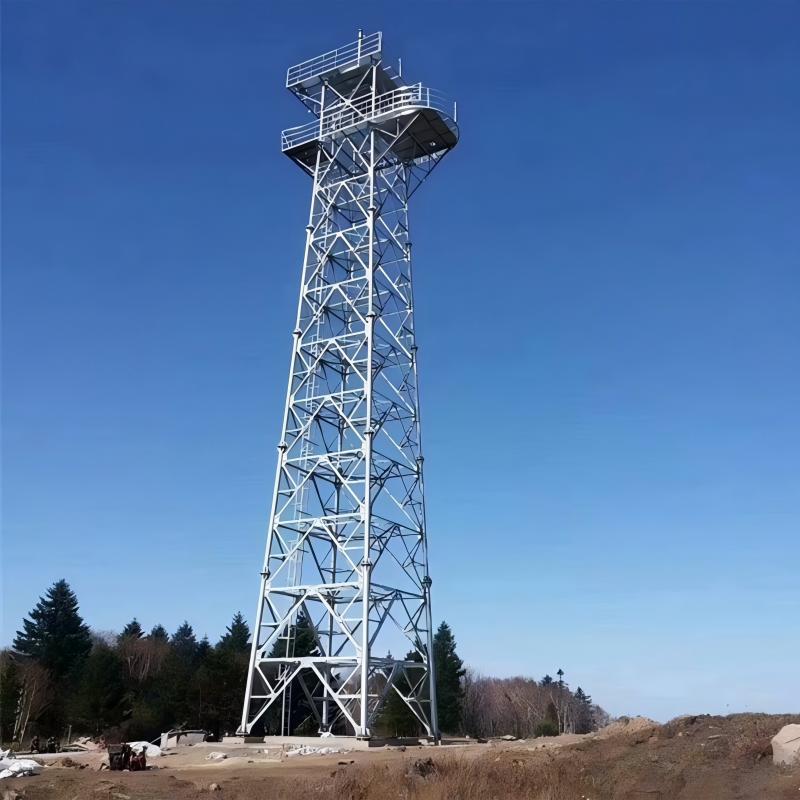

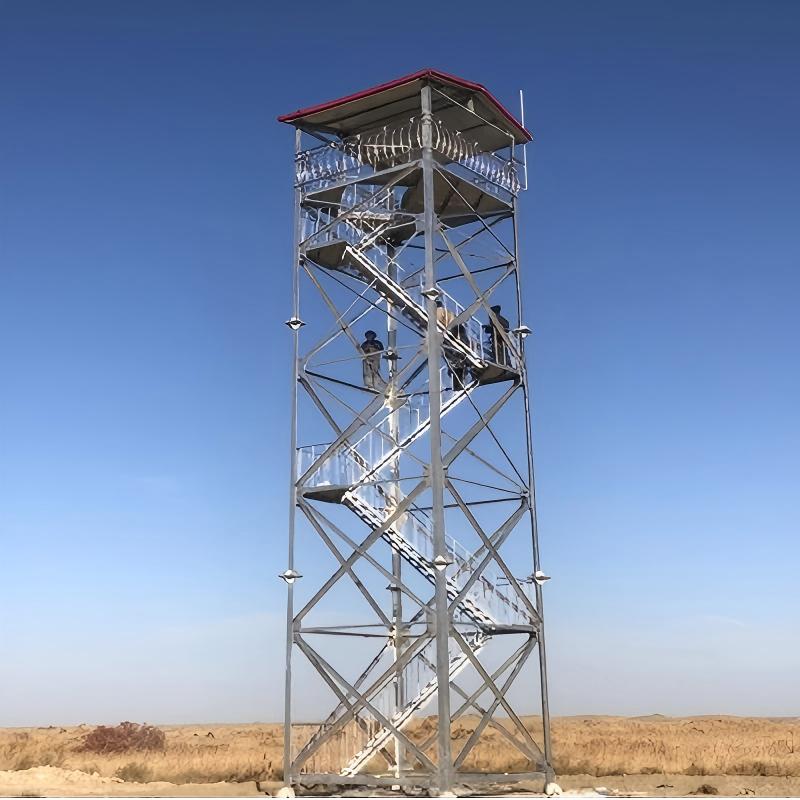

A Galvanized Security Guard Tower is a prefabricated, elevated observation structure made from hot-dip galvanized steel. Designed for 24/7 manned surveillance, these towers provide unobstructed sightlines for perimeter security, critical infrastructure protection, and crowd control. Key applications include prisons, border checkpoints, industrial sites, and event security.
| Parameter | Specification |
|---|---|
| Dimensions | 3m×3m base × 6–12m height |
| Weight Capacity | 6–10 personnel + 500kg equipment |
| Materials | ASTM A123 hot-dip galvanized steel (zinc coating: 85–100μm) |
| Wind Rating | 150 km/h (93 mph) operational; 200 km/h (124 mph) survival |
| Access | Internal stairwell (45° incline) or vertical ladder |
| Floor Area | 9–15m² (with 360° window coverage) |
| Operating Temp | -40°C to +55°C |
Galvanization Process:
Steel immersion in 450°C molten zinc (coating adhesion: 3,800 psi)
50-year rust prevention (ISO 1461 compliant)
Additional Protection:
Powder-coated finish (RAL 7016 gray)
Sacrificial zinc anodes at ground contact points
Foundation Options:
Concrete piers (1.5m depth)
Mobile skid base (for relocation)
Anti-Sway System:
Cross-braced leg design
Tuned mass dampers (for wind/occupant motion)
Fall Protection:
OSHA-compliant guardrails (1.2m height)
Self-closing safety gates
Ballistic Resistance:
Optional NIJ Level III steel plating (stops 7.62×51mm rounds)
Blast Mitigation:
Energy-absorbing floor mounts (DIN EN 1317-2)
Climate Control:
HVAC pre-wiring (-30°C to +55°C operation)
Product Details:
_1751350960_WNo_800d800.webp)
(1)_1751351002_WNo_800d800.webp)
_1751351034_WNo_800d522.webp)
Power Supply:
Solar hybrid option: 1.5kW panels + 48V LiFePO₄ battery (72h backup)
AI Surveillance:
Edge-computing NVR with object detection (e.g., drones, trespassers)
Tactical Features:
Gun lockers, tear gas dispensers, PA system (125dB)
| Type | Pros | Use Cases |
|---|---|---|
| Fixed Tower | Maximum stability | Prisons, borders, power plants |
| Mobile Trailer | Relocatable in <2hrs | Event security, construction sites |
| Roof-Mounted | No ground footprint | Warehouses, ports |
Package Reference
_1751351248_WNo_600d450.webp)
_1751351274_WNo_1200d900.webp)
_1751351316_WNo_700d459.webp)
