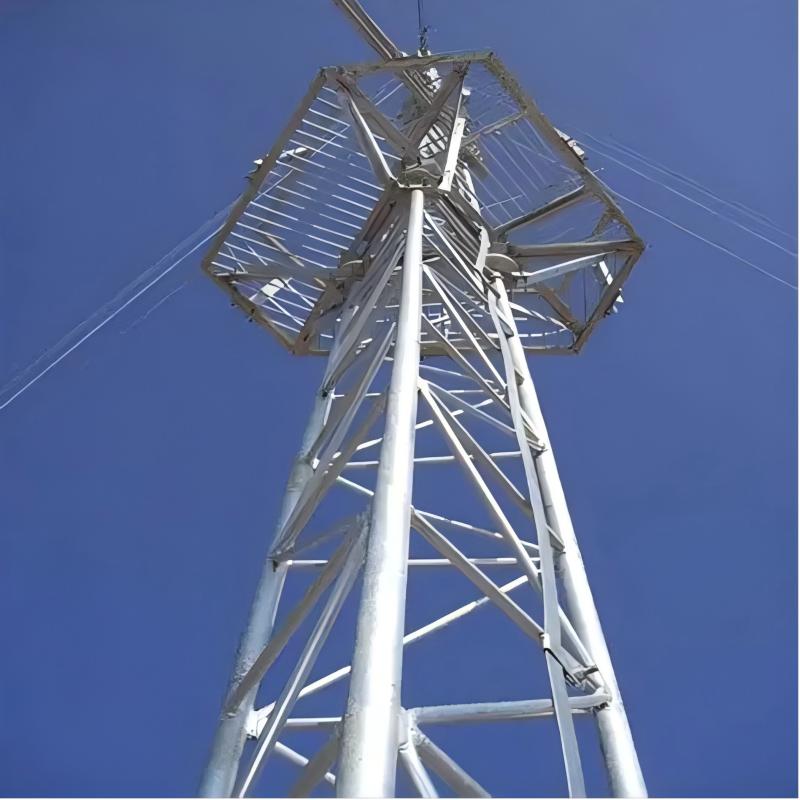

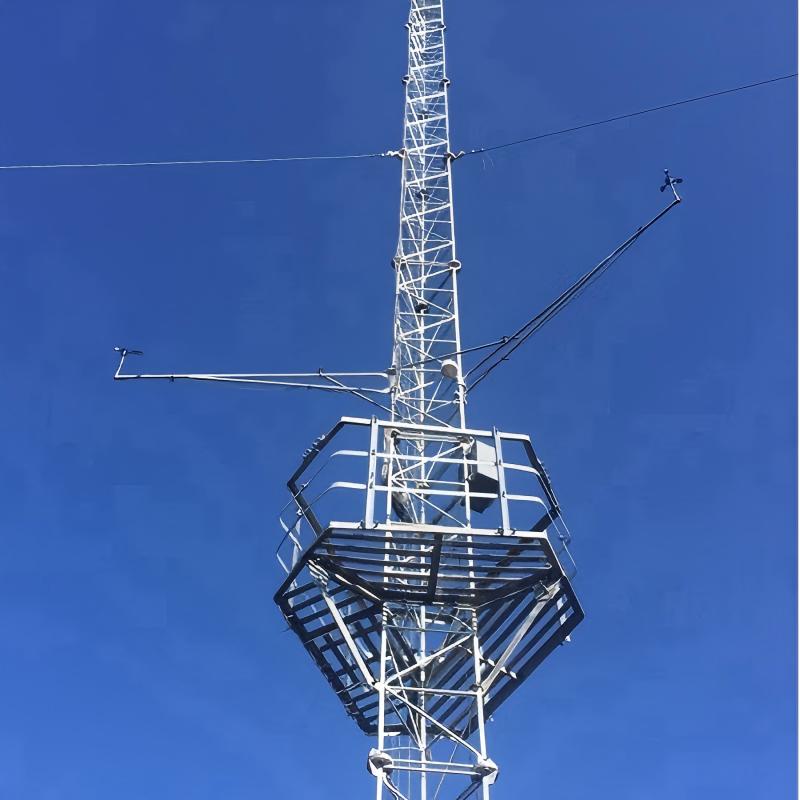

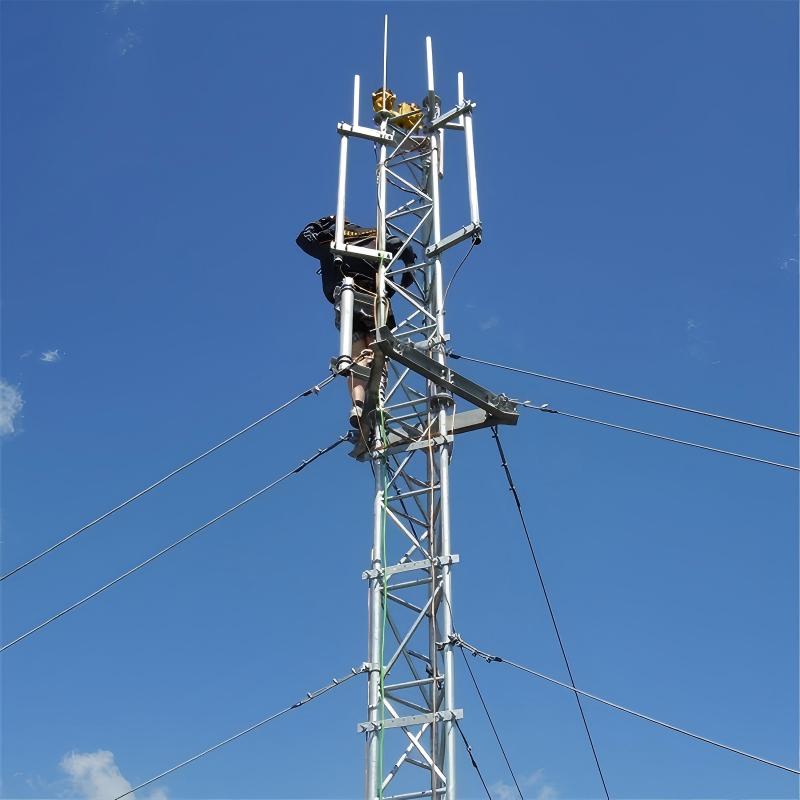

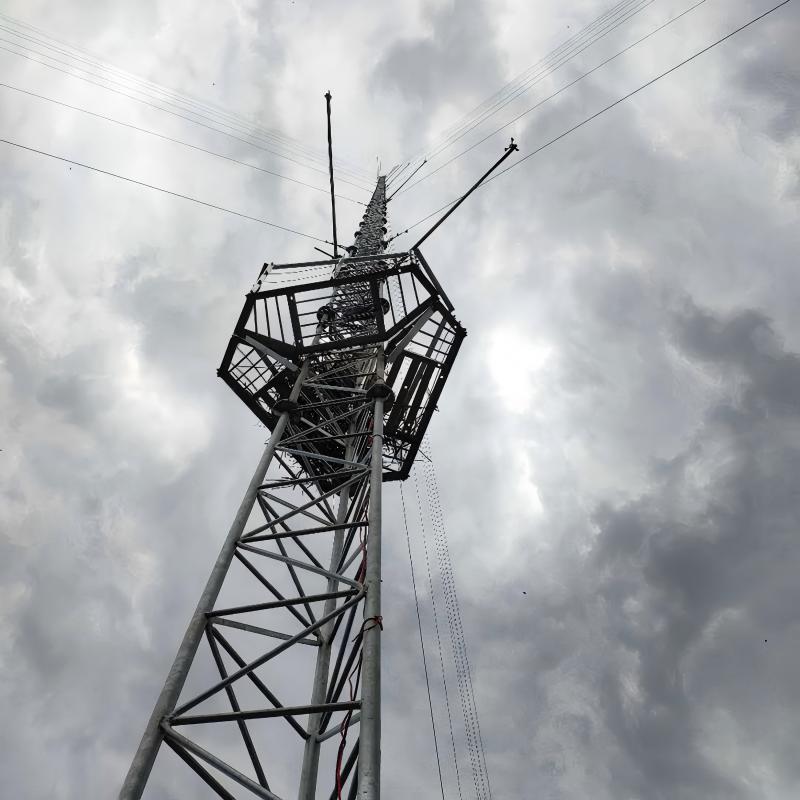

A Guyed MET Tower is a slender, cable-stabilized structure equipped with precision meteorological sensors to measure wind speed, direction, temperature, pressure, and humidity at multiple heights. These towers provide critical data for:
Wind farm feasibility studies
Aircraft safety (wind shear detection)
Climate/weather modeling
Structural engineering (wind load analysis)
| Parameter | Specification |
|---|---|
| Height Range | 50–200m (164–656 ft) |
| Mast Type | Triangular/quadrangular lattice or tubular steel |
| Guy Wires | 3–4 sets (3–6 wires/set), EHS steel, Ø10–24mm |
| Sensor Levels | 3–8 measurement heights (ISO 17025 compliant) |
| Wind Speed Accuracy | ±0.1 m/s (cup anemometers), ±0.5° (wind vanes) |
| Operating Temp | -50°C to +50°C |
| Data Output | 10-min avg. + gusts/sd (IEC 61400-12-1) |
| Power System | Solar (200W) + battery (7-day autonomy) |
Sections: 5–10m bolt-connected modules (galvanized steel, ASTM A500)
Weight: 1–5 tons (for 100m tower)
Climbing System: Internal ladders with OSHA-compliant fall arrestors
| Element | Specification |
|---|---|
| Anchor Type | Concrete deadman (3–8m³) or helical screw |
| Tension | 15–25% of breaking strength (monitored via load cells) |
| Anchor Radius | 60–80% of tower height (e.g., 60m for 100m tower) |
| Angles | 45°–60° from horizontal |
Central Pad: 4m×4m×2m reinforced concrete
Seismic Design: Base isolators for Zone 4 (IBC 2021)
