| Code: | XH-RT02 |
| Categories: | Weather Monitoring Radar Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |
Radar Lattice Towers are engineered structures supporting Doppler weather radar systems (e.g., NEXRAD, C-band/S-band radars). These open-frame steel towers elevate radar domes (radomes) above terrain obstructions to maximize detection range and accuracy in monitoring precipitation, wind shear, tornadoes, and hurricanes.
Description:
|
Tower Height: |
15-50 Meters (or as per customization) |
|
Design Standard: |
ANSI/TIA-222-F/G/H, BS8100,Euro Part1&3 |
|
Design wind speed: |
100kph-350kph (3s gust wind speed) |
|
Exposure Category: |
B/C/D |
|
Antenna Load: |
Based on Radar with randome size and weight |
|
Galvanization Standard: |
EN ISO 1461, ASTM A153& ASTM A123 |
|
Material: |
GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420 |
|
ASTM A36, ASTM 572, GR50. GR65.SS400 |
|
|
Surface Treatment: |
Hot-dip Galvanization |
|
Galvanization Standard: |
ASTM A123 |
|
Welding Standard: |
AWS D1.1 |
|
Welding Method: |
CO2 Shielded Arc Welding. Submerged Arc Welding (SAW). |
|
Life Time: |
More than 25 years |
|
Supply Ability: |
3,000 MT Per Month |
| Parameter | Specification |
|---|---|
| Structural Design |
• Height: 30–100m (100–330 ft) • Geometry: Triangular/quadrilateral lattice with 45° bracing • Material: ASTM A572 galvanized steel • Load Capacity: 5–20 tons (radar + radome + ice) |
| Radar Integration |
• Mount Type: Pedestal/platform at apex • Radome Diameter: 8–15m (fiberglass/PTFE) • Access: Internal ladder + service platforms |
| Environmental Resilience |
• Wind Rating: 200+ km/h (ASCE 7-22) • Ice Load: 50–100mm radial ice (ISO 12494) • Corrosion Protection: Hot-dip galvanization (150μm) + marine-grade coating • Lightning Protection: IEC 62561-compliant dissipation |
| Foundation |
• Type: Reinforced concrete pile/raft • Depth: 8–15m (below frost line) • Anchor Bolts: ASTM F1554 Gr. 105 |

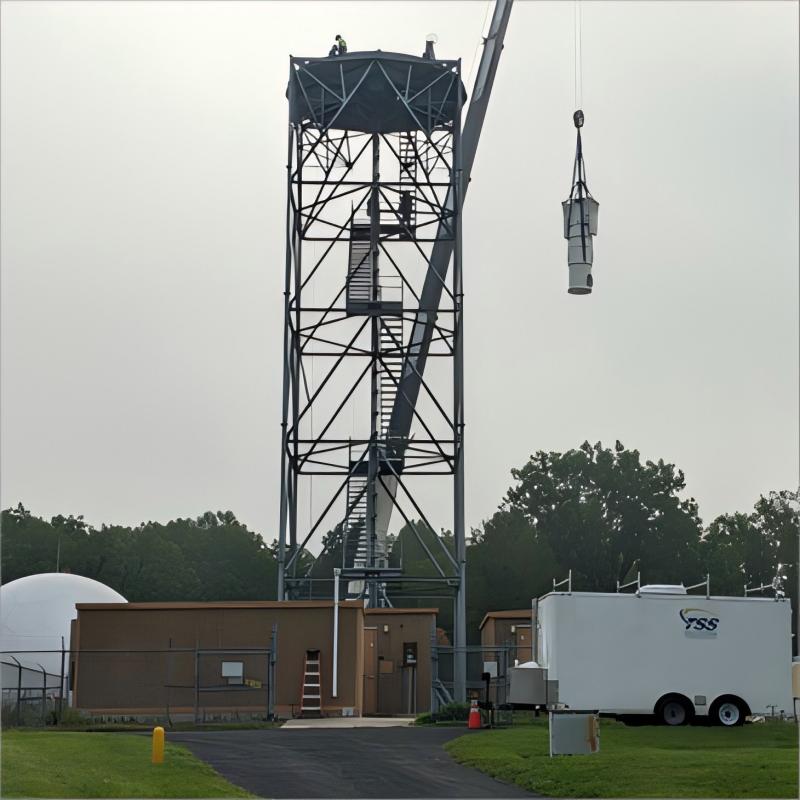

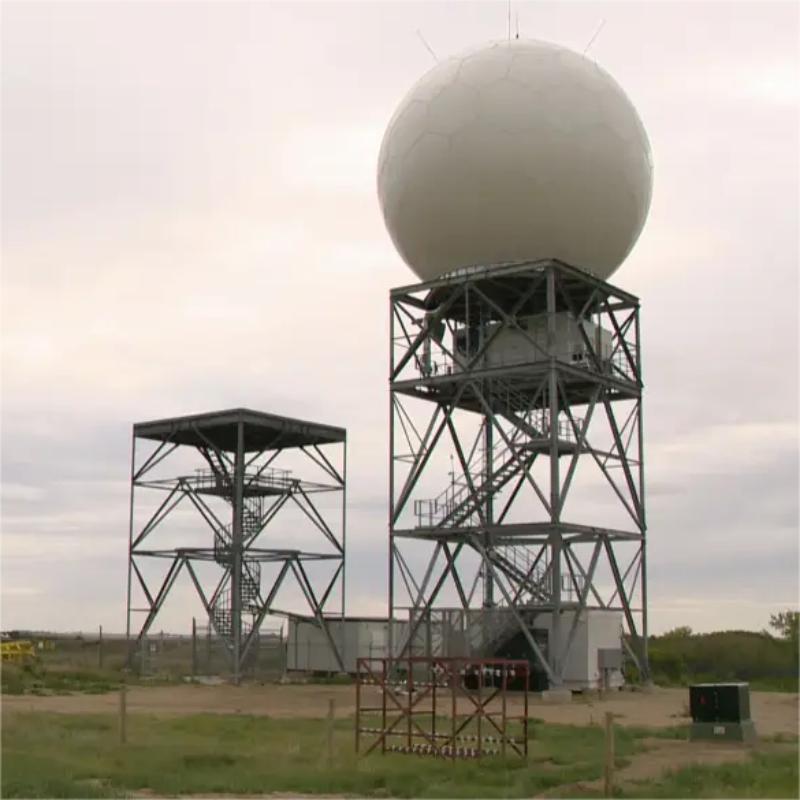

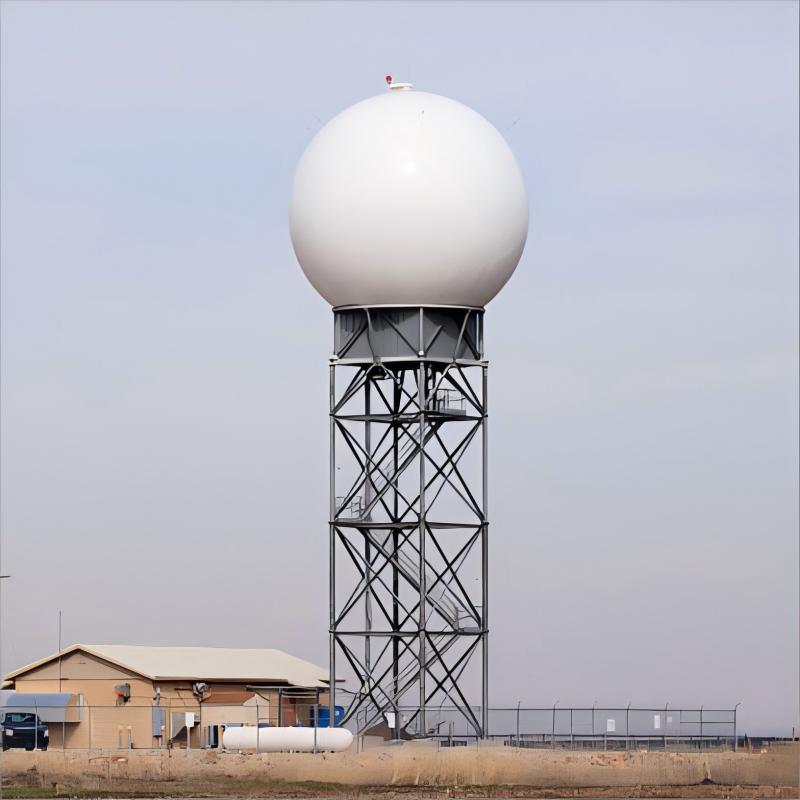

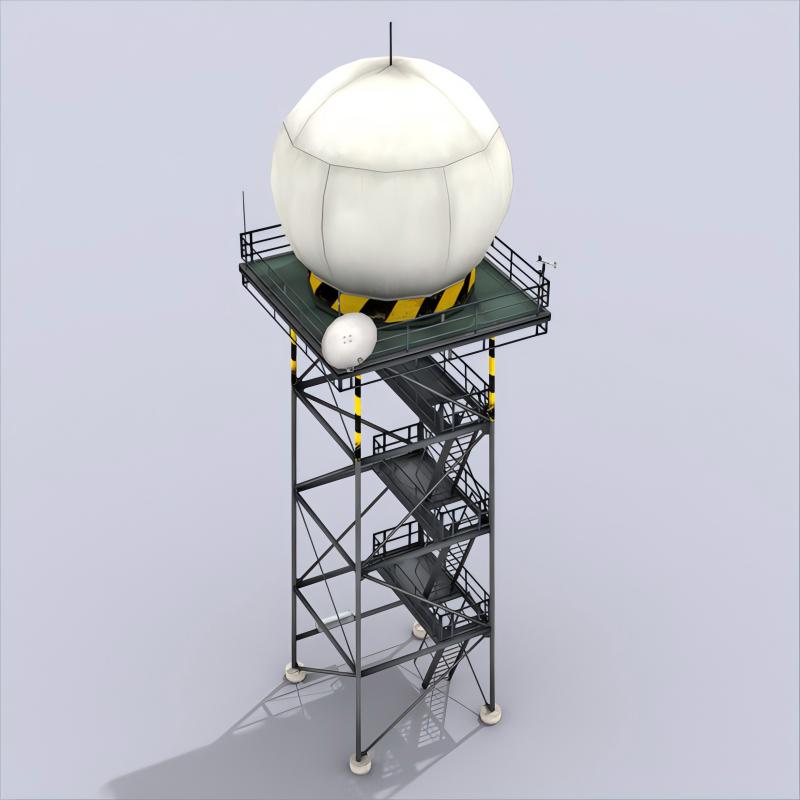

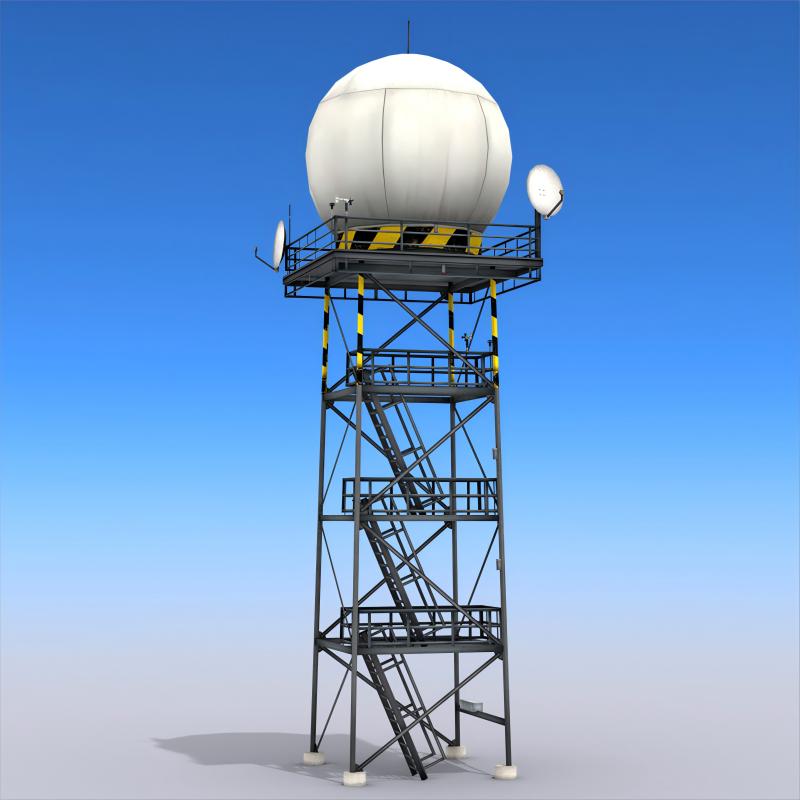

Product Details:
_1750838141_WNo_800d600.webp)
_1750838171_WNo_600d704.webp)
_1750838198_WNo_600d450.webp)
_1750838225_WNo_600d450.webp)
_1750838247_WNo_800d600.webp)
Deployment Configuration
/Radome (12m Ø)
| S/C-band Radar |
| (5-10 tons) |
| Service Platform|
/----Lattice Tower----
/ (80m) /
/ _______________ /
//
// X-bracing
//_____________________________
/ Foundation
/ (12m Ø piles @ 14m depth)
_1750838404_WNo_800d339.webp)
_1750838440_WNo_800d652.webp)
| Metric | Requirement | Rationale |
|---|---|---|
| Deflection Limit | < H/1000 (e.g., 80mm @ 80m) | Radar pointing accuracy |
| Natural Frequency | > 0.5 Hz | Avoid wind-resonance vibrations |
| Radar Horizon | 200–400 km | Maximize storm tracking range |
| Maintenance Access | 360° platform every 20m | Safe radome/antenna servicing |
Structural: TIA-222-H (Wind/Ice), EN 1993-1-1
Radar: ITU-R M.1849 (Weather Radar Specs)
Safety: OSHA 1926 Subpart R (Steel Erection)
EMC: CISPR 32 (Electromagnetic Compatibility)
