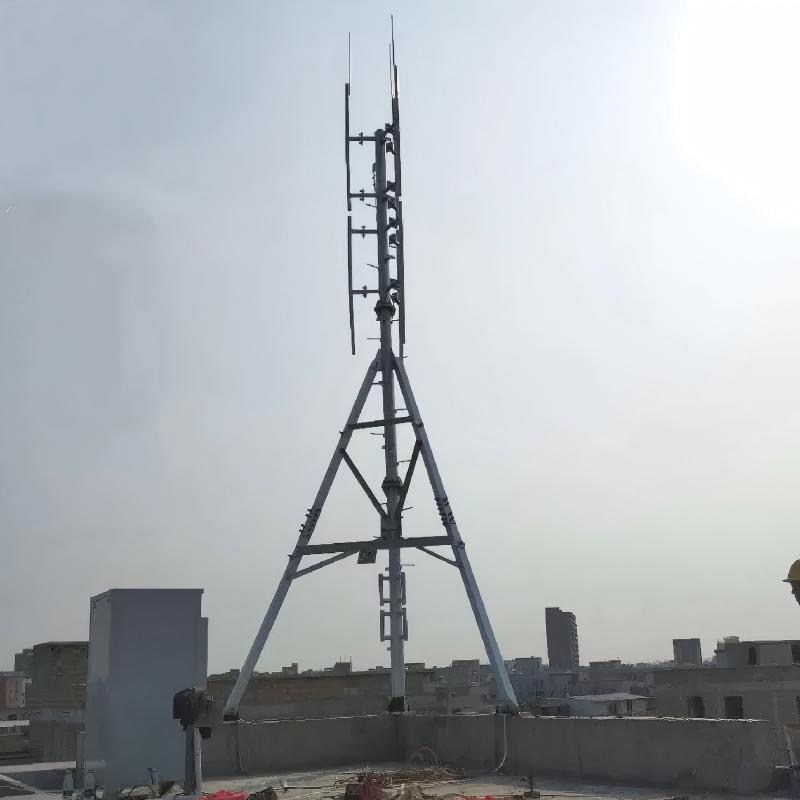

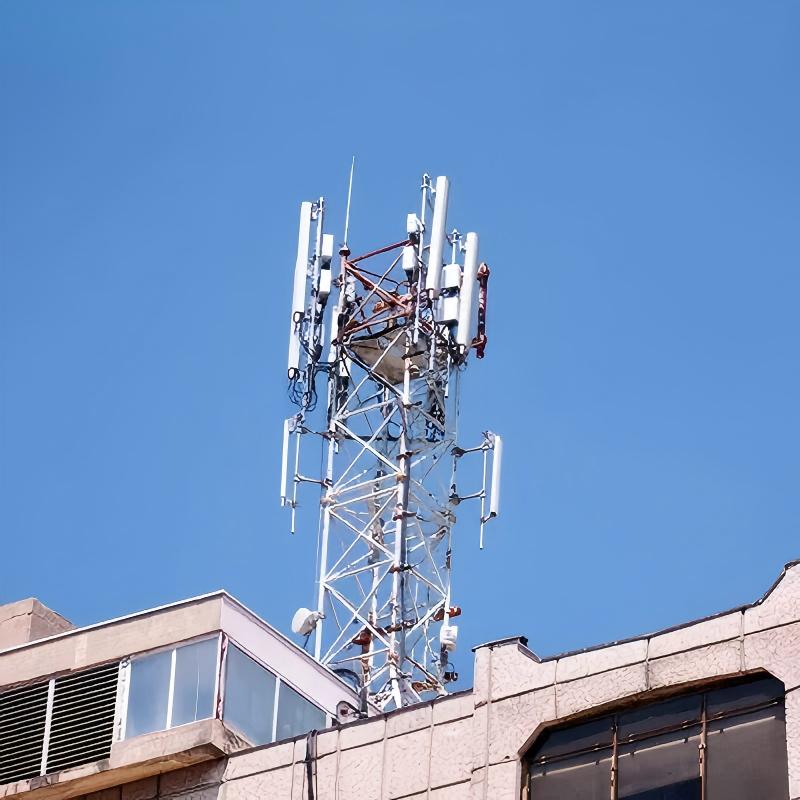

A purpose-engineered structure mounted on building rooftops to elevate antennas/RF equipment above obstructions, optimizing signal coverage in urban/suburban environments while minimizing ground space requirements.
Design: Triangular/rectangular steel frameworks (6-25m height)
Materials: ASTM A500 galvanized steel sections
Load Capacity: 15-30+ antennas across multiple platforms
Advantages: Superior wind resistance (200+ km/h), modular expansion
Use Cases: Carrier hubs, broadcast transmission sites
Product Details
_1753082488_WNo_800d800.webp)
_1753082517_WNo_800d800.webp)
_1753082558_WNo_800d800.webp)
| Parameter | Monopole | Lattice | Stealth |
|---|---|---|---|
| Max Height | 15m | 25m | 12m |
| Base Area | 0.8m² | 4-9m² | Custom |
| Wind Survival | 180 km/h | 250 km/h | 150 km/h |
| Install Time | 8-12 hours | 2-4 days | 1-2 weeks |
| Camouflage | Limited | None | Seamless |
Roof Assessment
Structural load capacity verification (kN/m²)
Core sampling for concrete strength (≥25MPa)
Proximity scans for rebar/conduits
Regulatory Compliance
FAA obstruction marking (L-810 lights for 45m+ AGL)
Local zoning variances (height restrictions)
Landlord/tenant agreements
Installation
Crane-less assembly (telescopic mast systems)
Vibration-damped mounts for mechanical rooms
Penetration sealing with EPDM membranes
Hot-dip Galvanization
Strictly according to ASTM-A123 standard.
