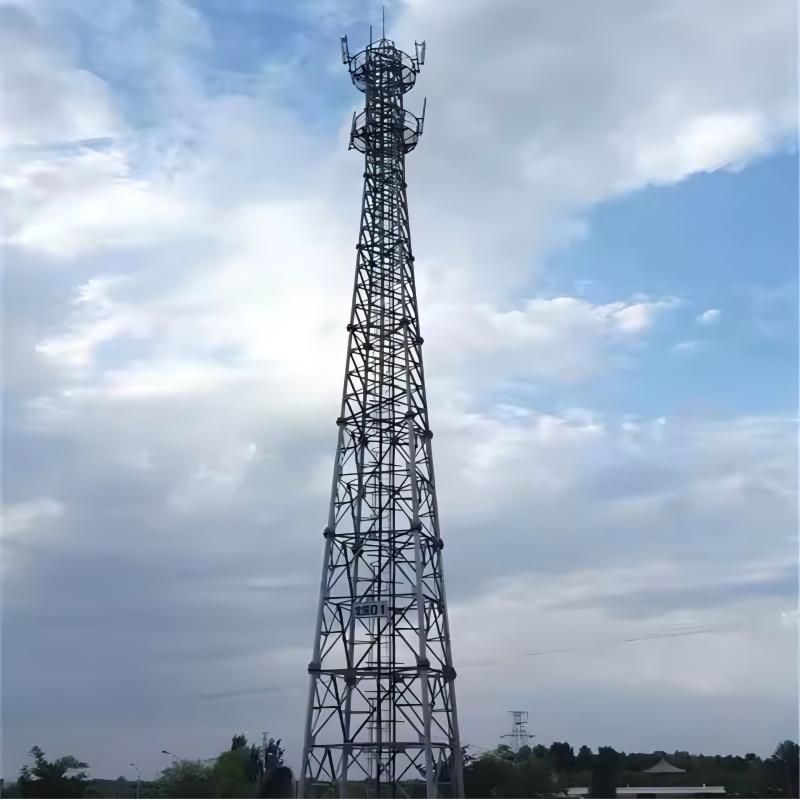

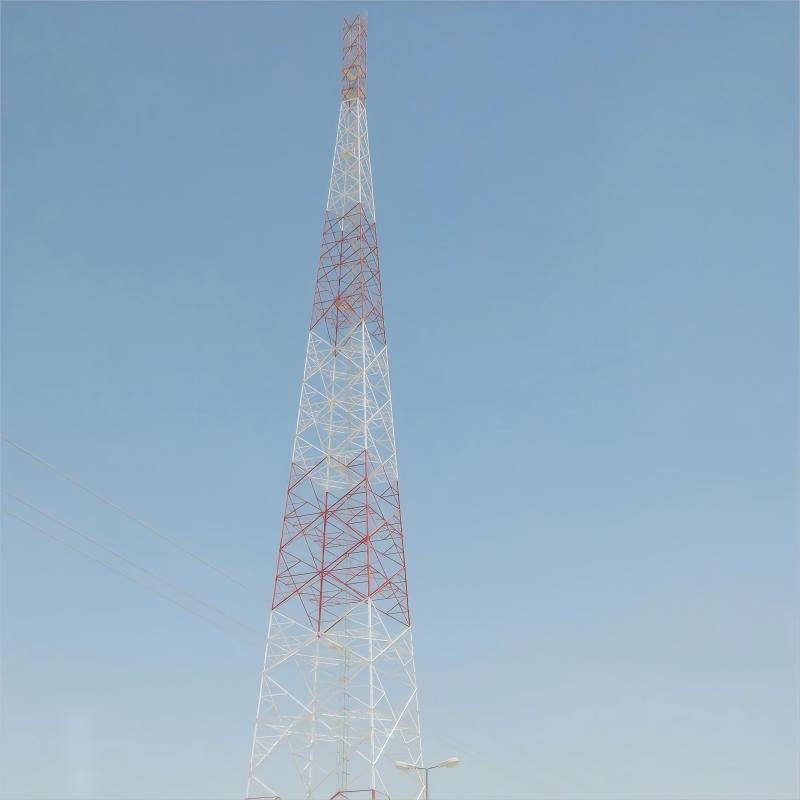

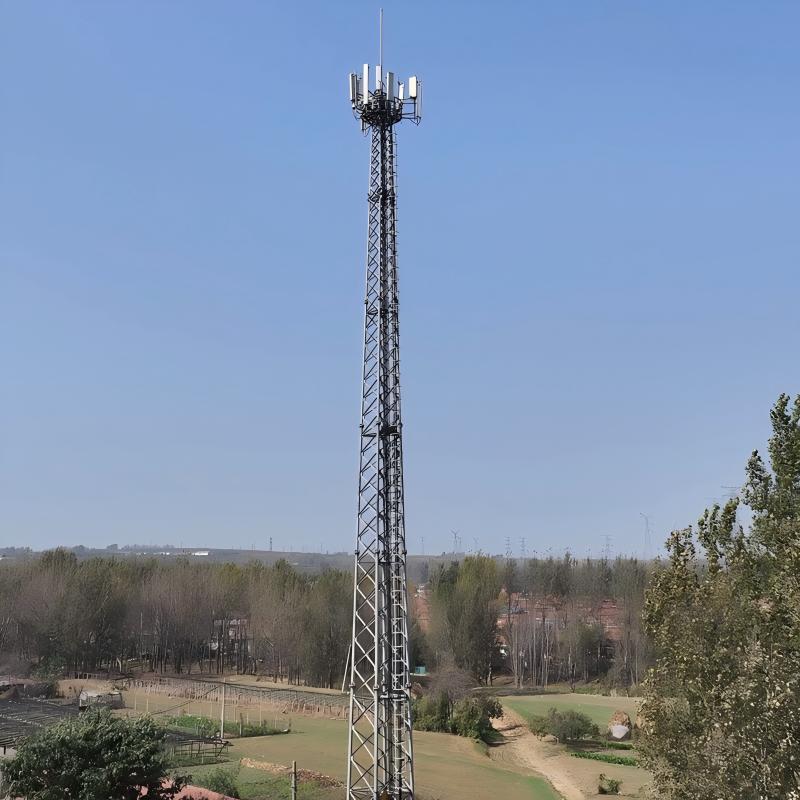

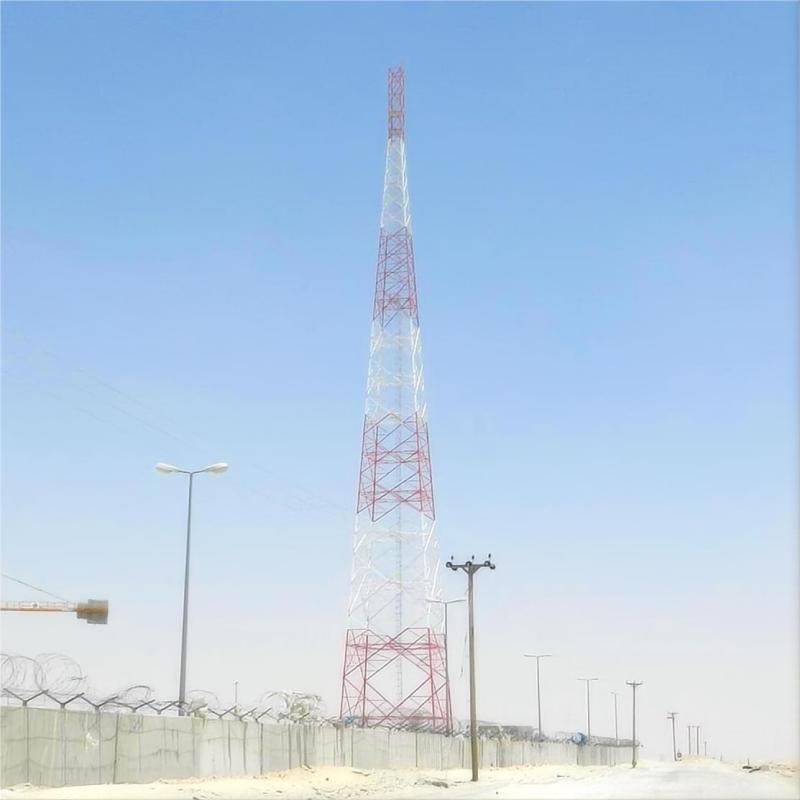

| Code: | XH-T06 |
| Categories: | Telecommunication Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |
| Parameter | Standard Range | Customization Options |
|---|---|---|
| Height | 30–80m | Up to 120m (with guy wires) |
| Leg Diameter | 150–300mm | Tapered profiles (base-to-top) |
| Steel Grade | ASTM A572 Gr. 50 (345 MPa) | ASTM A500 Gr. C (317 MPa) |
| Galvanization | ISO 1461 HDG (85μm) | Duplex systems (zinc + epoxy) |
| Payload Capacity | 3,000–8,000 kg | 12,000 kg (reinforced) |
| Wind Rating | 200 km/h | 250 km/h (typhoon zones) |
| Foundation | 4× isolated footings | Raft/pile integration |
| Lead Time | 12–16 weeks | 8 weeks (rush OEM) |
Leg Configuration:
Adjustable leg spacing (4–10m base width)
Variable leg lengths (sloped terrain adaptation)
Bracing Systems:
K-bracing (standard) → Warren trusses (seismic zones)
Boltless connections (rapid deployment)
Platforms:
Height-adjustable tiers (every 10–15m)
Helicopter-serviced top hats
<h4 style="font-weight: 500; font-size: 16.002px; line-height: 28.575px; margin: 18.288px 0px 13.716px; color: rgb(64, 64, 64); font-family: quote-cjk-patch, Inter, system-ui, -apple-system, BlinkMacSystemFont, " segoe="" ui",="" roboto,="" "noto="" sans",="" ubuntu,="" cantarell,="" "helvetica="" neue",="" oxygen,="" "open="" sans-serif;"=""> 2. Corrosion Defense
| Environment | Coating System | Lifespan |
|---|---|---|
| Coastal (C5-M) | 120μm Zn + 200μm epoxy | 40+ years |
| Desert | Zinc-aluminum (Galfan) | 35 years |
| Arctic | Thermal-sprayed Al + sealant | 50 years |
Brand Integration:
Laser-cut logos on base panels
Custom RAL color powder coating
Compliance Packages:
Pre-certified for TIA-222-H Class IV / EN 1993-1-1
Region-specific certifications (e.g., TRA UAE, ANATEL Brazil)
Product Details
_1752133847_WNo_800d800.webp)
_1752133883_WNo_800d800.webp)
Hot-dip Galvanization
_1752134327_WNo_1200d900.webp)
_1752134359_WNo_1200d900.webp)
Steel Traceability: Mill test certificates (EN 10204 3.1)
Weld Integrity:
100% UT/RT testing (AWS D1.1)
MPI crack detection
Alkaline degreasing
HCl pickling (15% concentration)
Flux immersion (ZnNH₄Cl₂)
450°C zinc bath (immersion: 5 min/mm thickness)
Quenching (chromate passivation)
Shipping-Limited Segments: Max 12m length × 3m width
Match-marked flanges (M36 high-strength bolts)
Package Details
_1752134562_WNo_1200d900.webp)
_1752134602_WNo_700d450.webp)
_1752134638_WNo_600d450.webp)
Factory Acceptance Tests:
Load testing to 150% design weight
Salt spray: 1,000hrs ISO 9227
Dimensional tolerance: ±2mm/10m
Documentation:
As-built drawings (AutoCAD Revit)
Coating thickness maps (3D scan)
