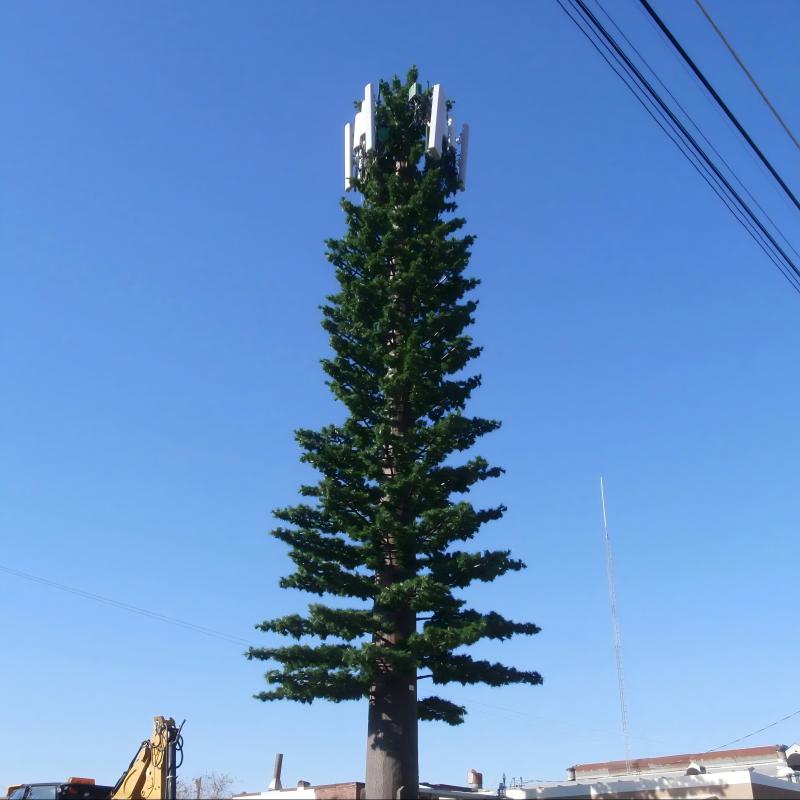

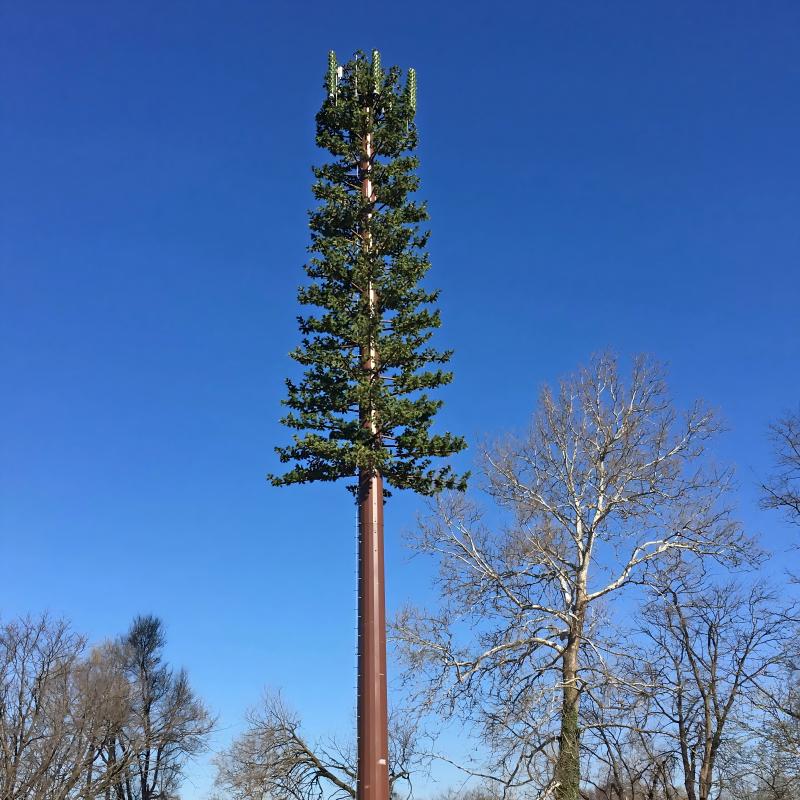

Bionic Pine Towers are biomimetic telecom structures that replicate native conifer species (Pinus spp.). They conceal antennas within synthetic branches/trunks, enabling deployment in national parks, ski resorts, alpine communities, and eco-sensitive zones where traditional towers are prohibited.
| Product Name | Bionic Pine Tree Telecommunication Tower |
| Type | Telecommunication Tower |
| Height | 10-30M |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc. |
| Wind Speed | 0–330 KM/H |
| Design Standard | TIA/EIA‑222‑G/F/H |
| Material |
GB/T700: Q235B GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM 572, GR50, GR65, SS400 EN 10025: S235JR, S235JO, S235JZ EN 10025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008, SGS COC |
| Galvanized | Hot‑dipped Galvanized |
| Galvanization Standard | ASTM A123 |
| Nuts & Bolts | Grade 8.8 |
| Welding Standard | AWS D1.1 |
| Welding Method | CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW) |
| Bolts & Nuts Galvanization Standard | ISO 1461 or ASTM A153 |
| Life Time | More than 25 years |
| Supply Ability | 15 Sets per month |
Product Details:
| Parameter | Specification |
|---|---|
| Structural Design |

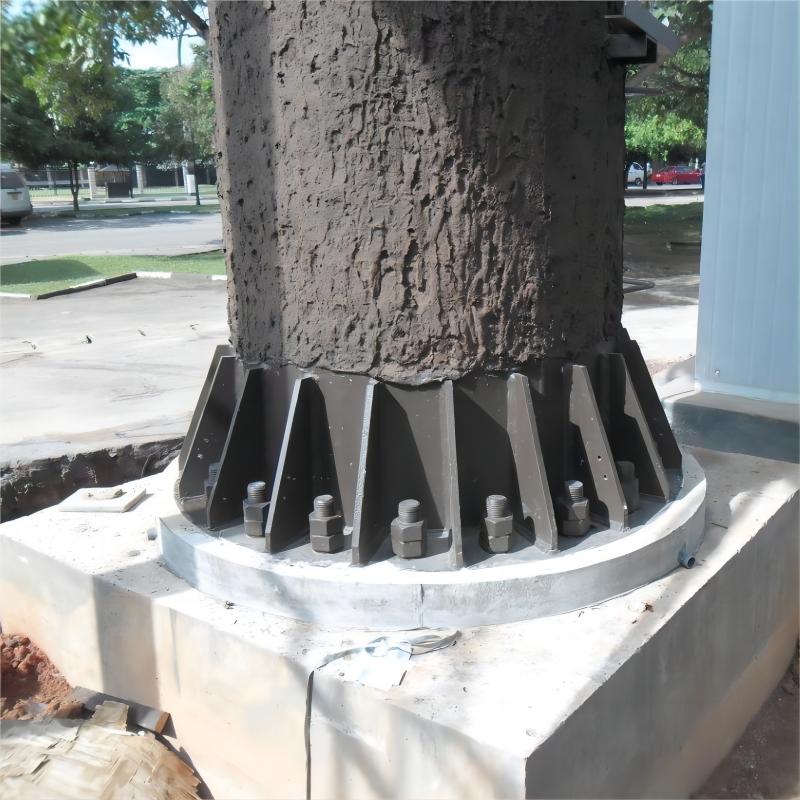

• Height: 15–35m (50–115 ft) • Trunk: Galvanized steel core + fiber-reinforced polymer (FRP) "bark" with textured resin finish • Branches: Glass-reinforced plastic (GRP) limbs with epoxy-coated needles • Foundation: Reinforced concrete (5–8m depth, snow/ice anchors) |
| Camouflage Tech |
• Species Matching: Custom replicas of local pines (P. sylvestris, P. ponderosa, etc.) • RF Transparency: Branch radomes with <0.7 dB signal loss (ε<sub>r</sub> < 3.0) • Seasonal Adaptability: Optional snow-dusted or UV-reactive coatings |
| Telecom Payload |

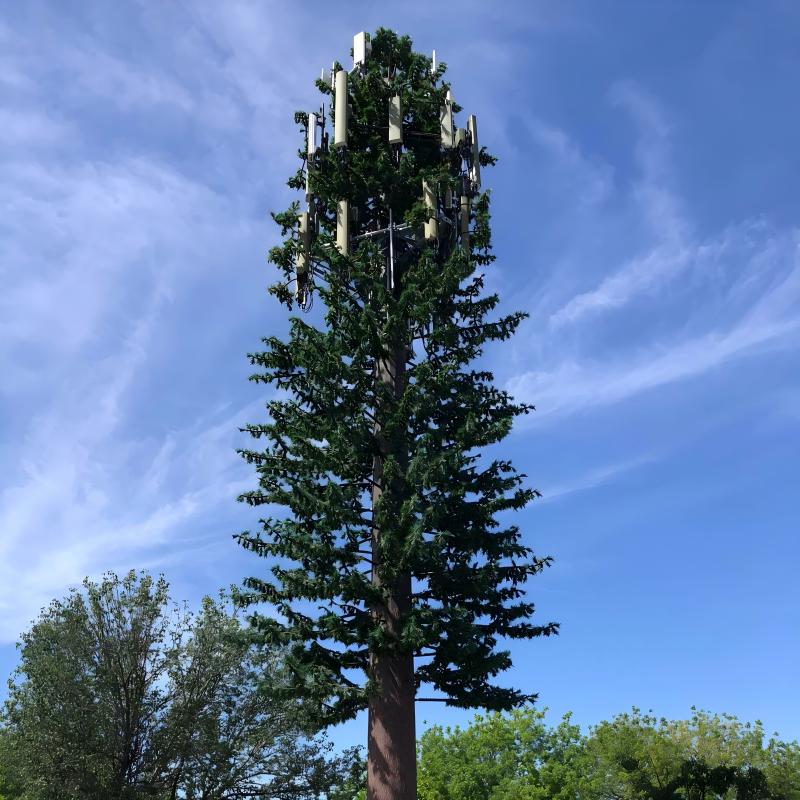

• Antenna Capacity: 6–12 sector antennas + 4 microwave dishes • Concealment: Antennas nested in upper branches; RRUs in hollow trunk compartments • Backhaul: Fiber via root-conduit system |
| Environmental Resilience |
• Snow Load: 75 kg/m² (ISO 4355) • Wind Rating: 160 km/h (branch-shedding design) • Temp Range: -50°C to +40°C (heated trunk option) • Lightning Protection: IEC 62305 Level 2 |
| Maintenance |

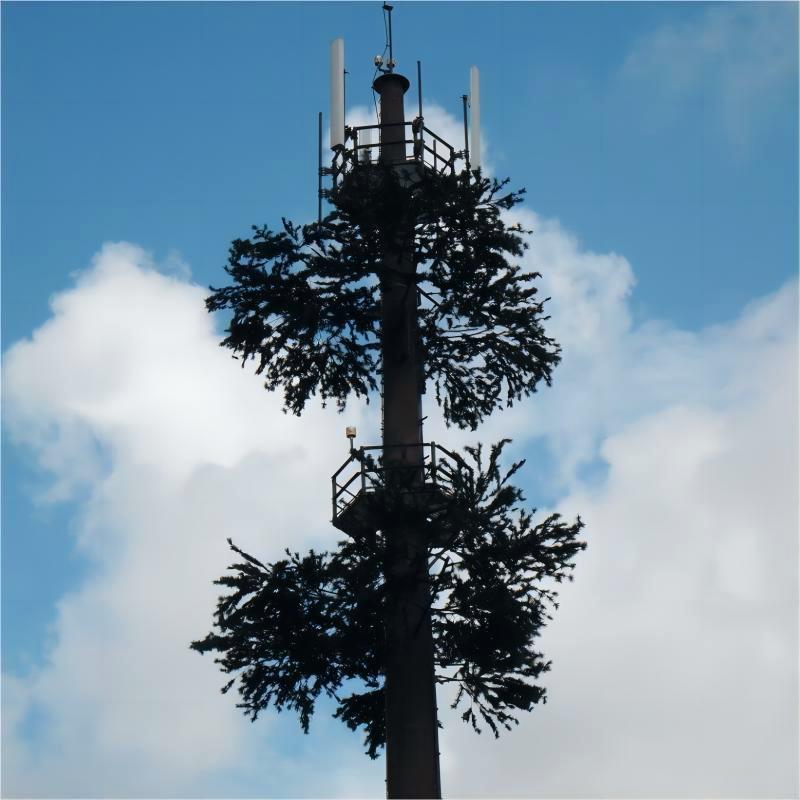

• Access: Internal climbing system + branch-mounted platforms • Branch Replacement: Modular snap-lock joints |
| Use Case | Deployment Examples | Technical Advantage |
|---|---|---|
| Mountain Resorts | Swiss Alps, Colorado Rockies | Blends with slopes; survives heavy snow/ice |
| Boreal Forests | Canadian Shield, Scandinavian NPs | Mimics native Pinus species; avoids deforestation |
| Urban Greenbelts | Denver, Oslo, Vancouver | Complies with "green infrastructure" mandates |
| Military Sites | Arctic bases, border outposts | Conceals comms; withstands extreme cold |
| Wildfire Zones | California, Australia | Fire-retardant materials (UL 94 V-0 rated) |
