Monopole Structure: The internal support is typically a hot-dip galvanized steel monopole (e.g., Q235B/Q345B steel) designed to withstand wind speeds of up to 180 km/h and radial ice loads of up to 8 mm. The monopole is often modular, with segments connected via internal flanges or socket joints for ease of assembly and structural integrity.

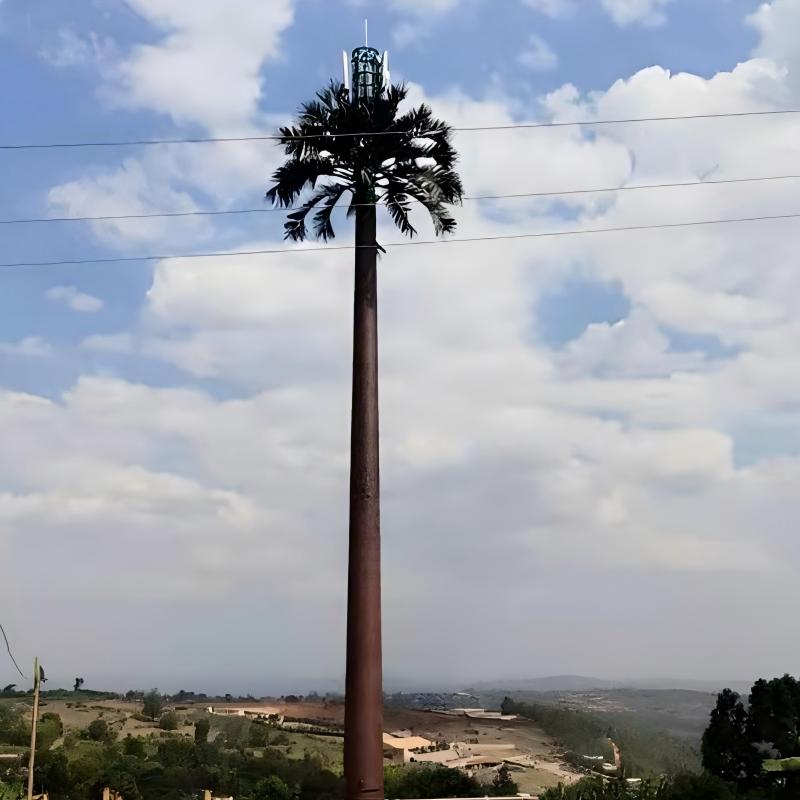

External Camouflage System:

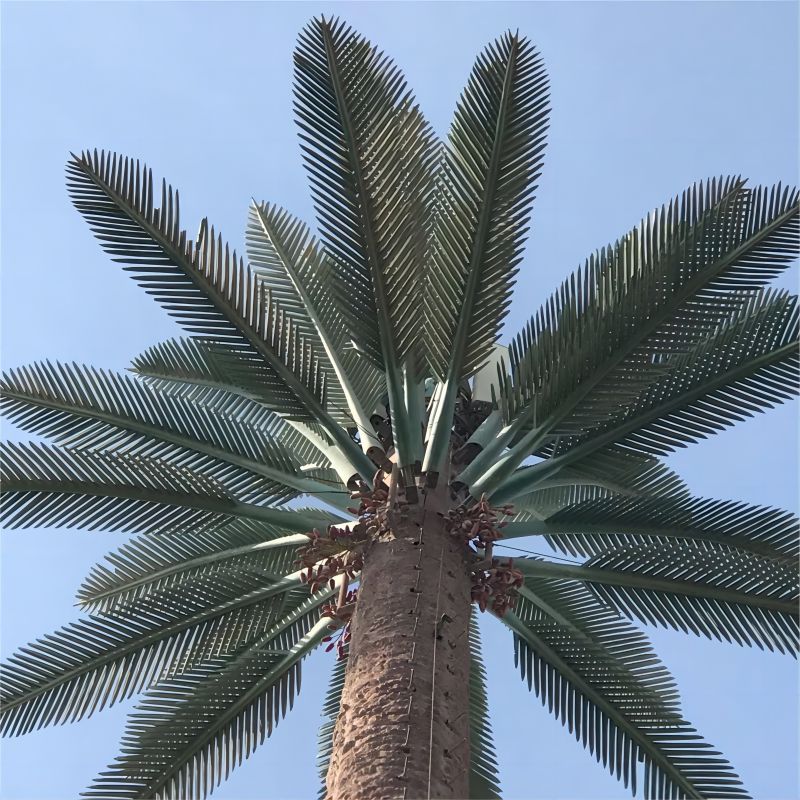

Trunk Simulation: The steel monopole is wrapped in a wire mesh with diamond-shaped patterns, onto which artificial bark pieces (made from polyurethane, fiberglass, or composite materials) are attached. These pieces interlock via card-slot connections (e.g., tenon-and-mortise joints) for secure fitting.

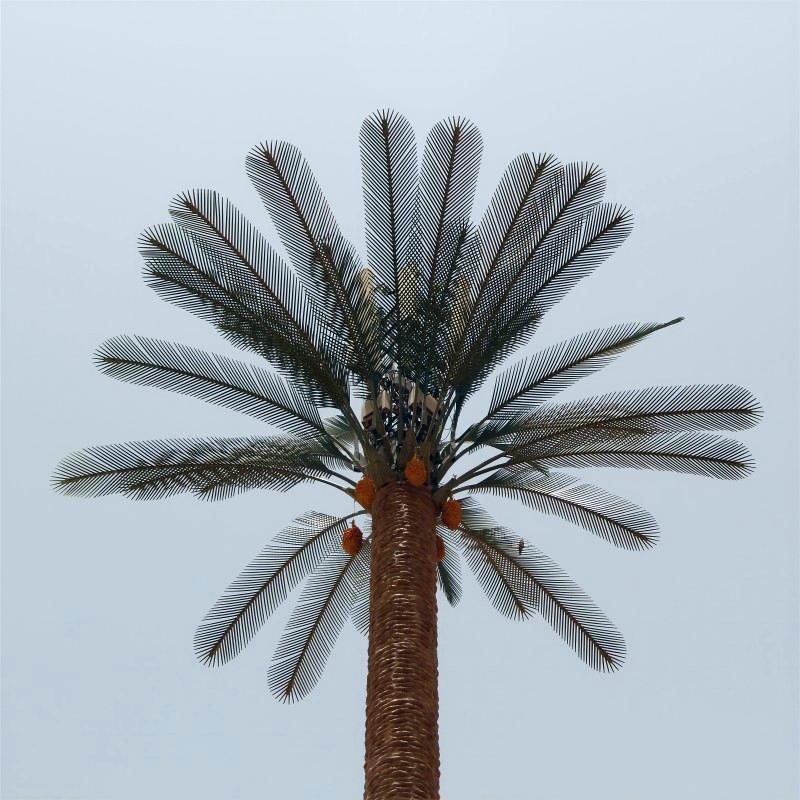

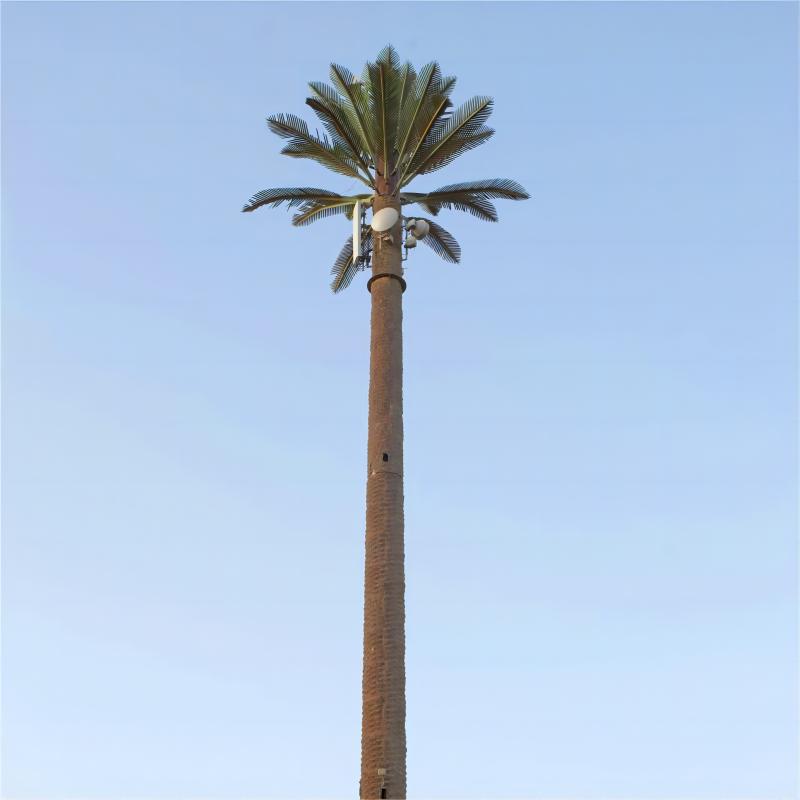

Frond Assembly: The upper section features branches and leaves crafted from UV-resistant PE (polyethylene) or fiberglass. These are arranged in layers (typically 12 layers with 3 branches each) of varying lengths to mimic natural growth patterns. Leaves are often designed to be RF-transparent to avoid signal interference.
Foundation: Uses a reinforced concrete base (4–6 m²) to ensure stability, with options for direct burial or anchor bolt mounting.
_1756446655_WNo_800d512.webp)
| Parameter | Specification |
|---|---|
| Height Range | 5–60 meters |
| Wind Resistance | Up to 180 km/h |
| Antenna Capacity | 0–12 antenna brackets |
| Material (Internal) | Hot-dip galvanized steel (Q235B/Q345B) per ASTM A123 |
| Material (External) | PU/fiberglass trunk; PE leaves |
| Lifespan | Steel structure: 20+ years; Leaves: 5–10 years |
| Installation Time | 3–7 days (modular design speeds up assembly) |
