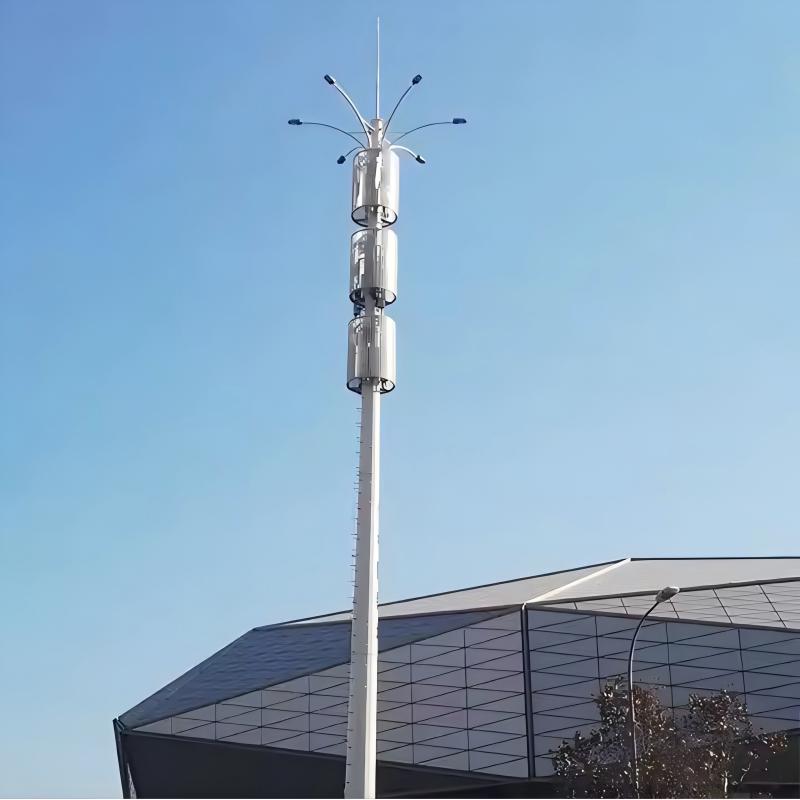

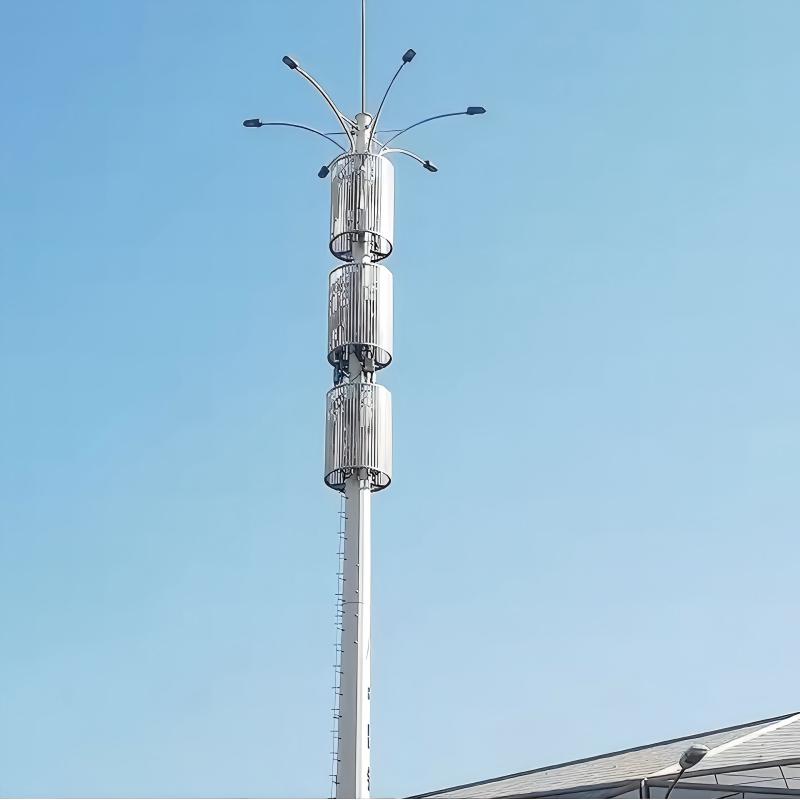

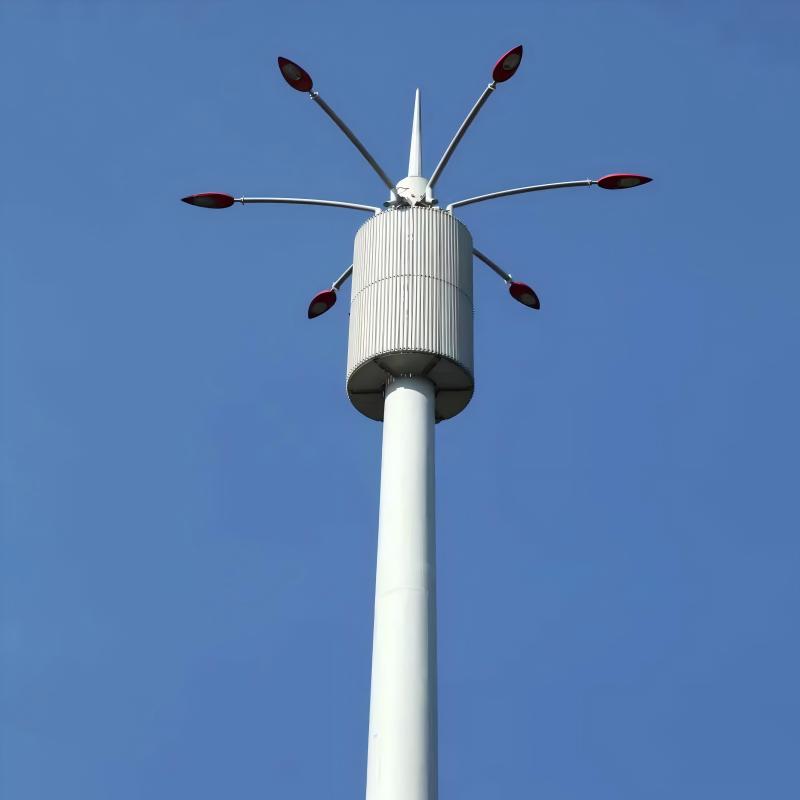

Product introduction

Core Specifications

Parameter	Specification
Height	8–18m (26–60 ft)
Diameter	300–600mm (tapered)
Material	Hot-dip galvanized steel + aluminum composite shrouds
Lighting	LED luminaires (3,000–12,000 lm, 3000K–5000K CCT)
Antenna Capacity	3–6 sector antennas + 2 small cells
Wind Rating	160 km/h (100 mph)
Corrosion Protection	ISO 12944 C4/C5 coating
Foundation	2m×2m×3m reinforced concrete

Product Details

Design Features

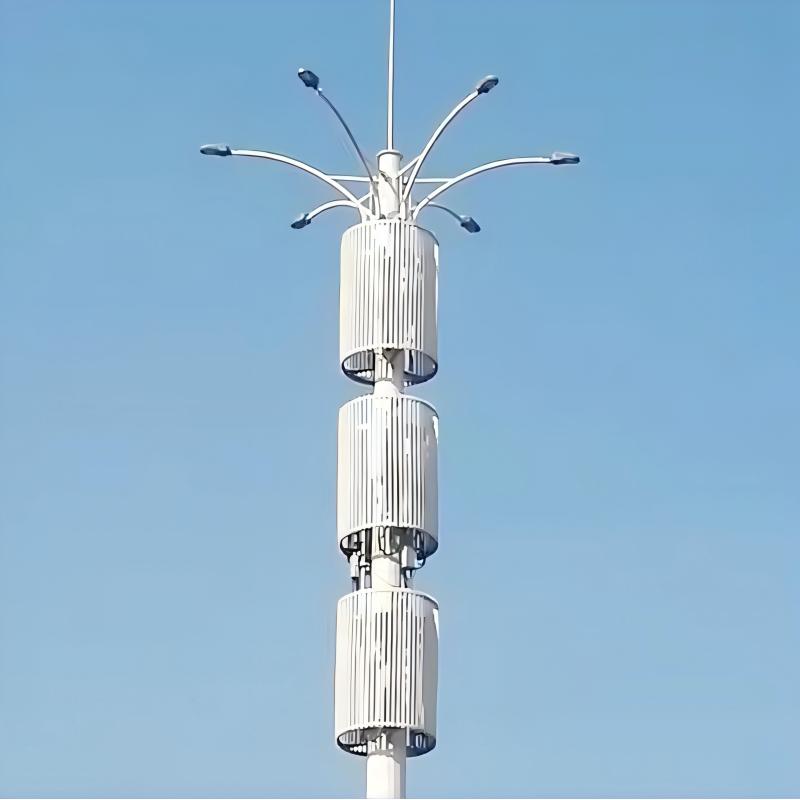

1. Stealth Integration

Aesthetic Shrouds:
- Textured powder coating (RAL colors: 8004/7016)
- Optional faux-bark or stone veneers
Concealed Antennas:
- Radomes embedded in crown or lamp housing
- RRUs hidden in base cabinets (IP55 rated)

2. Lighting System

Component	Function
LED Modules	100–150 lm/W efficiency (IES LM-80 compliant)
Optics	Asymmetric distribution (EN 13201 Road Lighting)
Smart Control	Dimming + motion sensing (DALI/Zigbee 3.0)
Solar Hybrid	Optional 400W PV panels + LiFePO₄ batteries

3. Structural Engineering

Unified Conduit:
- Internal cable routing (power/fiber/control)
- Separated compartments (EMI isolation)
Modular Sections:
- Bolt-flange connections (±0.5° alignment tolerance)
Base Design:
- Access hatch for utilities
- 30cm landscaping collar (soil/plant cover)

Package Reference

Telecom & Lighting Payload

plaintext

                                    [ Antenna Radomes ]
                                      │    ▲
                                      │ 5G mmWave
                                      ▼    │
[ LED Array ]──────[ Lighting Control ]───[ Power/Signal Conduit ]
      │                   (DALI/Zigbee)               │
      │                                               │
      └────[ Pole Structure ]──────[ RRU Cabinet ]────┘
                      ▼                     (IP55)
               [ Foundation ]
