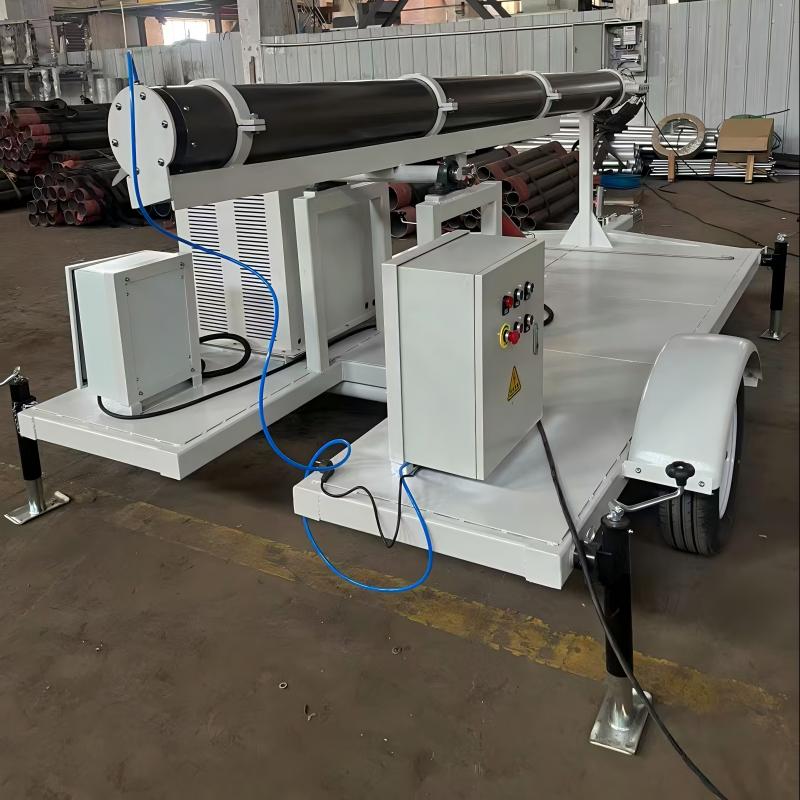

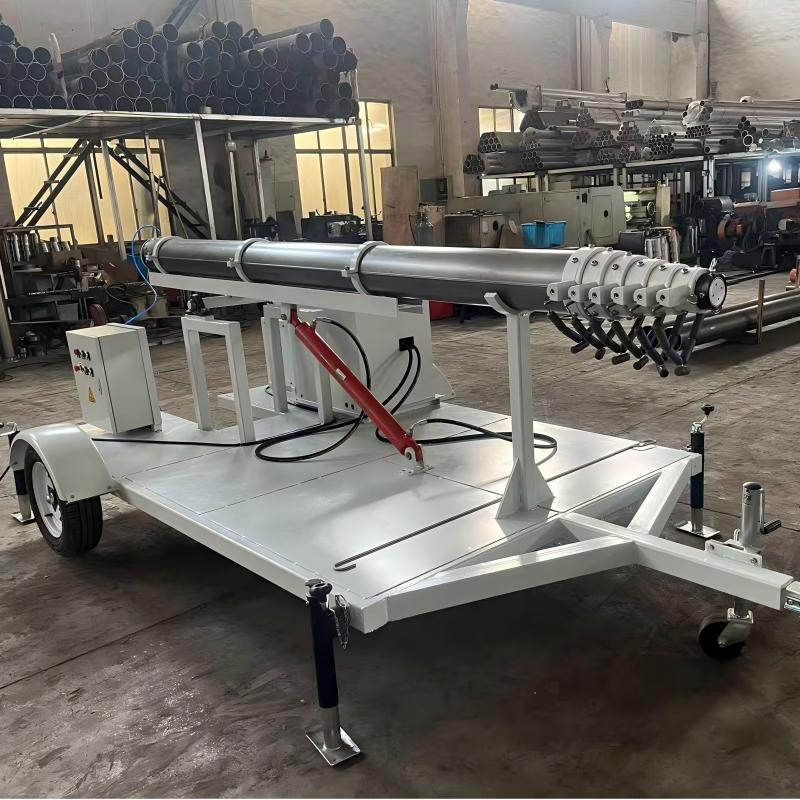

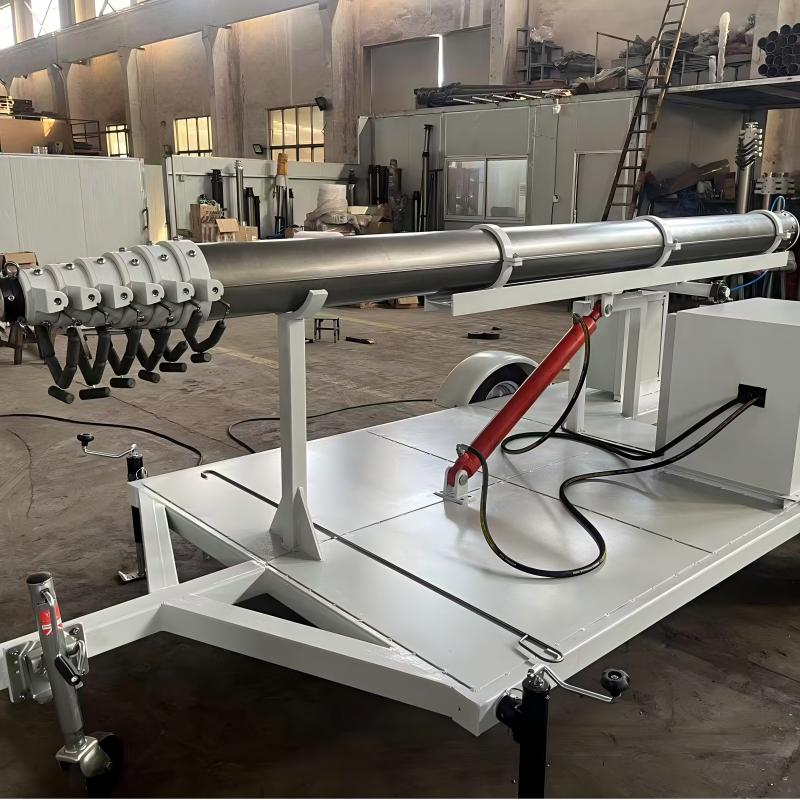

Deploy high-performance 4G/5G coverage in under 45 minutes with Altai’s revolutionary aluminum alloy COW. Engineered for streets, events, and emergencies, this ultra-light yet robust system combines aerospace-grade materials with plug-and-play operation – no cranes, no crews, just connectivity.
| Parameter | Specification |
|---|---|
| Mast Height | 8–18m telescopic (26–59 ft) |
| Collapsed Height | 3.2m |
| Dry Weight | 950–1,800 kg (vs. 2,500kg+ for steel COWs) |
| Payload Capacity | 300–600 kg (antennas + RRUs) |
| Deployment Time | 25–45 minutes |
| Towing Vehicle | Standard 3.5-ton pickup truck (F-350/RAM 3500) |
| Wind Rating | 120 km/h operational / 150 km/h survival |
| Power System | 48V LiFePO₄ + 5kVA generator (24h runtime) |
Product Details
_1753681829_WNo_1200d900.webp)
_1753681857_WNo_1200d900.webp)
_1753681911_WNo_800d508.webp)
_1753681944_WNo_800d508.webp)
(1)_1753681989_WNo_800d800.webp)
(1)_1753682012_WNo_800d800.webp)
Material: 6061-T6 aluminum (yield: 240 MPa, density: 2.7 g/cm³)
Weight Savings: 60% lighter than steel equivalents → enables pickup transport
Corrosion Resistance: Natural oxide layer + anodized coating (ISO 7599)
[Workflow - Under 45 Min]
1. Stabilization: 4x hydraulic outriggers auto-level (slopes ≤10°)
2. Mast Elevation: 3-stage telescopic lift (hydraulic/pneumatic)
3. Commissioning: Pre-angled antennas connect to integrated BBU/RRU
| Component | Capability |
|---|---|
| Antennas | 3–6x 4G/5G sectors (massive MIMO compatible) |
| Backhaul | Dual 10Gbps fiber/microwave ports |
| Edge Compute | 2U vRAN server (O-RAN compliant) |
| IoT Hub | Environmental sensors + public Wi-Fi AP |
| Metric | Aluminum COW (12m) | Steel COW (12m) |
|---|---|---|
| Weight | 1,250 kg | 2,800 kg |
| Deployment Time | 35 min | 60 min |
| Max Speed Tow | 110 km/h | 80 km/h |
| Corrosion Life | 40+ years (no coating) | 25 years (HDG dependent) |
Speed: Operational before competitors finish setup
Agility: Navigates narrow urban corridors
Sustainability: 100% recyclable aluminum
ROI: 12–18 months payback at high-demand sites
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
