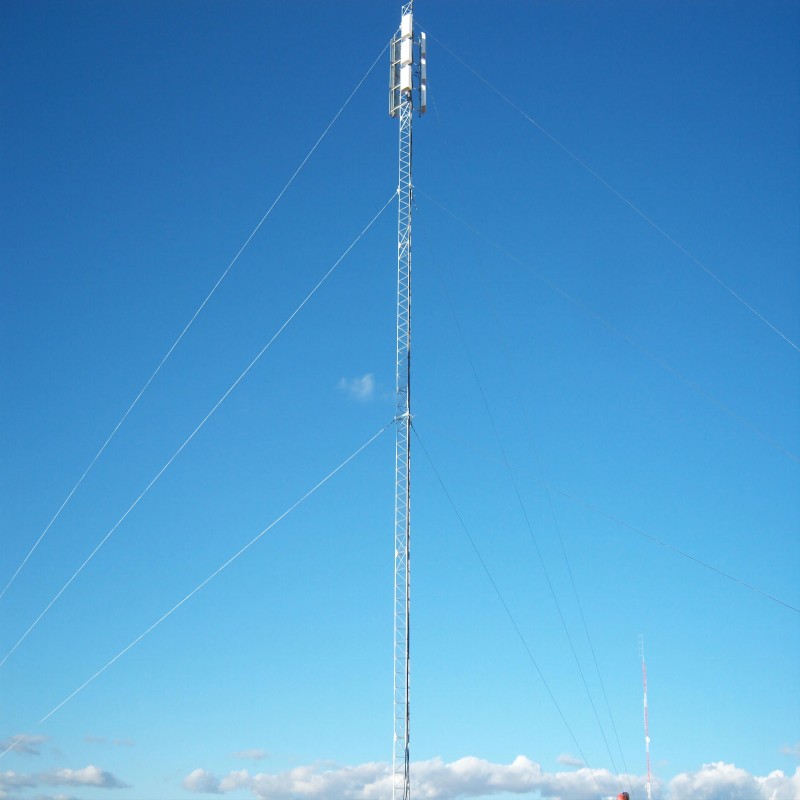

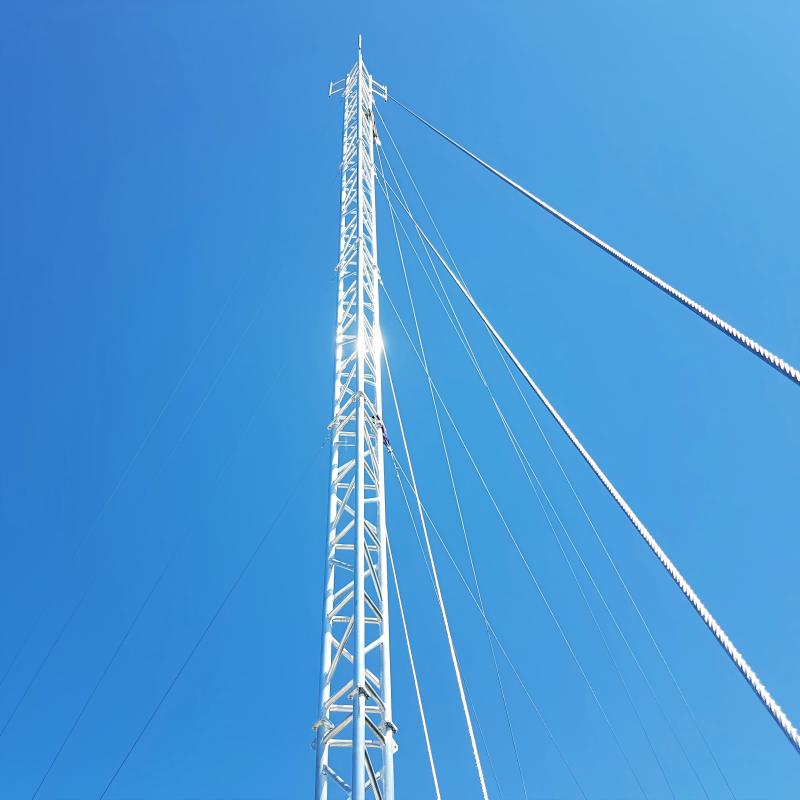

Guyed Towers are slender, vertical structures stabilized by high-tension steel cables (guy wires) anchored to the ground. Their design leverages tensioned support systems to achieve extreme heights (60–300m+) with minimal material use, making them ideal for wide-area coverage where land is abundant but budget is constrained.
| Product Name | Guyed Wire Antenna Tower |
| Type | Telecommunication Tower |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000 ETC. |
| Height | 9M-210M |
| Wind Speed | 0--330KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700: Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 25 years |
| Supply Ability | 2,500 Tons Per Month |
| Parameter | Specification |
|---|---|
| Tower Mast |
• Height: 60–300m (200–1,000 ft) • Material: Galvanized steel tubes/sections (ASTM A500) • Profile: Triangular/quadrangular lattice; tubular monopole • Weight: 5–50 tons |
| Guy Wires |
• Quantity: 3–4 sets (typically 3–5 wires/set) • Material: EHS (Extra High Strength) steel (1,550+ MPa yield) • Diameter: 12–36mm • Tension: 10–20% of breaking strength |
| Anchors |
• Type: Concrete block (deadman), screw-in, or rock anchors • Size: 3–12m³ concrete / 2m deep helix • Load Capacity: 50–500 kN per anchor |
| Foundation |
• Central Pad: Reinforced concrete (5m x 5m x 3m) • Anchor Spacing: 40–80% of tower height |

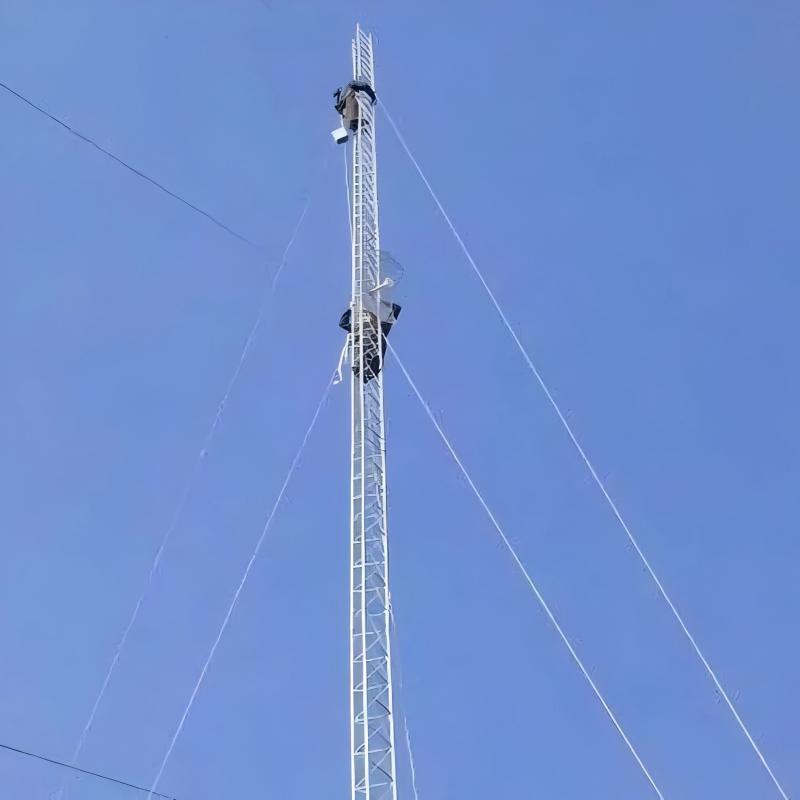

Product Details:
_1750916705_WNo_800d800.webp)
_1750916742_WNo_800d800.webp)
Applications:
| Use Case | Typical Height | Payload Example |
|---|---|---|
| AM/FM Radio Broadcast | 150–300m | 50kW AM mast + FM panel antennas |

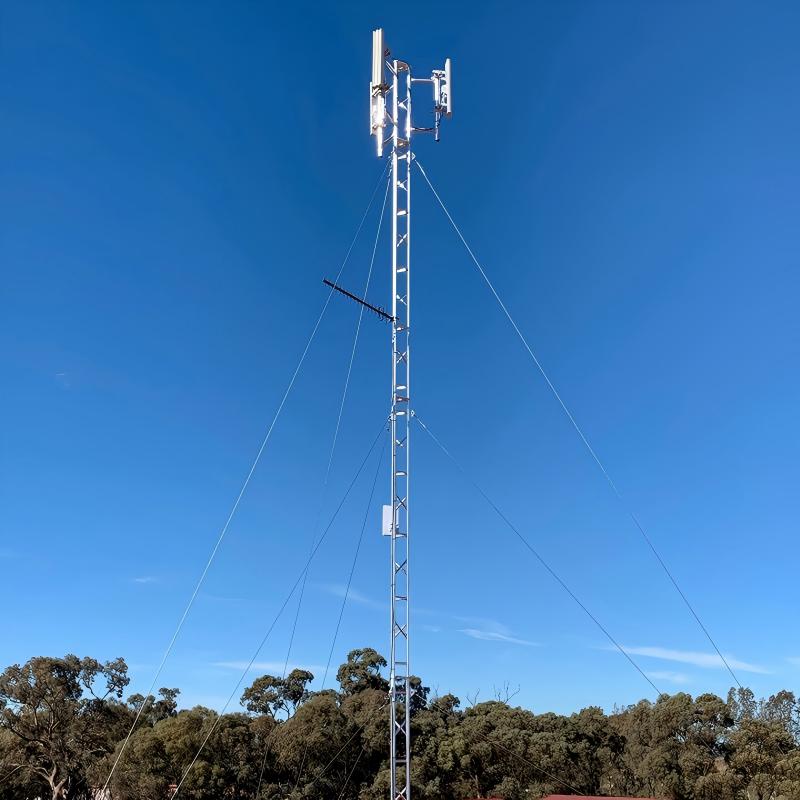

| Rural Cellular | 80–150m | 6x sector antennas + 2x 1.2m microwave |
| VLF/HF Communications | 200–300m+ | Top-loaded wire arrays (Navy/aviation) |
| Wind Sensing | 60–100m | Lidar/radar profilers |
| Factor | Guyed Tower | Lattice Tower |
|---|---|---|
| Height (Max) | 300m+ | 200m |
| Land Footprint | 1–5 acres (anchor radius) | 0.1–0.5 acres |
| Material Weight | 10–50 tons | 50–500 tons |
| Installation Time | 5–15 days | 20–60 days |
| Relocation | Practical (anchors reusable) | Nearly impossible |
_1750917064_WNo_800d800.webp)
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
