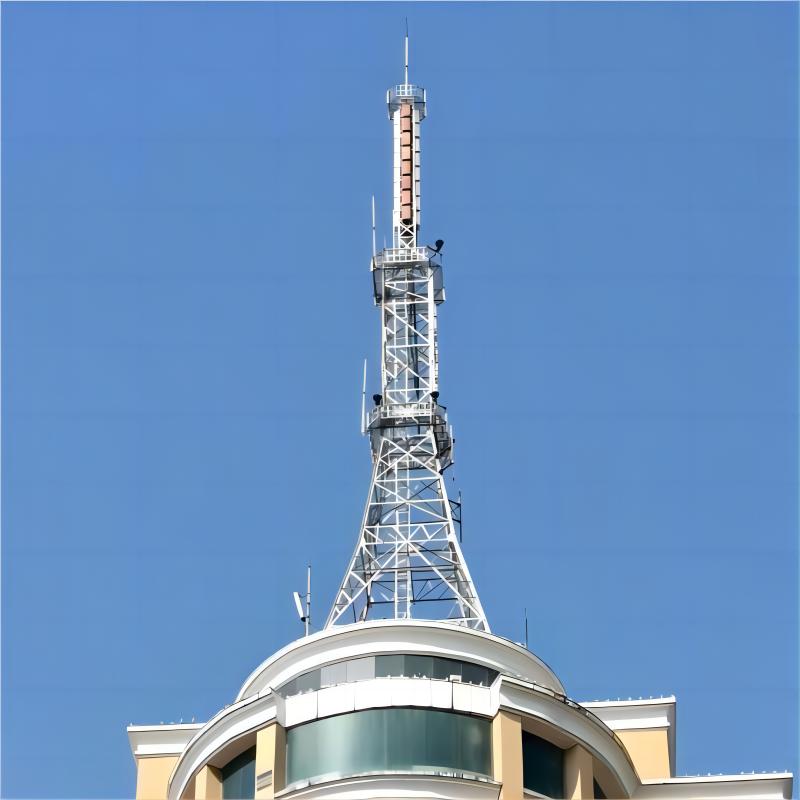

Optimized Lattice Geometry
Material: Fabricated from Q235B/Q345B carbon steel (yield strength 235-345 MPa) or ASTM A572 Gr.50 steel, ensuring high strength-to-weight ratios.
Modular Design: Pre-assembled 1.5–3m segments with flange or sleeve connections (e.g., 2–5 sections for 15–35m heights), enabling rapid assembly and height flexibility.
Wind/Ice Resilience: Engineered to withstand 30 m/s winds (108 km/h) and 8mm radial ice loads per GB 50009-2001 standards.

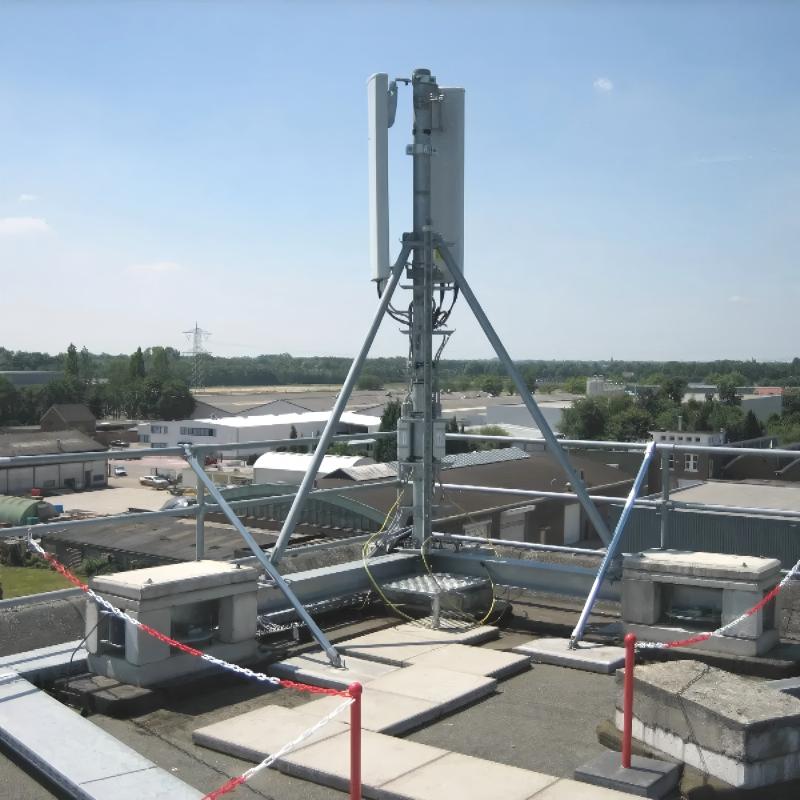

Foundation & Mounting Systems
Cross-Base Adaptors: Distributive "井"-shaped steel foundations reduce point loads by ≤40%, preventing roof damage.
Sloped Roof Kits: Adjustable screw jacks accommodate roof inclines up to 35° without structural compromise.
Anchor-Free Design: Direct bolting to roof beams via chemical anchors eliminates guy wires, preserving aesthetics.

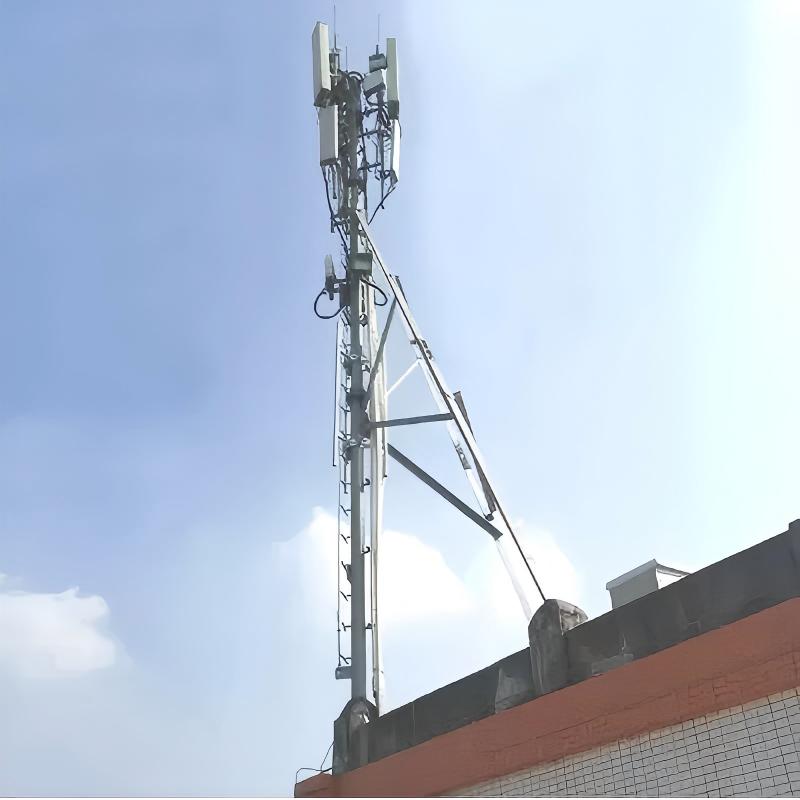

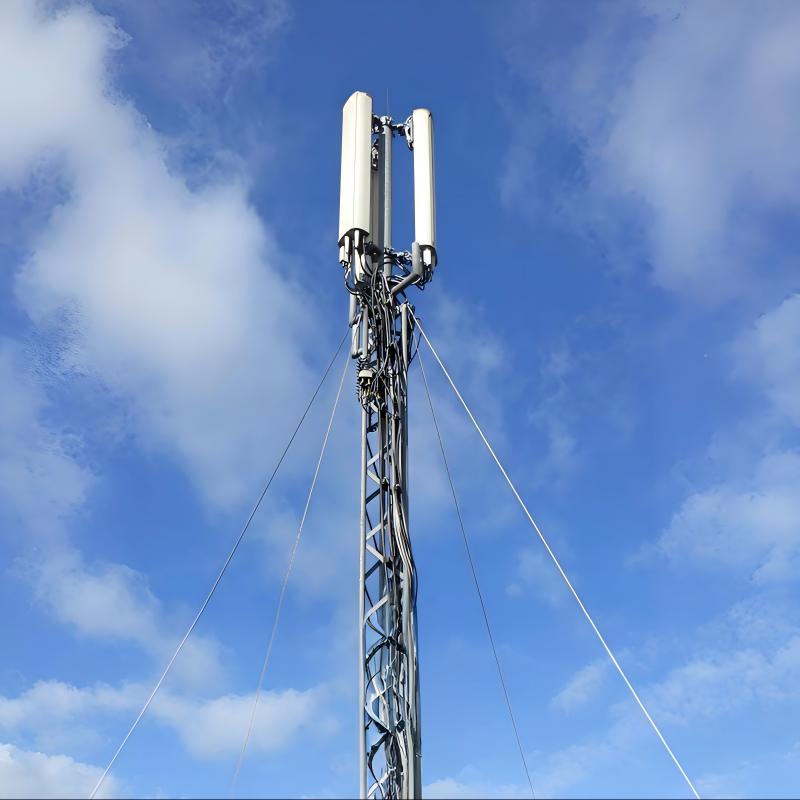

Product Details
_1755138448_WNo_800d800.webp)
_1755138518_WNo_800d800.webp)
_1755138554_WNo_800d800.webp)
| Parameter | Specification | Standard/Note |
|---|---|---|
| Height Range | 5–20m (extendable to 35m) | |
| Material | Q235B/Q345B, ASTM A572 Gr.50 | Hot-rolled angle sections |
| Galvanization | ≥85µm zinc coating (ASTM A123) | 30+ year lifespan |
| Wind Resistance | 30 m/s (108 km/h) | GB 50009-2001 |
| Load Capacity | 5–6 tons (20m tower) | Includes antennas + gear |
Hot-dip Galvanization
Strictly according to ASTM-A123 standard. Minimum Zinc Thickness is over 86 Microns.
Package Reference
_1755138835_WNo_800d599.webp)
_1755138868_WNo_1200d900.webp)
_1755138899_WNo_1200d900.webp)
