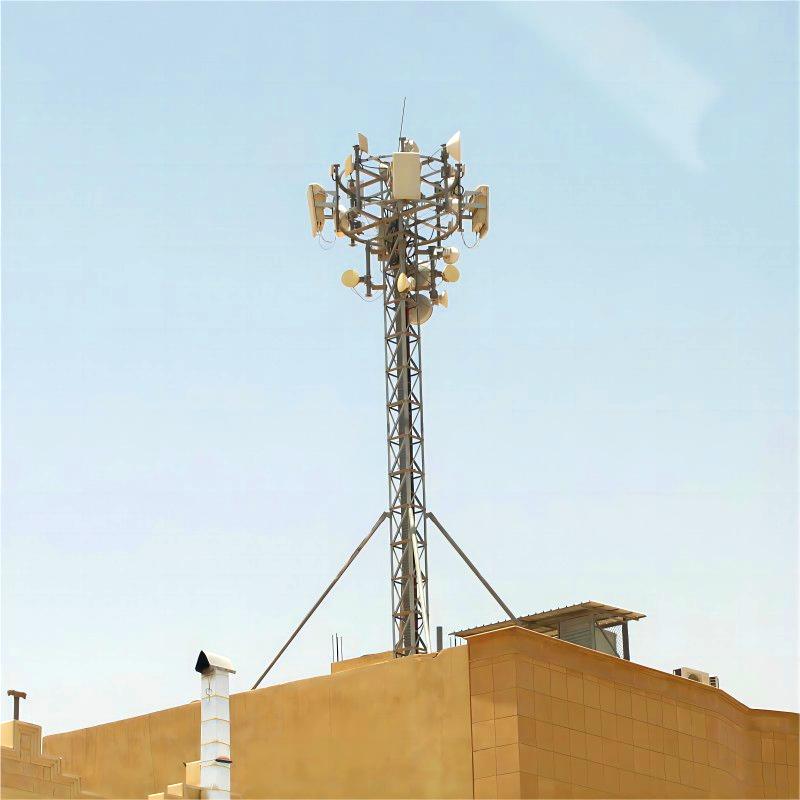

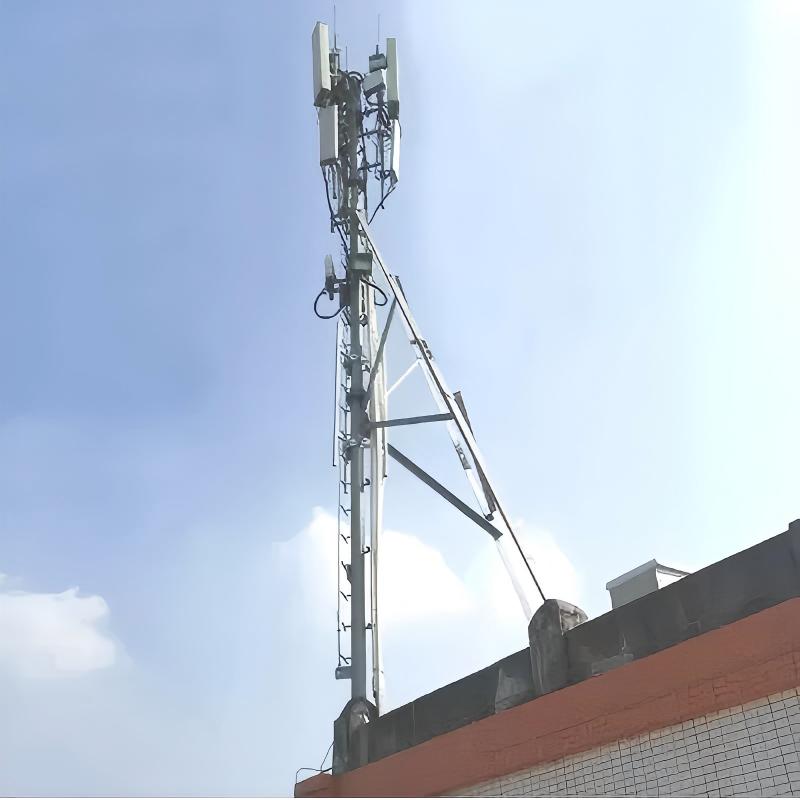

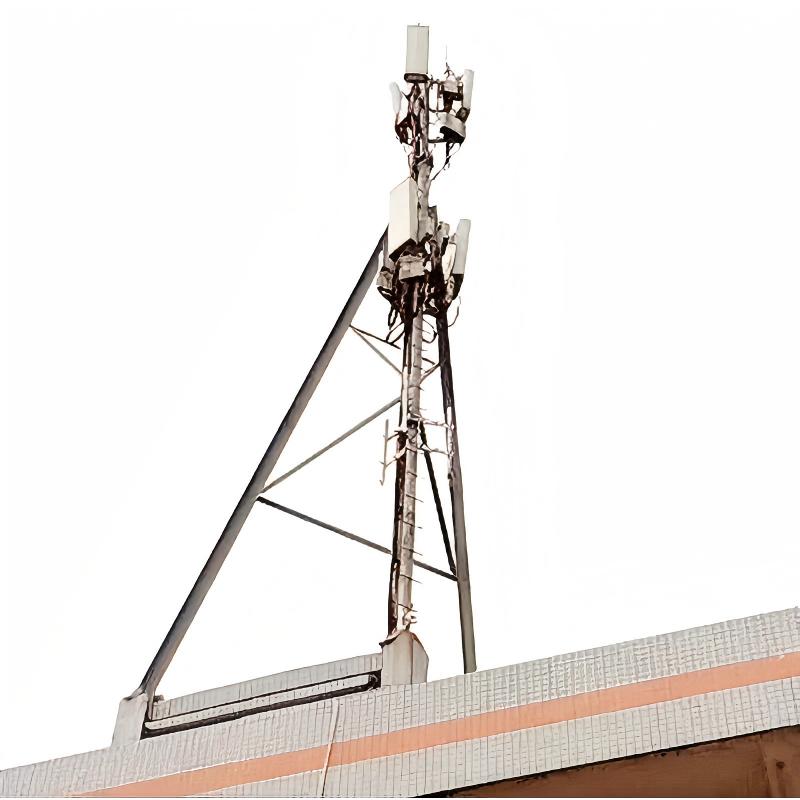

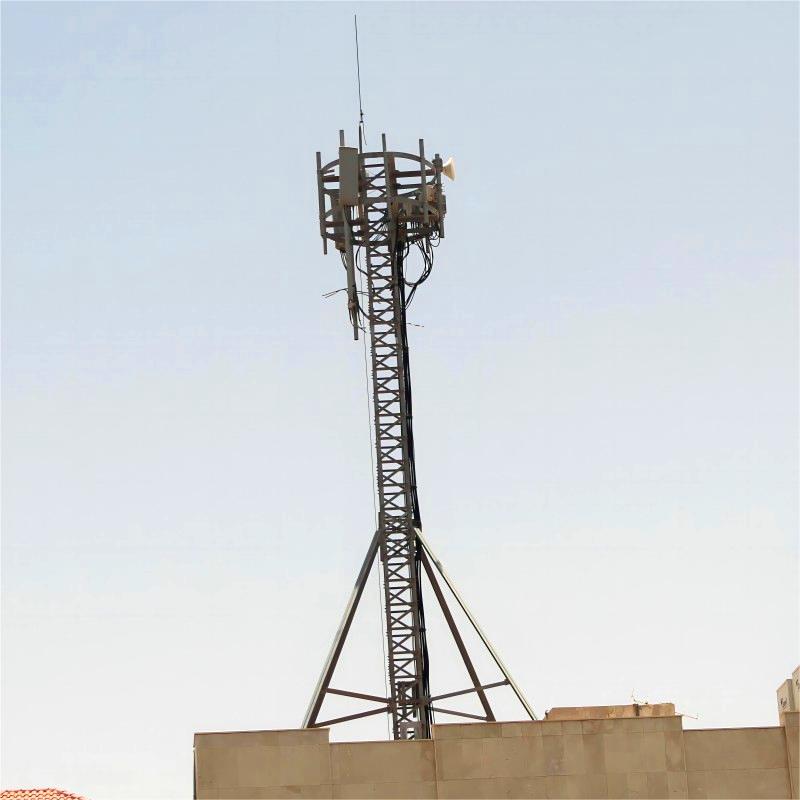

Roof Top Telecom Towers are engineered steel structures mounted on buildings to host antennas, microwave links, and small cells. They solve "not-spots" in cities where ground towers are impractical due to zoning, cost, or space limitations. Deployment requires rigorous structural analysis and compliance with building codes, wind loads, and RF safety regulations.
| Parameter | Specification |
|---|---|
| Structural Design |
• Height: 6–50m (20–165 ft) • Type: Self-supporting (monopole/tripod) or guyed • Material: Galvanized steel (ASTM A123) or aluminum • Load Capacity: 500–5,000 kg (antennas + ice/wind) |
| Mounting System |
• Base Plate: Custom-sized to distribute load • Anchors: Epoxy-grouted bolts (ASTM F1554) • Vibration Dampers: Tuned mass/viscoelastic absorbers |
| Antenna Configuration |

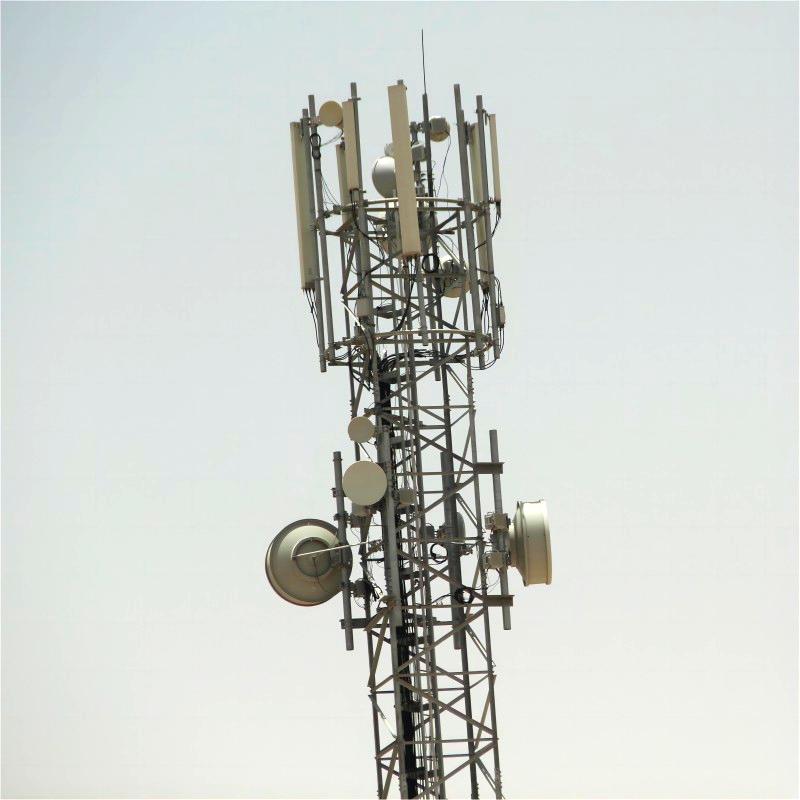

• Capacity: 3–9 sector antennas (4G/5G), 1–4 microwave dishes • Placement: Top-mounted platforms or side brackets |
| Environmental Resilience |
• Wind Rating: 150–250 km/h (site-specific) • Seismic: IBC 2021 Zone 4 compliance • Corrosion: ISO 12944 C5 coating (urban pollution) |
| Safety Systems |
• Lightning Protection: IEC 62305 Level 2 • Fall Arrest: Integrated ladder/cage systems • Ice Sensors: Auto-tilt antennas during icing |
Product Details:
| Scenario | Technical Solution | Example |
|---|---|---|
| Urban Macro Coverage | 30m monopole with 6x 5G mMIMO panels | NYC high-rise deployments |
| Enterprise Connectivity | 12m tower with private 5G + microwave backhaul | Hospital/university campuses |
| Emergency Comms | Rapid-deploy 6m tripod + satellite terminal | Disaster command centers |
| Neutral Host Networks | Multi-operator platforms (MOCN) | Stadiums/convention centers |
