| Code: | XH-T02 |
| Categories: | Telecommunication Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |

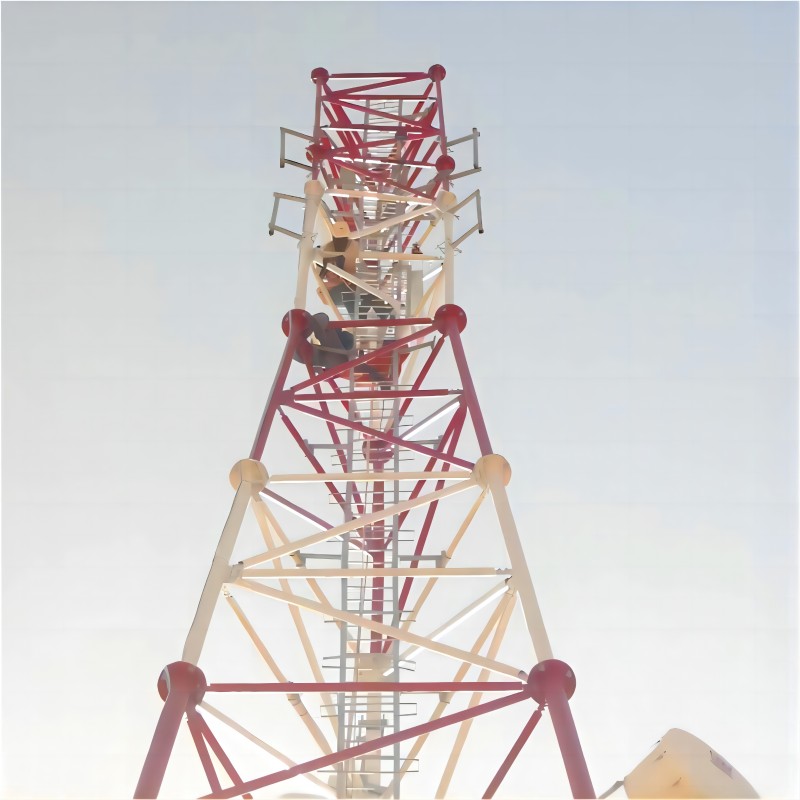

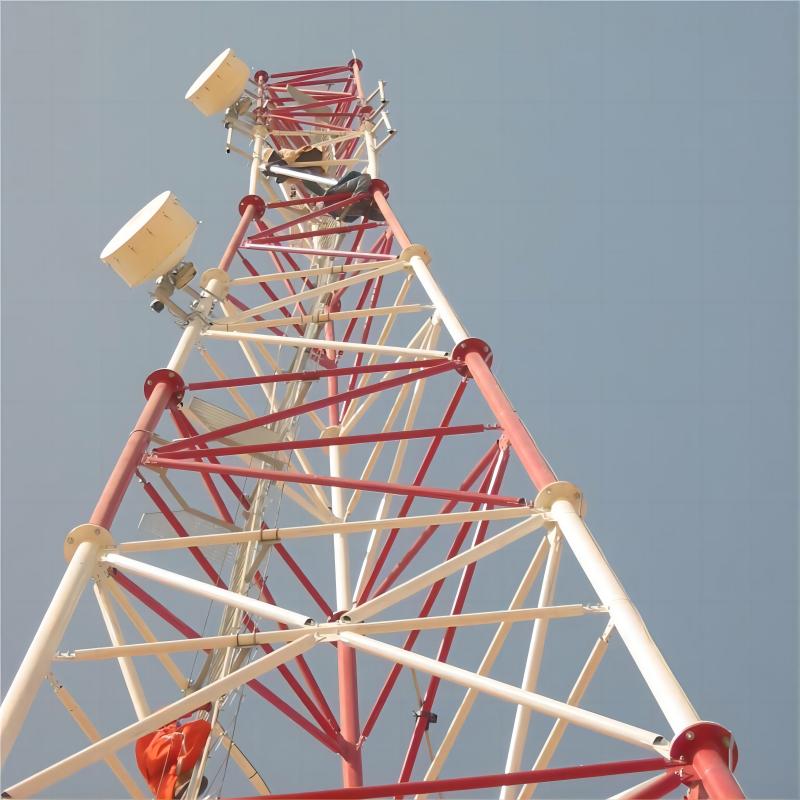

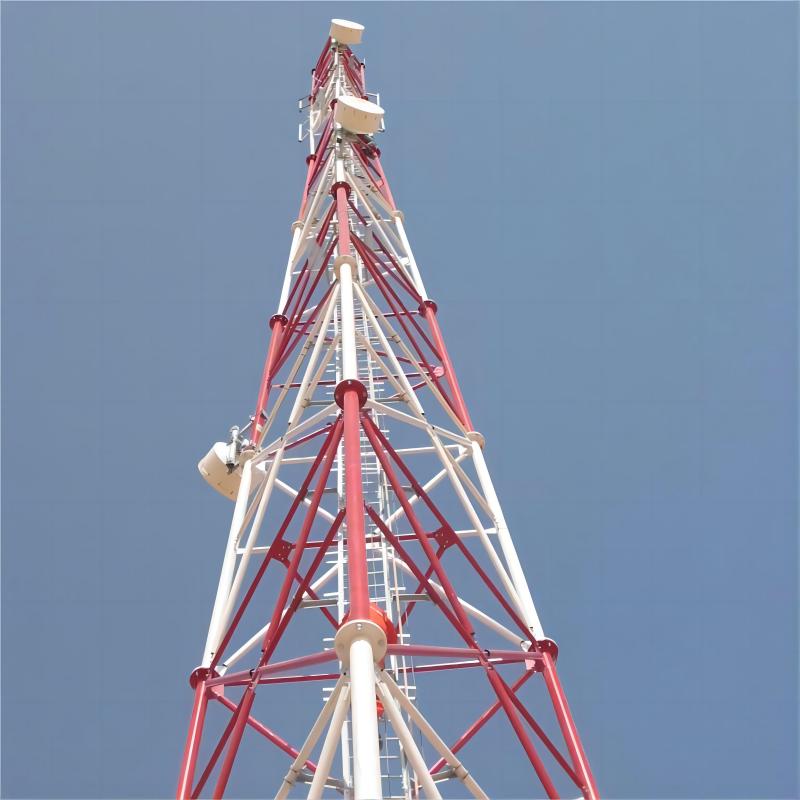

1. Structure
Height: 50 meters (~164 feet)
Legs: 3 tubular steel legs (triangular base for stability)
Material: Hot-dip galvanized steel (anti-corrosion)
Load Capacity: Supports 6–12 antennas + ancillary equipment (RRUs, transmission dishes)
Wind Resistance: Designed for 150–200 km/h wind speeds (varies by region)
2. Foundation
Reinforced concrete raft/pile foundation (depth: 4–6m)
Anchor bolts secure legs to baseplate
3. Key Components
Platforms: Mid-height maintenance platforms with safety rails
Ladder System: Internal/external vertical ladders with fall arrestors
Waveguides: Integrated cable trays for fiber/power lines
| Product Name | Tubular Steel Tower |
| Type | Telecommunication Tower |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000 ETC. |
| Height | 50 M |
| Wind Speed | 0--330KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700: Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50, GR65 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ EN/0025: SS400 |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 25 years |
| Supply Ability | 2,000 Tons Per Month |
Product Details:
Hot-dip Galvanization
Strictly according to ASTM-A123 standard.
Paint as Requirement
_1750749942_WNo_800d481.webp)
_1750749968_WNo_1200d900.webp)
_1750750016_WNo_800d600.webp)

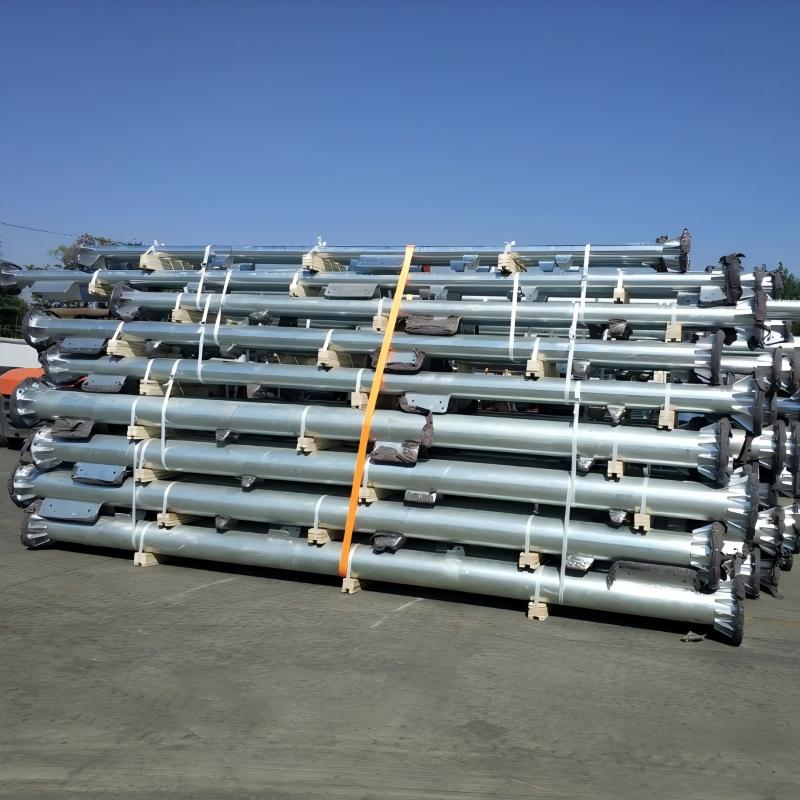

Package Reference:
_1750750085_WNo_700d450.webp)
_1750750117_WNo_800d800.webp)
_1750750140_WNo_600d450.webp)
| Scenario | Advantages |
|---|---|
| Rural Coverage | Cost-effective for wide-area 4G/LTE coverage; withstands harsh weather |
| High-Capacity Sites | Supports multiple carriers (MNOs) with heavy antenna loads |
| Mountainous Terrain | Stable on uneven ground; adaptable foundation design |
| Emergency Comms | Rapid deployment for disaster recovery networks |
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
