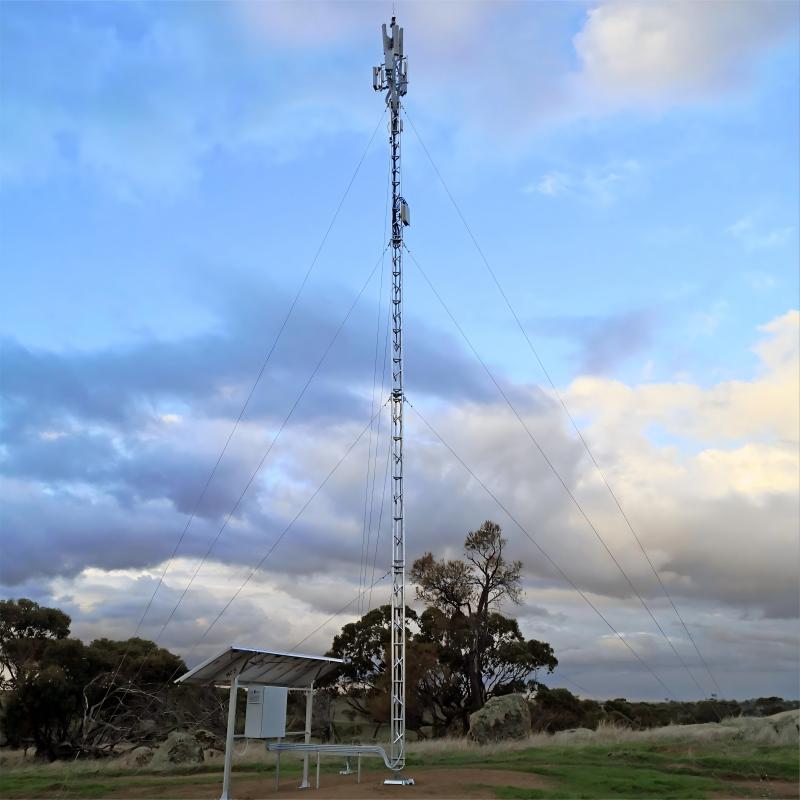

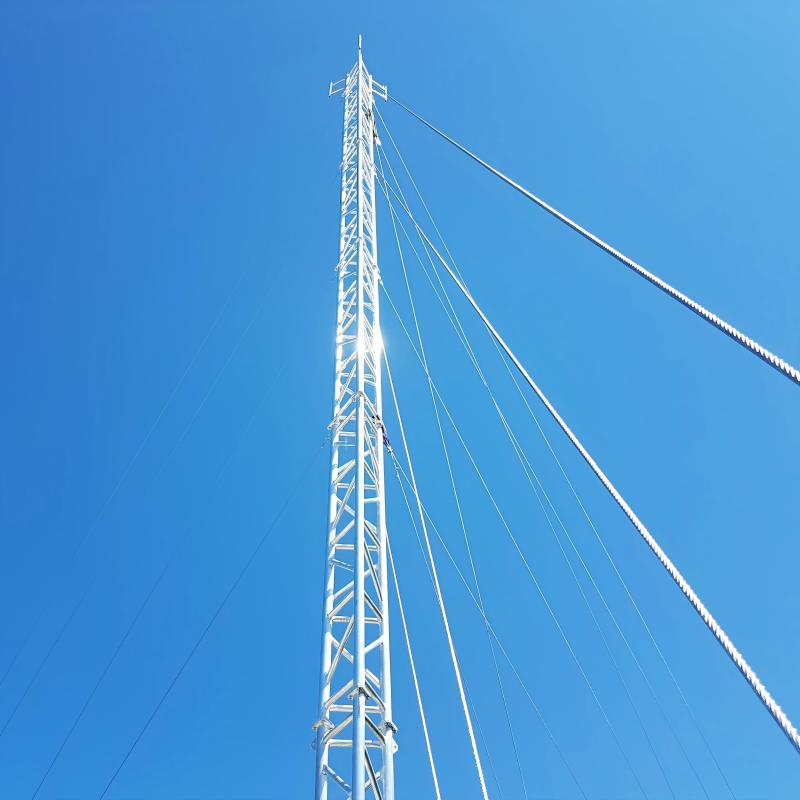

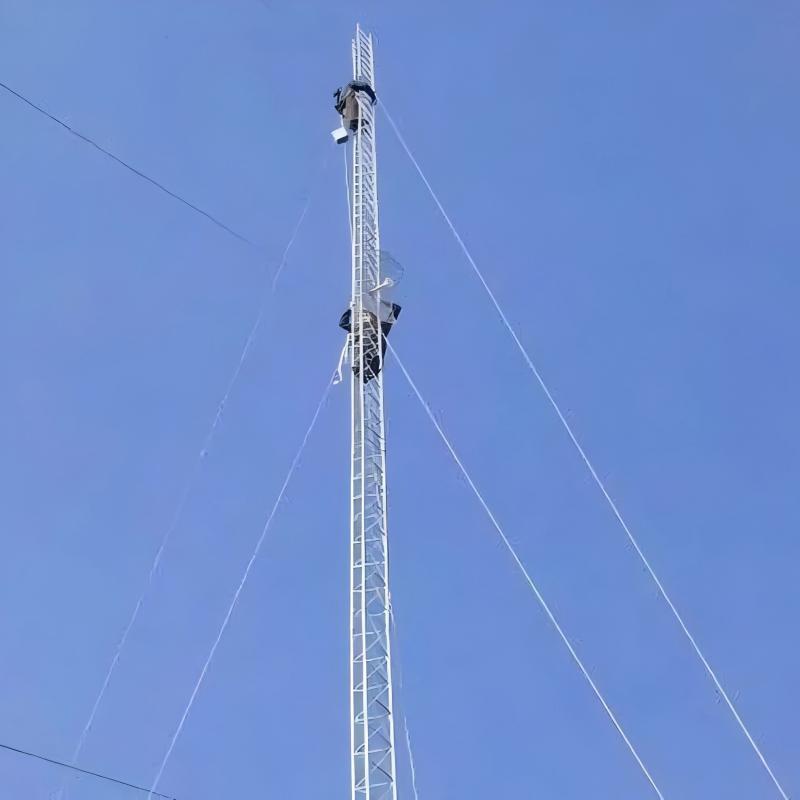

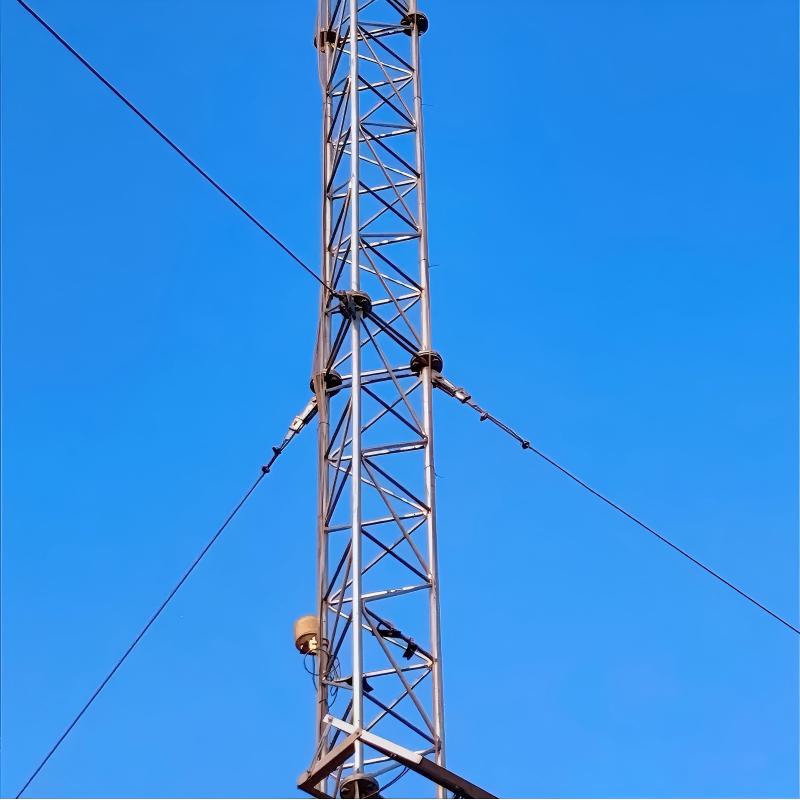

Structure and Design
1. Central Mast: A slender, vertical steel or lattice structure (typically 200–2,000 feet tall).
2. Guy Wires: Multiple high-tension steel cables anchored to the ground, providing lateral stability.
3. Anchors: Concrete or ground-embedded systems that secure the guy wires, spaced radially around the tower.
4. Antenna Mounts: Host 5G antennas, Massive MIMO arrays, and microwave dishes for backhaul connectivity.
Description:
Product Name: Guyed Wire / Guyed Mast Tower
Type: Telecommunication Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Height: 9M-210M
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization: ASTM A123/150 1461
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 2,500 Tons Per Month
Product Details
_1755655479_WNo_800d800.webp)
(1)(1)_1755655514_WNo_600d450.webp)
_1755655669_WNo_500d282.webp)
_1755655690_WNo_500d280.webp)
_1755655951_WNo_1200d900.webp)
_1755655968_WNo_800d800.webp)
_1755656155_WNo_800d860.webp)
_1755656181_WNo_800d637.webp)
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
