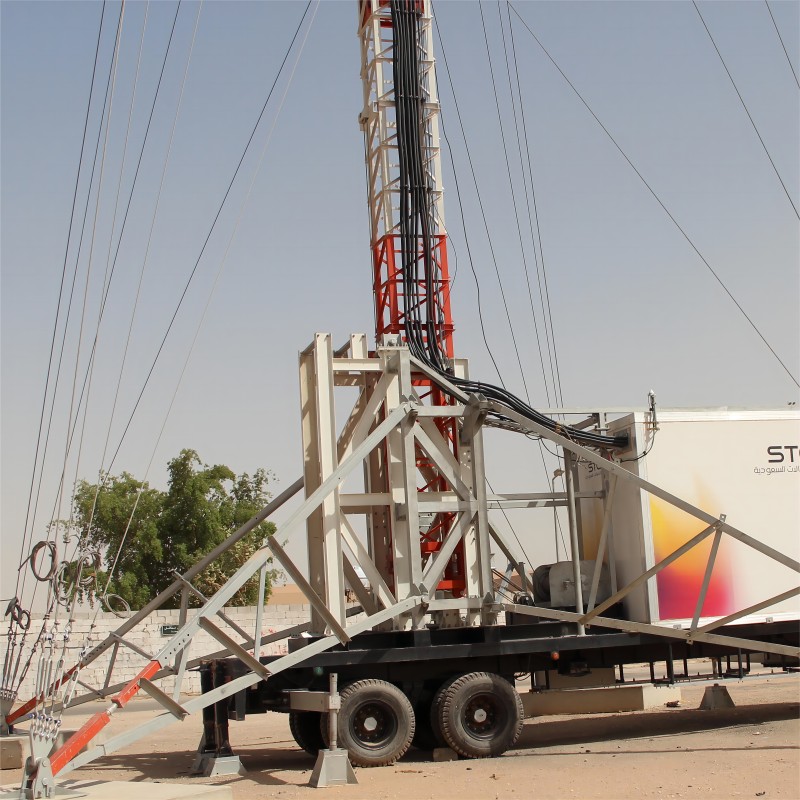

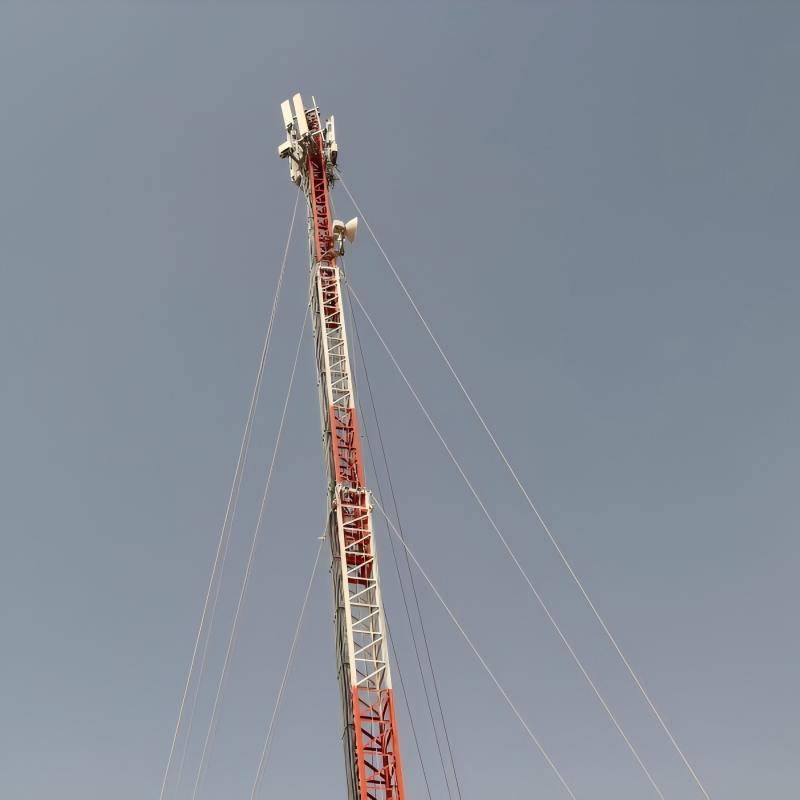

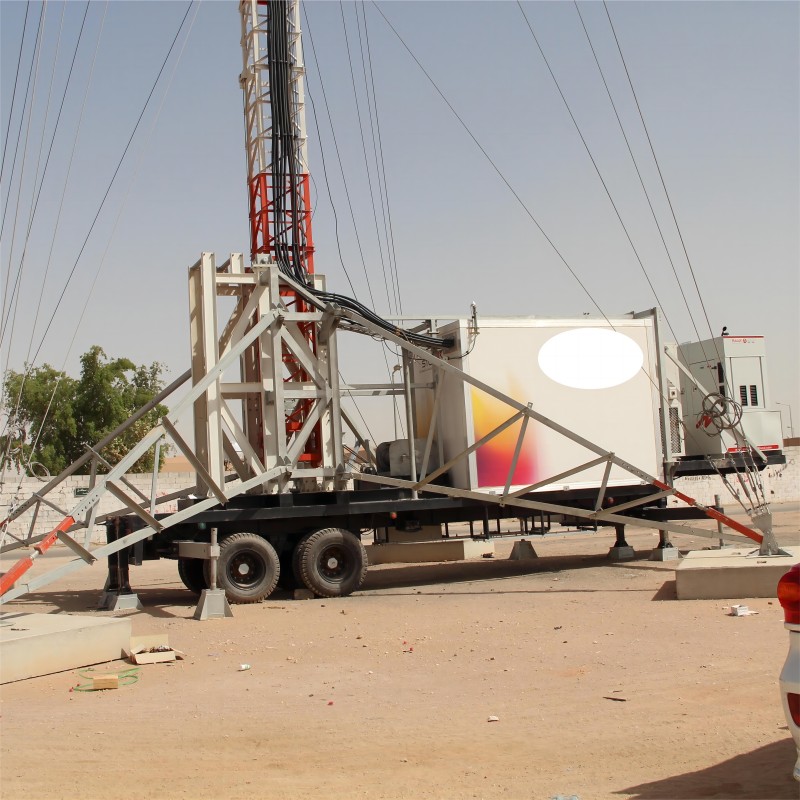

35M Cellular on Wheels (COW) – a high-capacity mobile tower engineered for rapid deployment in complex urban/rural scenarios requiring extended coverage and heavy payloads:
| Parameter | Specification |
|---|---|
| Mast System | 5-stage hydraulic telescopic (carbon steel) |
| Deployed Height | 35m (115 ft) |
| Collapsed Height | 9.5m |
| Payload Capacity | 800–1,200 kg (antennas + cabling) |
| Mast Raise Time | 20–30 mins |
| Trailer Type | Quad-axle gooseneck with ABS/ESC |
| Stabilization | Quad hydraulic outriggers (6m span) |
| Max Operational Wind | 90 km/h (56 mph) |
| Survival Wind (stowed) | 160 km/h (100 mph) |
| Component | Capacity |
|---|---|

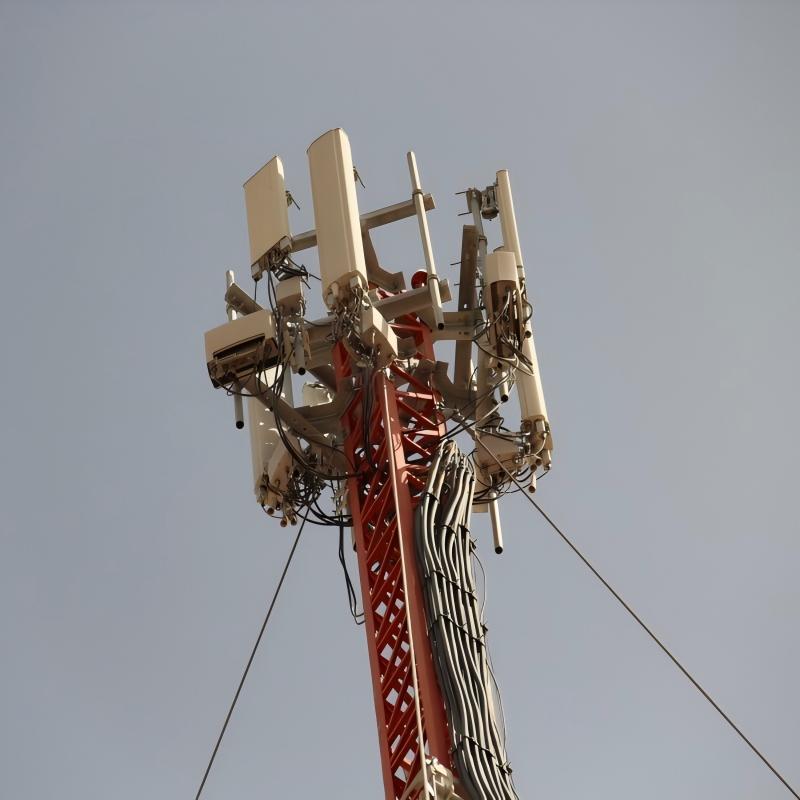

| Antennas | 9–12x 4G/5G sectors (incl. mMIMO 64T64R) |
| Microwave Backhaul | 4x 0.9m dishes (E-band/V-band) |
| RRUs | 4–6 units (C-band/mmWave) |
| Baseband | vRAN server (2U chassis) |
| Backhaul Throughput | 20Gbps (fiber/microwave aggregate) |
Product Details:
Material: High-strength steel (ASTM A572 Gr. 50)
Section Walls: 10–16mm thickness (tapered profile)
Guiding System: Linear bearings + roller chains
Safety: Dual hydraulic lock valves + mechanical pins
Frame: Weldox 700 steel (yield: 700 MPa)
Suspension: Air-ride with auto-leveling
Brakes: Pneumatic discs with anti-lock
Dimensions (Stowed): 14.5m L × 3.2m W × 4.6m H
Shipment:
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
