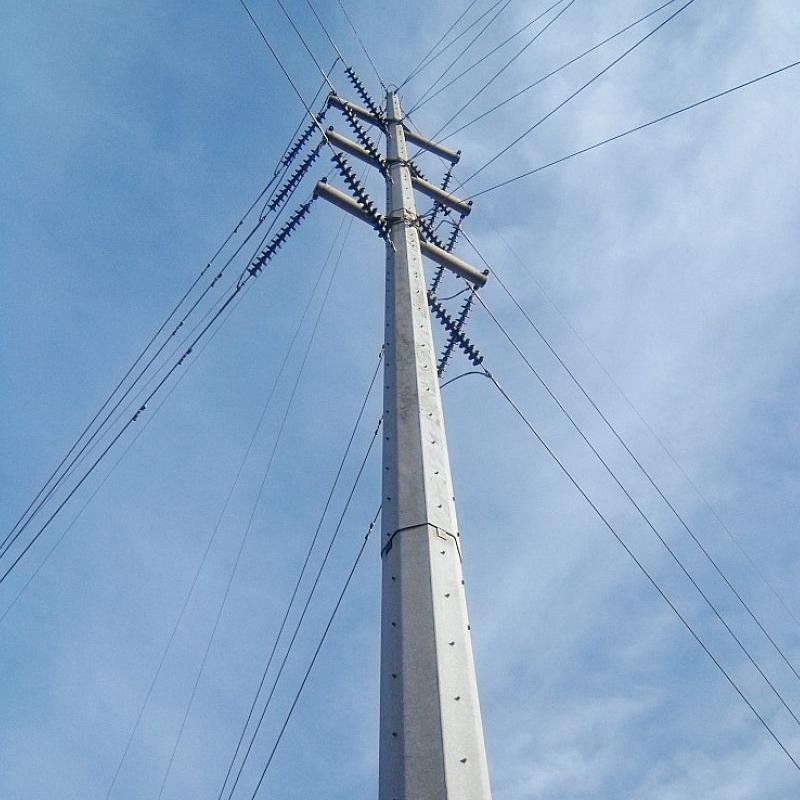

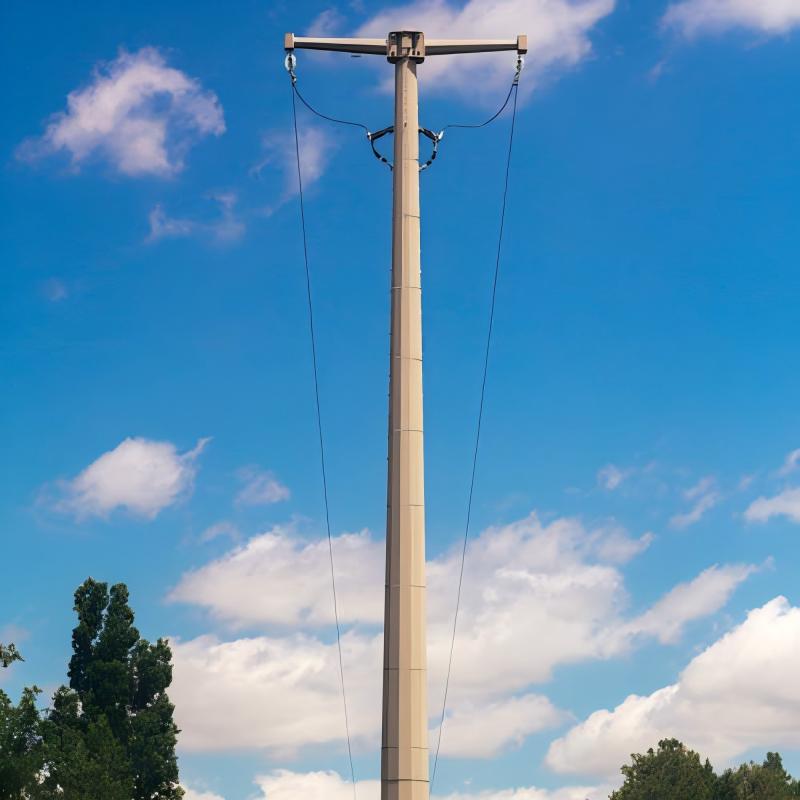

Transmission Utility Steel Poles are tubular, monopole structures supporting overhead conductors for electrical power transmission (typically 69kV to 500kV). Unlike lattice towers, they use a single tubular shaft (often tapered) with welded or bolted accessories, offering a compact footprint while maintaining high strength-to-weight ratios. They serve as critical infrastructure for:
Urban/Suburban Power Corridors: Minimizing right-of-way (ROW) width.
Aesthetic Integration: Blending with developed landscapes.
Space-Constrained Routes: Roadways, rivers, or protected areas.
Materials & Fabrication:
Steel Grade: ASTM A572 (high-strength low-alloy), A500 (cold-formed), or weathering steel (Corten).
Protection: Hot-dip galvanizing (standard) or advanced coatings (epoxy/polyurethane).
Form: Round, polygonal (octagonal/hexagonal), or square tapered tubes. Tapering optimizes load distribution.
Structural Components:
Shaft: Primary load-bearing element; wall thickness increases toward the base.
Base Plate: Anchored to foundation via anchor bolts (e.g., ASTM F1554).

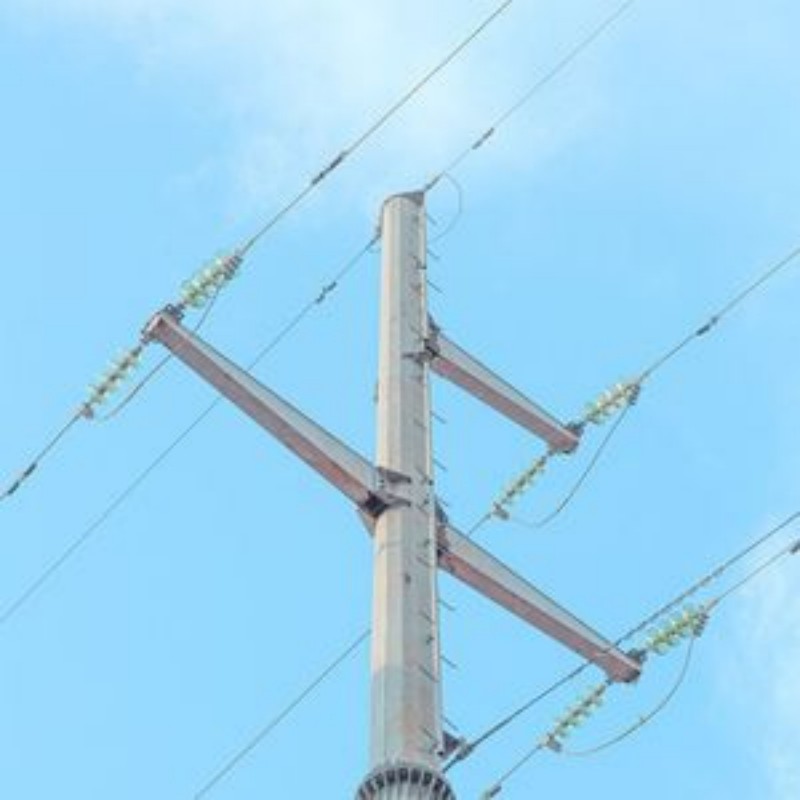

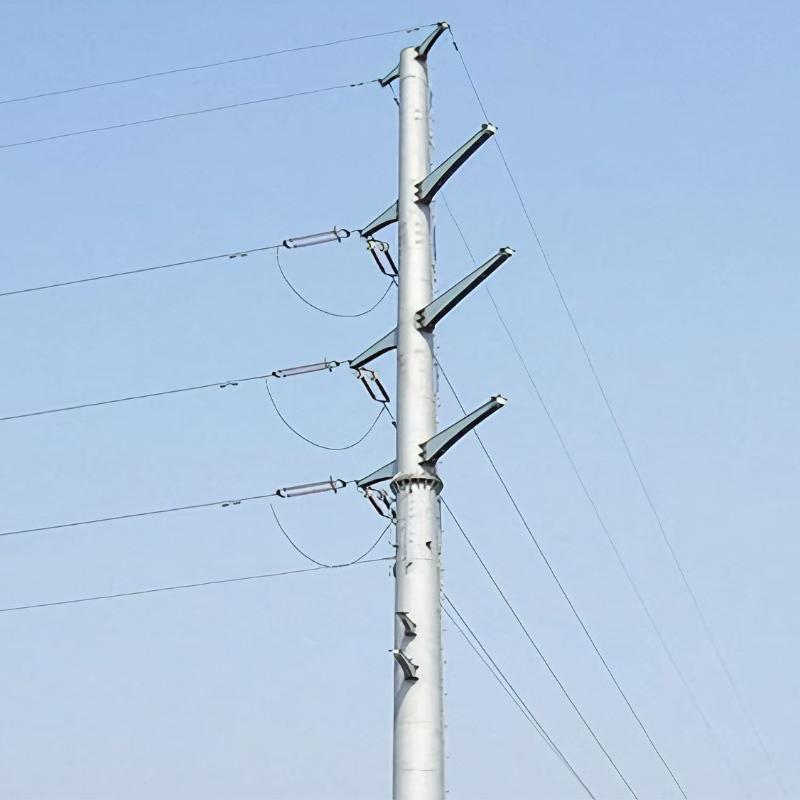

Cantilevered Arms: Welded or bolted crossarms supporting insulators/conductor bundles.
Grounding Lugs: Welded attachments for down-conductor connections.
Climbing Systems: Integrated steps/rungs for maintenance.
Foundation Types:
Direct Embedment: Shaft buried 10–20% of height (common for shorter poles).
Concrete Caisson: Reinforced concrete pier with embedded base plate (dominant for >100kV).
Anchor Bolt: For rocky terrain or seismic zones.
Product Details:
_1750985750_WNo_700d466.webp)
_1750985776_WNo_600d450.webp)
Production Procedure
_1750985893_WNo_946d225.webp)
_1750985931_WNo_940d224.webp)
Package Reference
_1750986036_WNo_1200d900.webp)
_1750986070_WNo_1200d900.webp)
| Factor | Steel Pole Advantage |
|---|---|
| Space Efficiency | 70–80% narrower ROW (e.g., 30m vs. 100m for 230kV double-circuit). |
| Visual Impact | Sleeker profile; amenable to painting (sky-blend colors) or decorative treatments. |
| Installation Speed | Modular assembly; 50% faster erection with cranes. |
| Corrosion Resistance | Seamless tubular design eliminates moisture/dirt traps (vs. lattice joints). |
| Wildlife Protection | Smooth surface deters bird nesting; compatible with avian flight diverters. |
| Vandalism Resistance | No climbable lattice; reduced risk of unauthorized access. |
