| Nominal System Voltage | Standard BIL (kV Crest) | Heavy-Contamination BIL (kV Crest) |
|---|---|---|
| 345 kV | 1,050 | 1,300 (extra creep) |
| 500 kV | 1,550 | 1,800 (standard creep) |
| 765 kV | 2,050 | 2,050 (standard creep) |

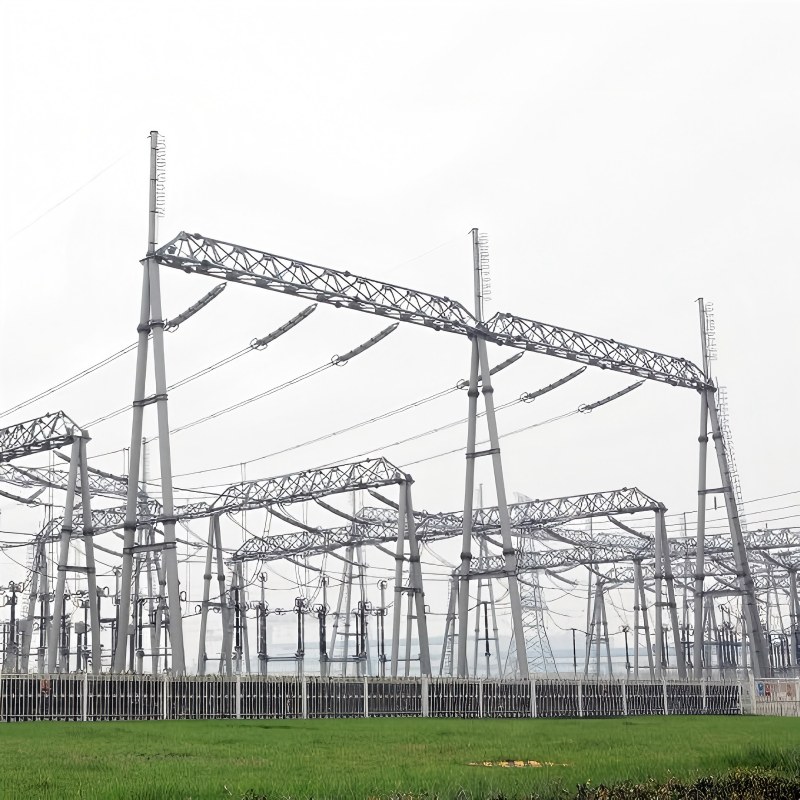

Bus Configuration and Switching Schemes
The architecture applies a terminal-count–driven configuration philosophy consistent with North American transmission planning practice:
Ring bus is the baseline for stations with one to four terminals at 201–765 kV. It provides high reliability with a minimal breaker count and a compact footprint.
Breaker-and-a-half is required beyond four terminals. This scheme delivers full redundancy: a fault on any bus section or breaker does not interrupt more than one circuit, and any breaker can be maintained without removing a line or transformer from service.

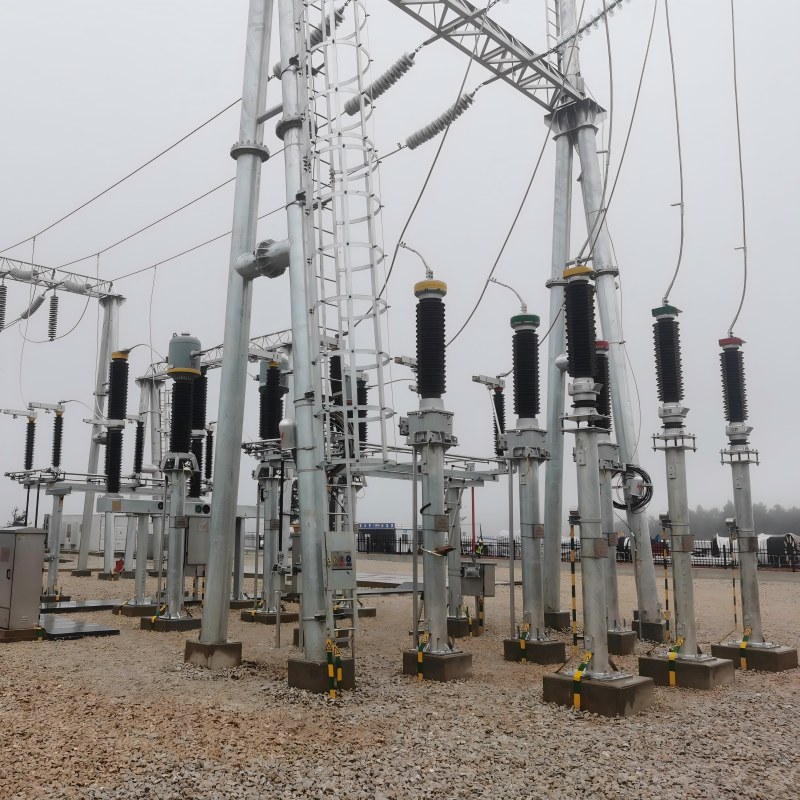

Four-breaker ring bus is a proven configuration for 765 kV generating and critical transmission stations, offering a high degree of operational flexibility with live-tank gas circuit breakers.

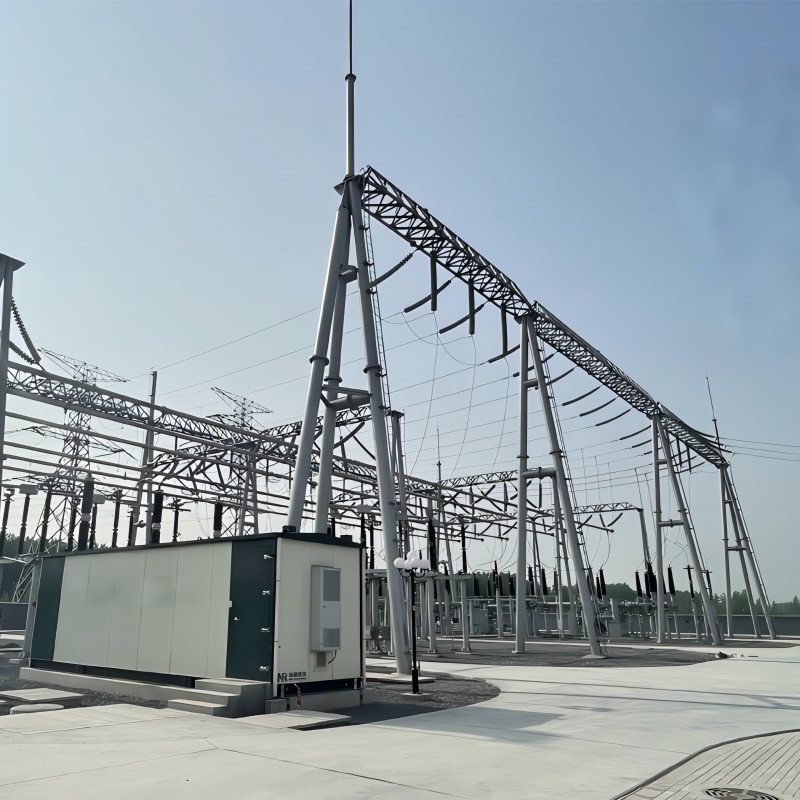

Stations are designed from the outset for predictable expansion—for example, converting from ring bus to breaker-and-a-half as terminals are added—so that the architecture remains aligned with long-range planning horizons rather than requiring wholesale reconstruction.

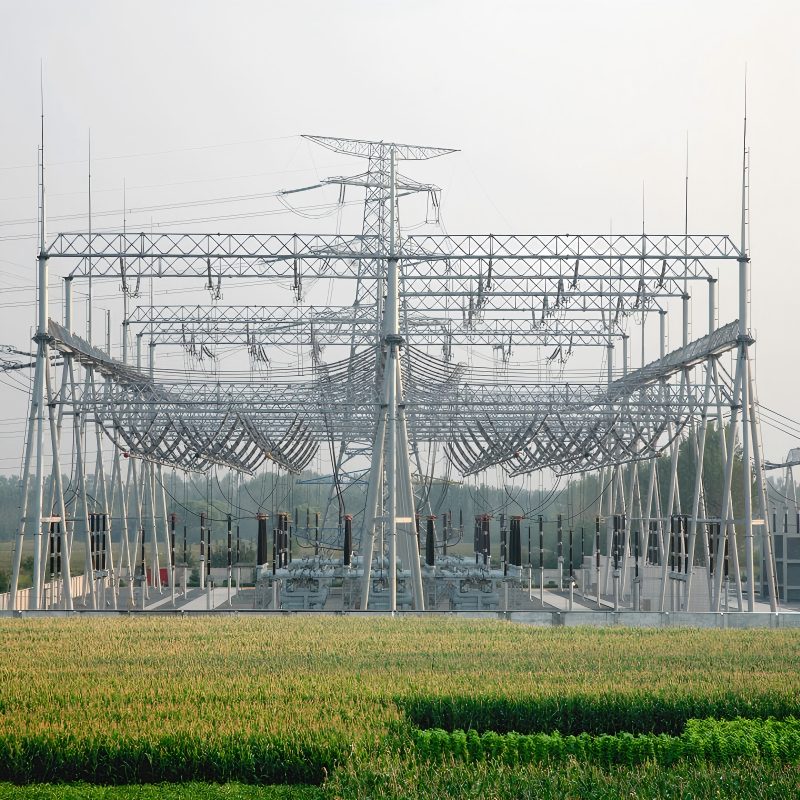

Hot-dip Galvanization
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities. The processing is strictly according to ASTM A123 standard.
