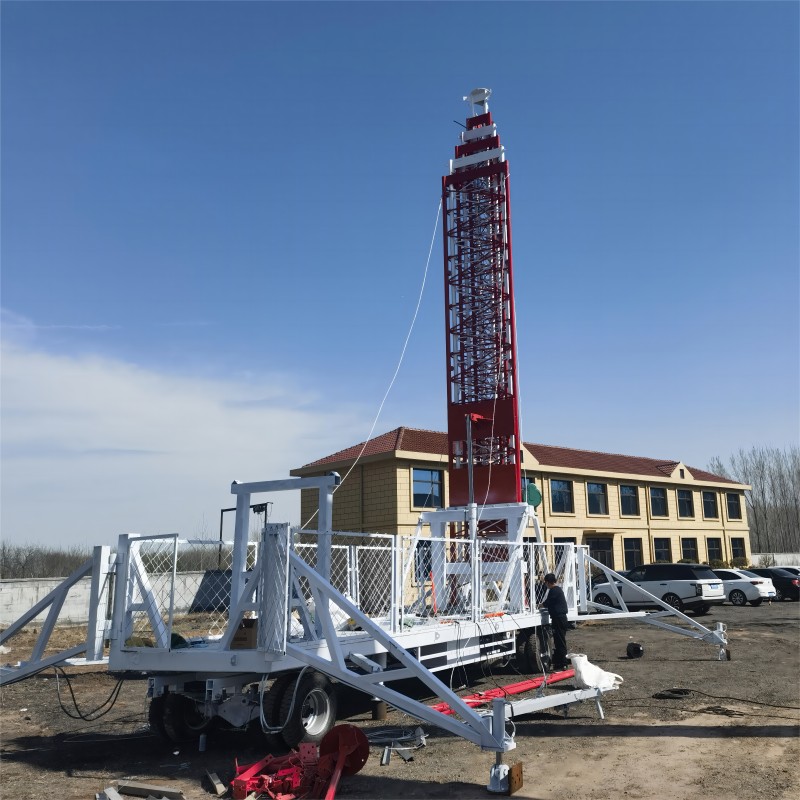

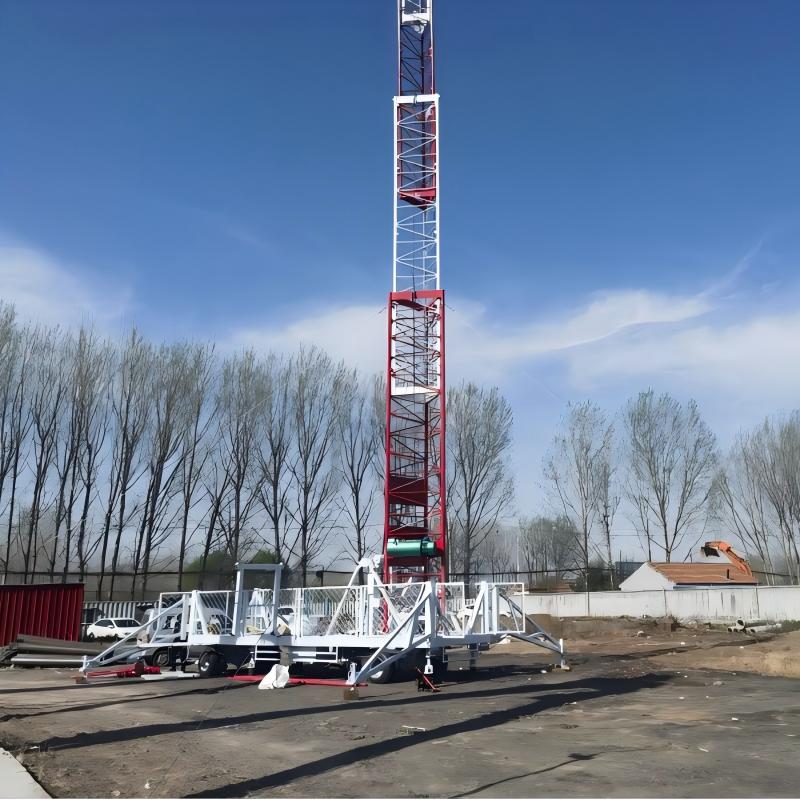

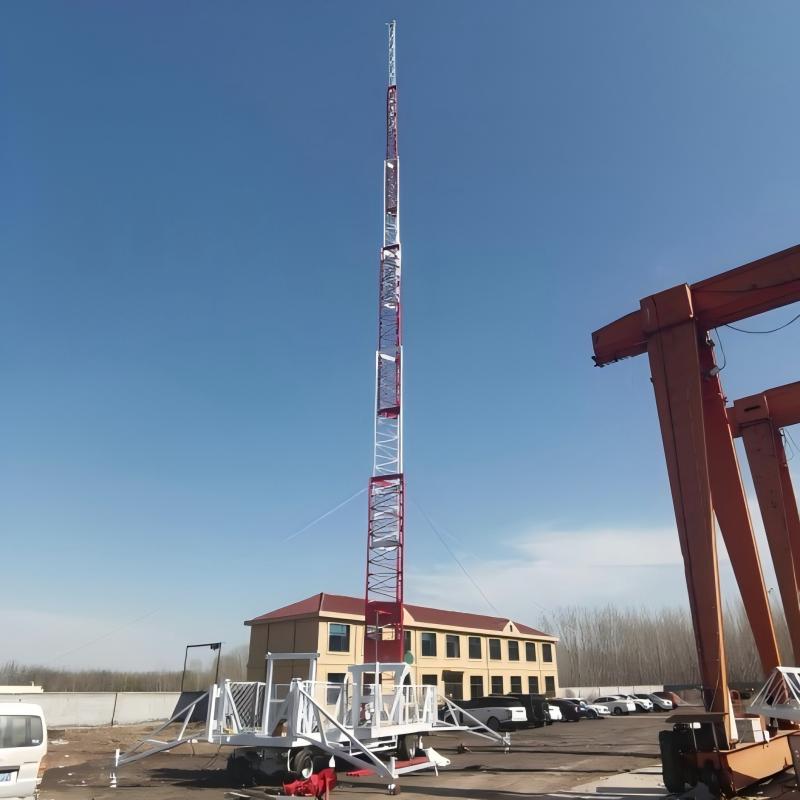

A 30m Cellular on Wheels (COW) is a self-contained, trailer-mounted mobile cell tower featuring a telescoping mast, integrated telecom equipment, and autonomous power. Designed for emergency response, events, or temporary coverage, it delivers macro-cell capabilities in <90 minutes.
| Product Name | 30M Movable Telecom Cell on Wheels (COW) |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000 ETC. |
| Height | 30 meters |
| Wind Speed | 0--300KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700:Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 20 years |
| Supply Ability | 20 SETS Per Month |
| Parameter | Specification |
|---|---|
| Mast System |

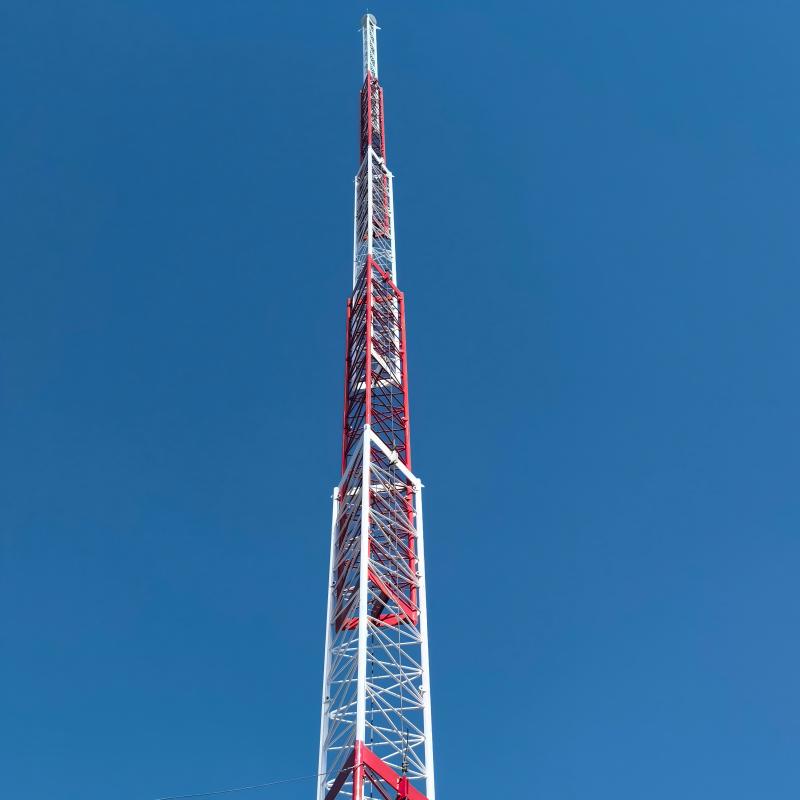

- Height: 30m (98 ft) collapsed to 8.5m during transport - Stages: 4–5 hydraulic telescoping sections - Material: High-strength steel (ASTM A500) or aluminum alloy - Lift Capacity: 350–550kg (antennas + cabling) - Lift Time: 10–20 mins |
| Mobility |
- Trailer: Tri-axle gooseneck with ABS brakes - Dimensions (stowed): 12m L × 2.5m W × 4.3m H - Tow Vehicle: Requires Class 5 truck (e.g., Freightliner) |
| Payload |
- Antennas: 6–9 sector antennas (4G/5G), 3–6 microwave dishes - Base Station: 2–3 RRUs, BBU, Ethernet backhaul - Power: 48V DC system + 30kVA diesel generator |
| Stabilization |
- Quad hydraulic outriggers (auto-leveling) - Foundation Pads: 1m² each for soft soil - Max Slope: 10° operating / 5° during lift |
| Environmental |
- Operating Temp: -30°C to +50°C - Survival Wind: 160 km/h (stowed), 100 km/h (deployed) - Corrosion Protection: ISO 12944 C5-M coating |
Disaster Recovery
Restores connectivity post-earthquake/flood (e.g., deployed in 4 hrs during 2023 Turkey earthquakes).
Mass Events
Handles 50K+ users at stadiums/festivals (e.g., Super Bowl pop-up networks).
Military/Tactical
Secure 5G/4G networks for field operations (EM-shielded variants available).
Construction Sites
Temporary coverage for remote infrastructure projects.
