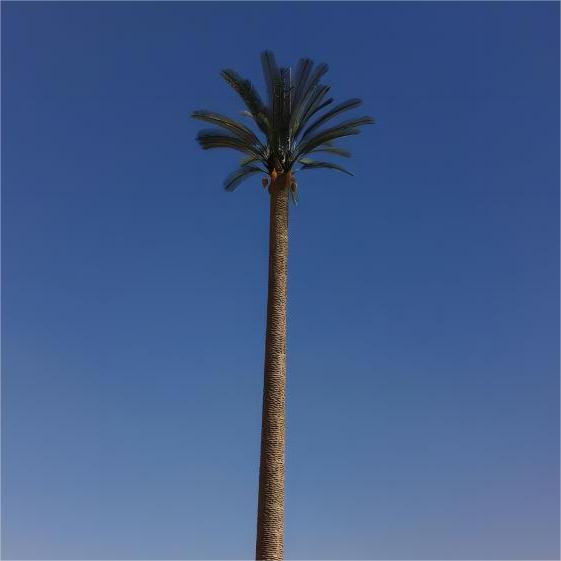

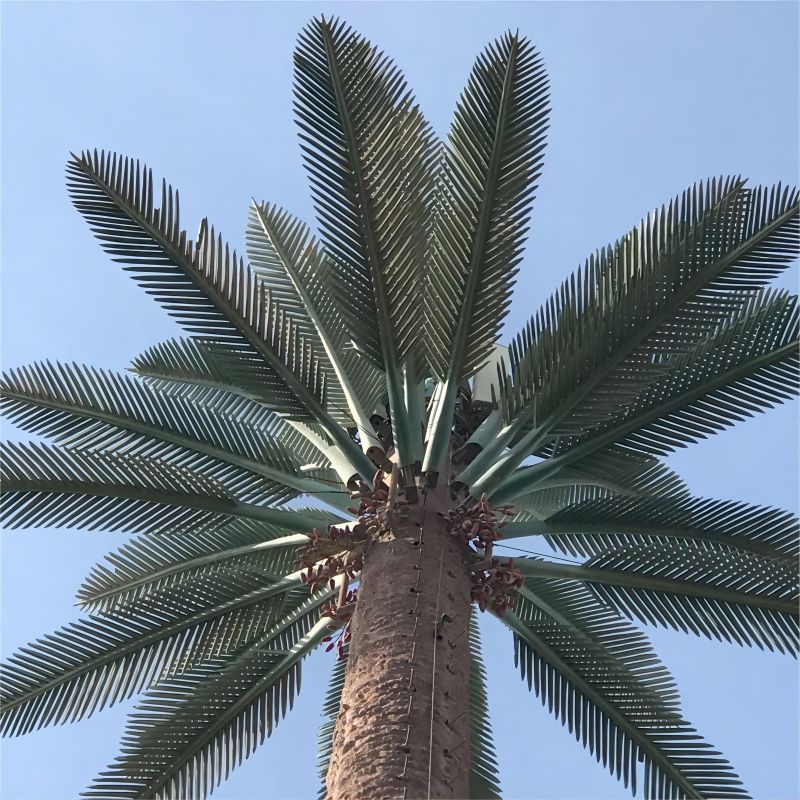

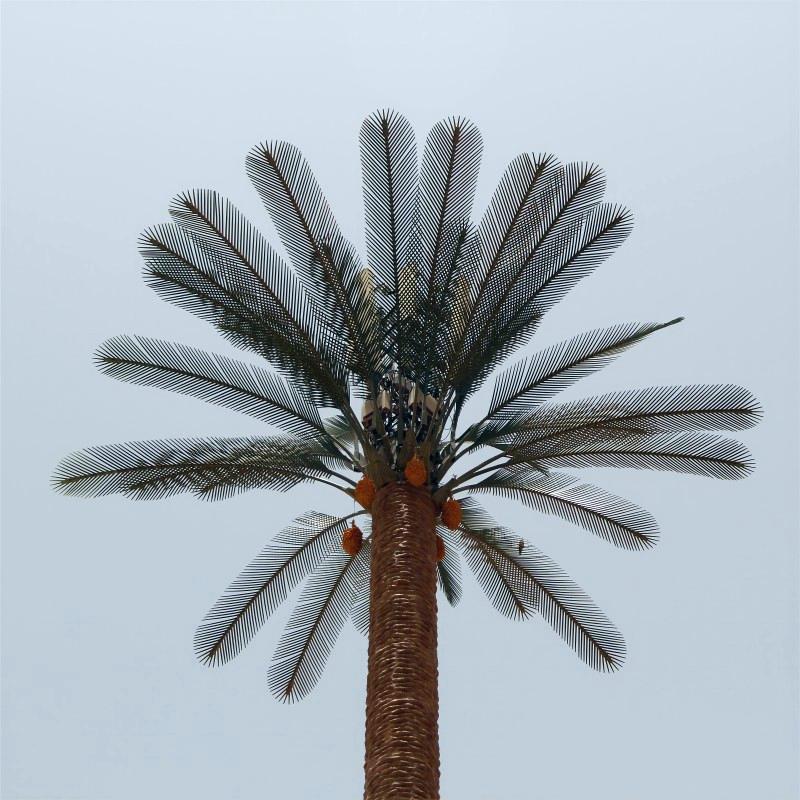

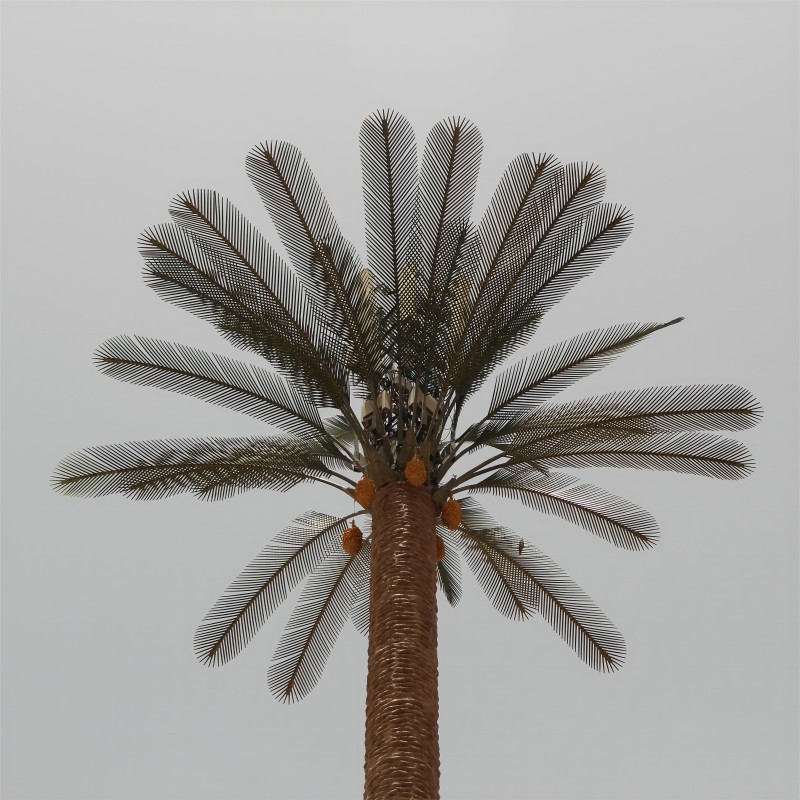

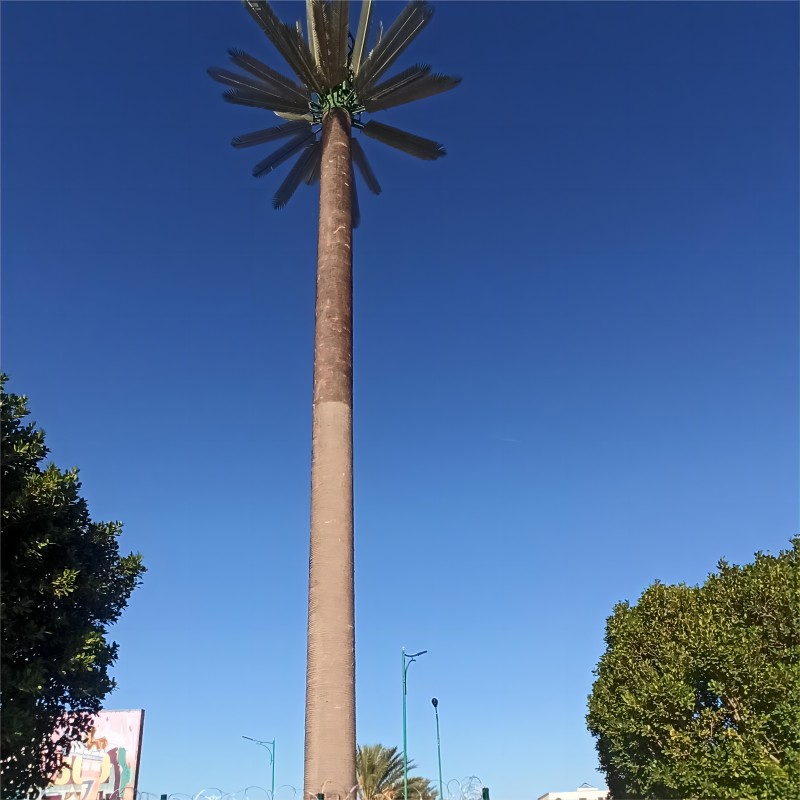

Bionic Palm Towers are stealth telecom structures designed to mimic natural palm trees while housing antennas, microwave dishes, and related equipment. Primarily deployed in coastal zones, resorts, urban landscapes, and ecologically sensitive areas where traditional towers are prohibited or visually disruptive.
Description:
| Product Name | Camouflaged Palm Tree Tower |
| Type | Telecommunication Tower |
| Height | 30 M |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc. |
| Wind Speed | 0–330 KM/H |
| Design Standard | TIA/EIA‑222‑G/F/H |
| Material |
GB/T700: Q235B GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM 572, GR50, GR65, SS400 EN 10025: S235JR, S235JO, S235JZ EN 10025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008, SGS COC |
| Galvanized | Hot‑dipped Galvanized |
| Galvanization Standard | ASTM A123 |
| Nuts & Bolts | Grade 8.8 |
| Welding Standard | AWS D1.1 |
| Welding Method | CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW) |
| Bolts & Nuts Galvanization Standard | ISO 1461 or ASTM A153 |
| Life Time | More than 25 years |
| Supply Ability | 15 Sets per month |
| Parameter | Specification |
|---|---|
| Structural Design |
• Height: 12–25m (40–82 ft) • Trunk: Galvanized steel core with fiber-reinforced polymer (FRP) "bark" • Canopy: UV-resistant polyethylene (PE) fronds with embedded antenna slots • Foundation: Reinforced concrete base (4–6m depth, Ø3–5m) |
| Camouflage Tech |
• Visual Fidelity: 90%+ match to local palm species (e.g., Phoenix dactylifera, Cocos nucifera) from 50m • Material RF Transparency: Dielectric constant <2.8 (minimal signal loss) • Color Stability: 10+ year UV resistance per ASTM D4329 |
| Telecom Payload |
• Antenna Capacity: 6–9 sector antennas (4G/5G) • Concealed Mounts: Frond-embedded radomes + trunk-integrated RRUs • Backhaul: Fiber/microwave via hollow trunk conduits |
| Environmental Resilience |
• Wind Rating: 150 km/h (with frond shedding design) • Corrosion Protection: ISO 12944 C5-M (marine-grade) • Lightning Protection: IEC 62305-compliant dissipation system |
| Maintenance |
• Access: Retractable internal ladder + canopy service platform • Frond Replacement: Modular snap-lock system (30 min/frond) |
Product Details:
(1)_1750831661_WNo_1200d900.webp)
_1750831714_WNo_599d444.webp)
| Use Case | Example Sites | Technical Advantage |
|---|---|---|
| Resorts/Beaches | Dubai Palm Jumeirah, Maldives | Blends with tropical scenery; avoids "industrial" visuals |
| Urban Landscaping | Miami Beach, Cannes | Complies with strict urban design codes |
| Ecological Reserves | Costa Rica NPs, Great Barrier Reef | Minimal habitat disruption; no avian collisions |
| High-Security Zones | Military bases, embassies | Conceals critical comms infrastructure |
| Golf Courses | Pebble Beach, St. Andrews | Preserves landscape value; zero visual intrusion |
