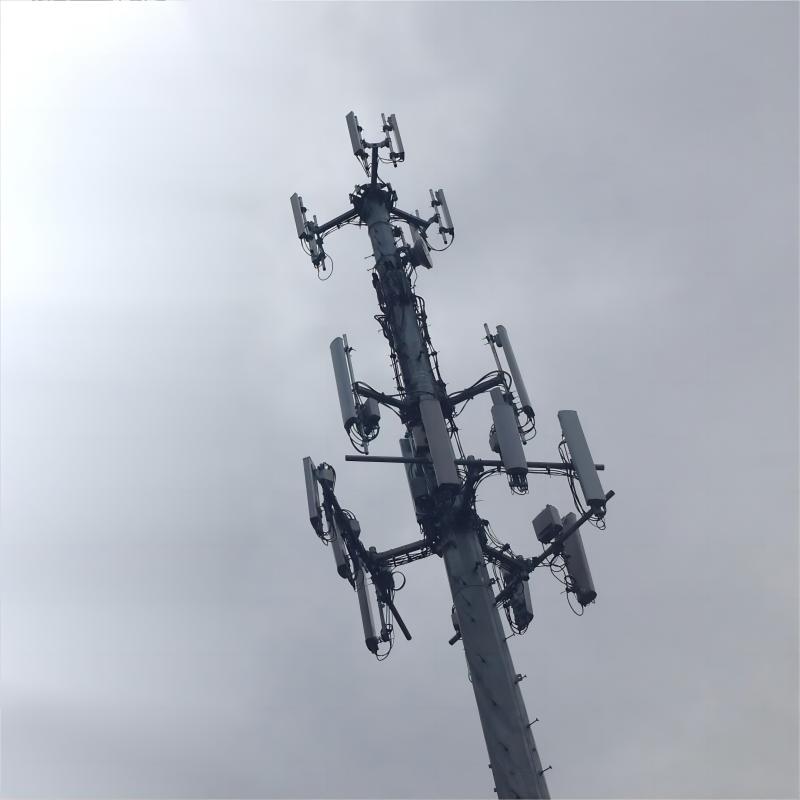

A 3-Sector T-Arm Monopole Antenna Mount is a specialized structure designed to support three directional antennas spaced 120° apart on a single monopole. This configuration maximizes cellular network coverage and capacity by dividing a 360° area into three independent 120° sectors, each served by its own antenna/RF system.
Monopole Structure
Material: Galvanized steel or aluminum alloy.
Height: 30–200 ft (9–60m), tailored for urban/suburban coverage.
Foundation: Reinforced concrete base (5–15m depth) for wind/seismic stability.

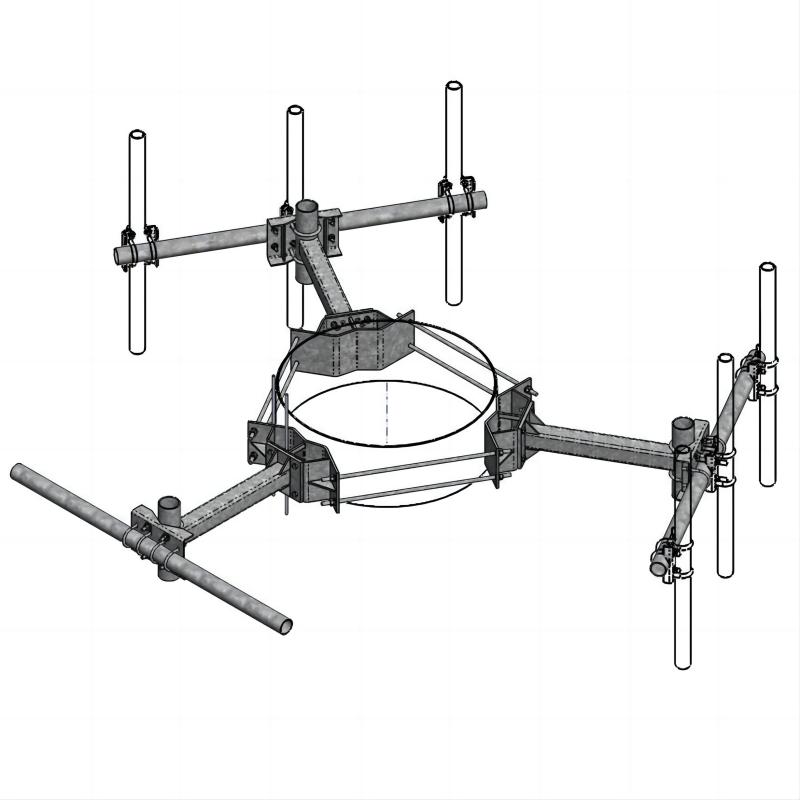

T-Arm Assembly
Configuration: Three horizontal arms welded/bolted at 120° intervals.
Arm Length: 6–20 ft (1.8–6m), depending on antenna size and wind load.
Material: Steel tubing (e.g., ASTM A500) with corrosion-resistant coating.
Antenna Mounts
Adjustability:
Azimuth: ±15° fine-tuning for sector alignment.
Downtilt: Mechanical (0°–10°) or electrical (0°–15°) for coverage shaping.
Hardware: U-bolts, clamping brackets (e.g., Rohn SS25H), and torque limiters.
Ancillary Attachments
RRUs (Remote Radio Units): Mounted behind antennas to minimize feeder loss.
Cable Management: Ladder racks, drip loops, and grounding kits (IEEE 80 compliant).
Auxiliary Mounts: Microwave backhaul dishes, small cells, or IoT sensors.
Product Details:
_1751008257_WNo_800d800.webp)
| Parameter | Typical Range | Purpose |
|---|---|---|
| Wind Survival | 120–150 mph (54–67 m/s) | Structural integrity in storms |
| Ice Load | 0.5–2 in radial (12–50mm) | Cold-climate resilience |
| Antenna Weight | 30–100 lbs (14–45kg) per | Arm stress calculation |
| Frequency Bands | 700MHz–3.5GHz (5G NR) | Multi-band antenna compatibility |
| Ground Clearance | Min. 16 ft (4.9m) | Safety compliance (OSHA/NESC) |
Vendor-Specific Variations
| Feature | Ericsson AIR 6449 | Huawei AAU5613 |
|---|---|---|
| Weight | 55 lbs (25kg) | 62 lbs (28kg) |
| Bandwidth | 4x4 MIMO (100MHz) | 64T64R (200MHz) |
| Mount Compatibility | 3.25" clamp diameter | 3.5" clamp diameter |
Package Reference
