Cell on Wheels are mobile, they don’t require a foundation and need only grounding and commercial power. Imagine all the possibilities for their use.
| Code: | XHT23 |
| Categories: | Transmission Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |

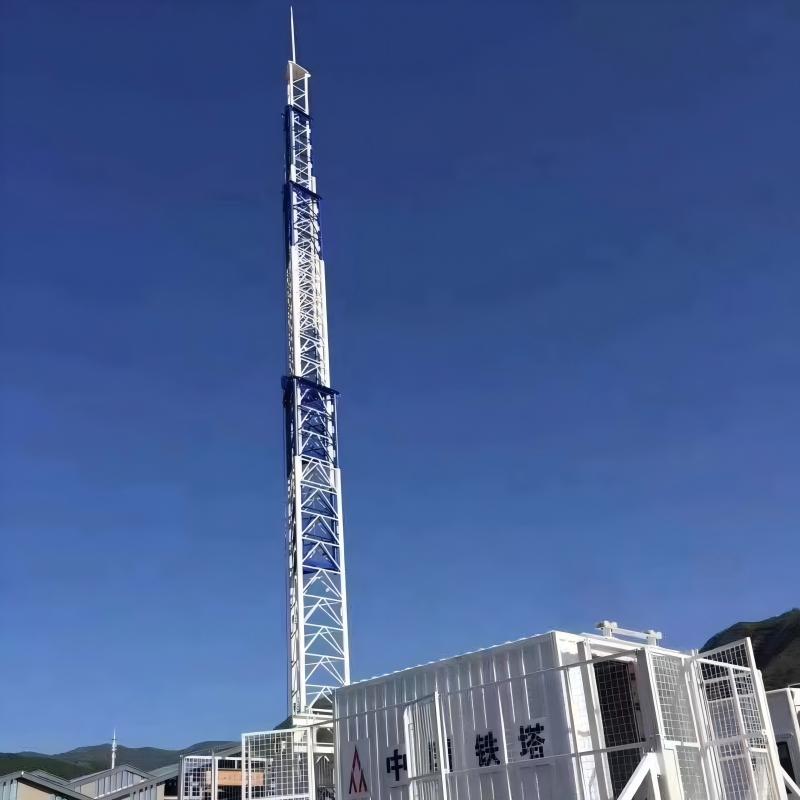

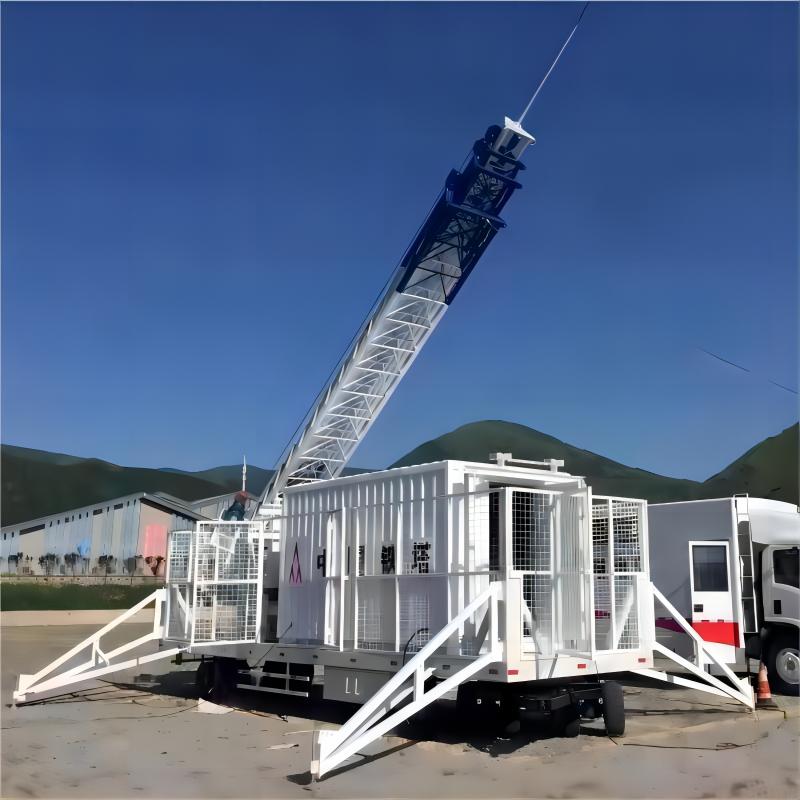

A 20M Movable Telecom Cell on Wheels (COW), also known as a mobile cell site, portable cell tower, or site on wheels, is a temporary telecommunications infrastructure designed for rapid deployment to provide wireless network coverage and capacity in areas where permanent infrastructure is unavailable, damaged, or insufficient. Mounted on a trailer or truck, this mobile base station integrates essential components like antennas, transceivers, power systems, and backhaul connectivity to deliver 2G, 3G, 4G LTE, or 5G services. The "20M" refers to the telescopic mast height of 20 meters, which provides sufficient elevation for effective signal propagation. Below is a detailed explanation of the 20M Movable Telecom COW, incorporating relevant keywords to clarify its design, functionality, and applications.
| Product Name | 20M Movable Telecom Cell on Wheels (COW) |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000 ETC. |
| Height | 20 Meters |
| Wind Speed | 0--300KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700:Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 20 years |
| Supply Ability | 20 Sets Per Month |
_1750813014_WNo_800d800.webp)
_1750813050_WNo_800d800.webp)
The 20M Movable Telecom COW is designed for temporary or emergency scenarios where wireless connectivity is critical:
Emergency Response: Restores communication networks after natural disasters (e.g., hurricanes, floods, wildfires) when stationary cell towers are damaged or destroyed, ensuring first responders maintain connectivity. For example, COWs were deployed after the 2001 September 11 attacks to support FEMA and rescue operations.
Large-Scale Events: Boosts network capacity during high-profile events like concerts, sports events, or festivals, where sudden spikes in mobile traffic overwhelm existing infrastructure.
Remote Locations: Provides cellular coverage in rural areas, mining sites, oil and gas fields, or construction sites where permanent towers are not feasible or under development.
Temporary Infrastructure: Bridges coverage gaps during the construction or approval of permanent cell towers, supporting telecom operators in maintaining service.
Media and Broadcasting: Enables live streaming and data transmission for media coverage at events, ensuring reliable broadband for journalists and broadcasters.
