Ultra-Lightweight & Durable Structure
Material: High-strength 6061-T6 aluminum alloy (ASTM B221/B241).
Weight: ≤1,600 kg (vs. 2,500+ kg for steel equivalents), enabling transport via light trucks.
Corrosion Resistance: Anodized surface + marine-grade coating for coastal/industrial environments.
Rapid Deployment
Setup Time: <15 minutes with 3-person crew (hydraulic auto-erection system).
Mobility: Integrated trailer chassis (ISO container-compatible) + stabilizer jacks.
Technical Specifications
Height: 20 meters (adjustable 15–25M variants available).
Payload Capacity: Supports 3x RRUs (Remote Radio Units) + 12-port antennas.
Wind Rating: 160 km/h (45 m/s) with antennas (ANSI/TIA-222-G compliant).
Smart Integration
Power Options: Hybrid solar-battery (48V/300Ah) or diesel generator (auto-failover).
AI Monitoring: IoT sensors for tilt, vibration, temperature, and intrusion detection.

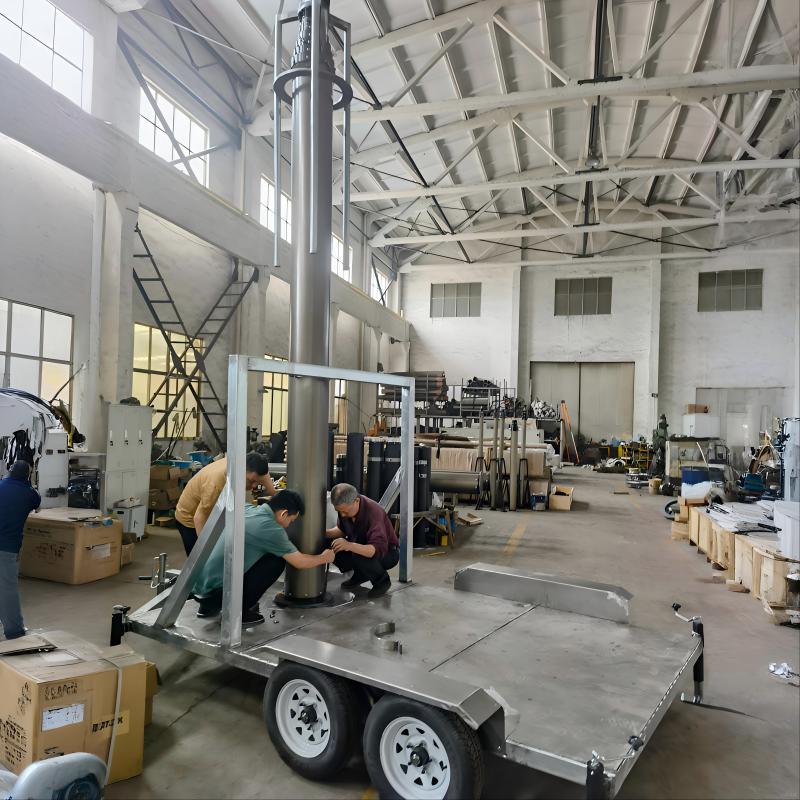

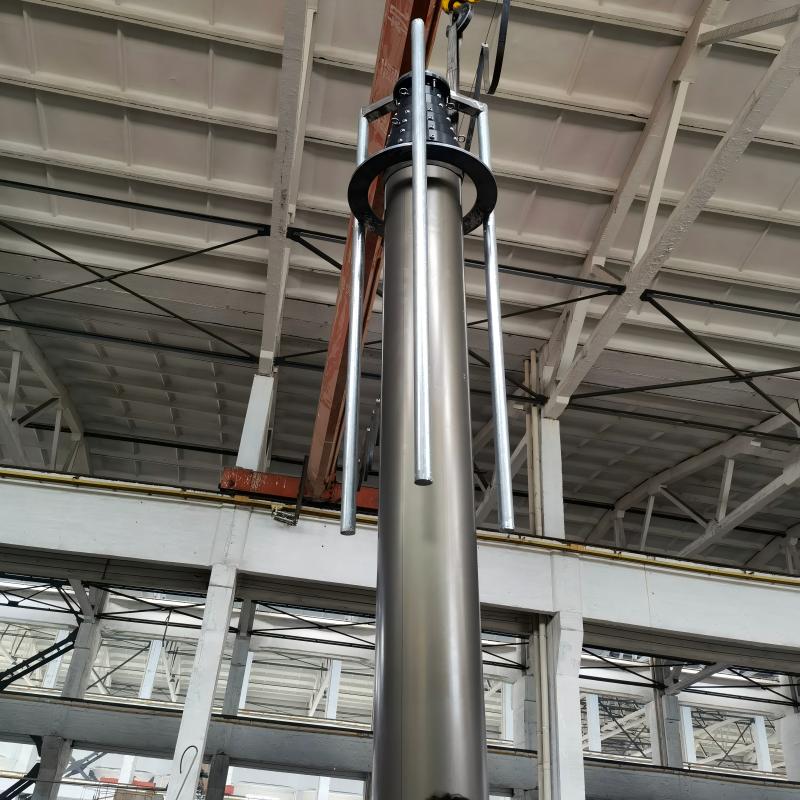

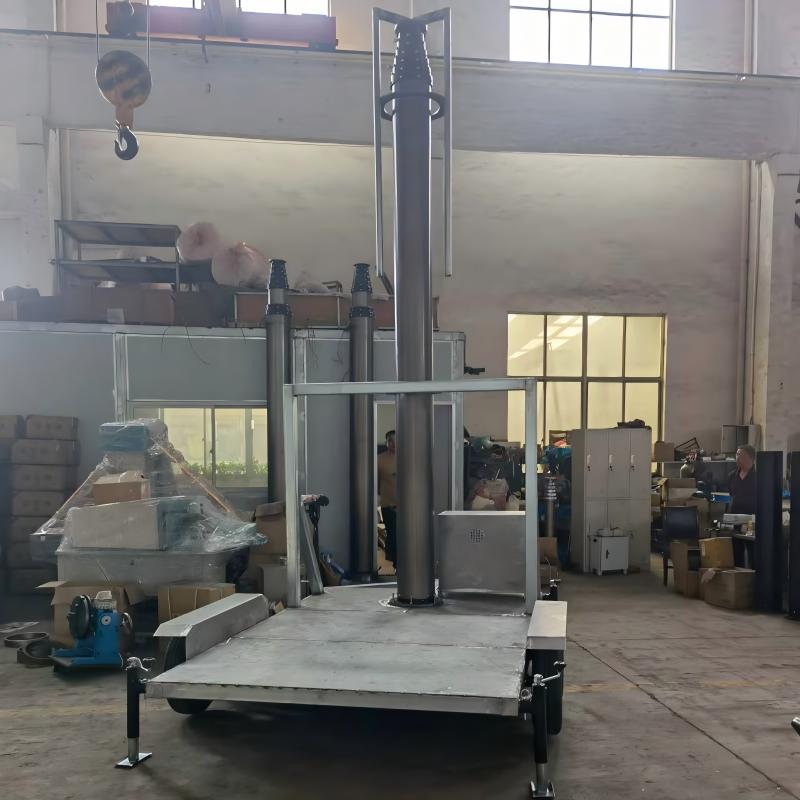

Product Name：COW ( CELL ON WHEELS) TOWER
Design Software：MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.
Height: 20 Meters
Wind Speed: 0--300KM/H
Design standard: TIA/EIA-222-G/F/H
Material: Aluminum Alloy or
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding ( SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 20 years
Supply Ability: 35 Sets per Month
_1753924803_WNo_800d800.webp)
_1753924833_WNo_800d800.webp)
_1753924858_WNo_800d800.webp)
_1753924875_WNo_800d800.webp)
(1)_1753924935_WNo_800d800.webp)
| Parameter | XH Aluminum COW | Conventional Steel COW |
|---|---|---|
| Weight | 1,800 kg | 2,500–3,000 kg |
| Deployment Time | 10–15 mins | 45–60 mins |
| Corrosion Resistance | (Salt spray 2,000 hrs) | Galvanized) |
| Lifetime Maintenance Cost | 40% lower | High (rust prevention) |
Emergency Response: Disaster recovery, public safety networks.
Events: Stadiums, festivals, F1 races.
Remote Coverage: Mining sites, military bases, island communities.
