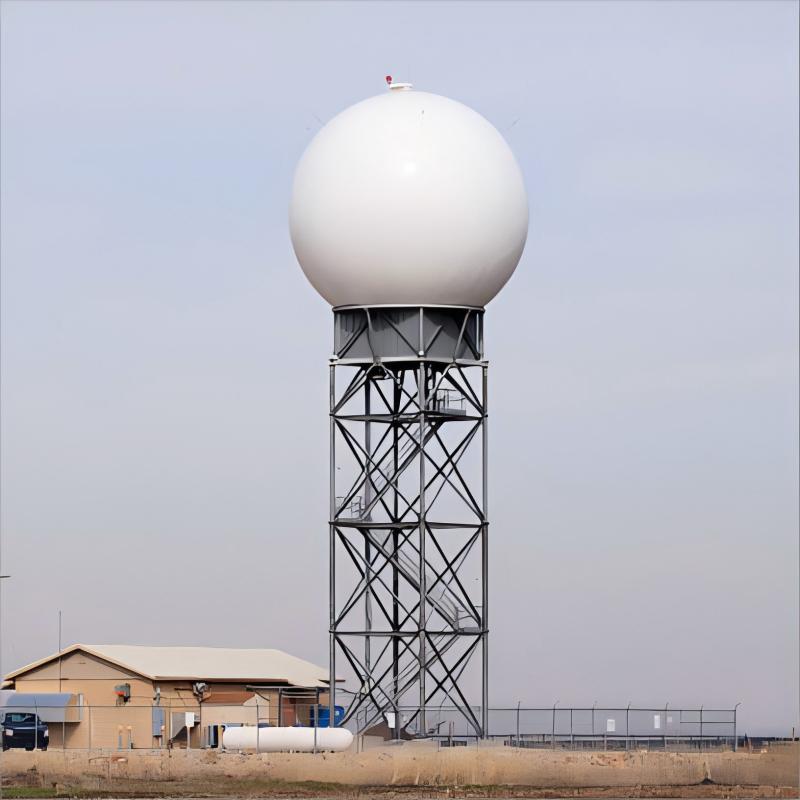

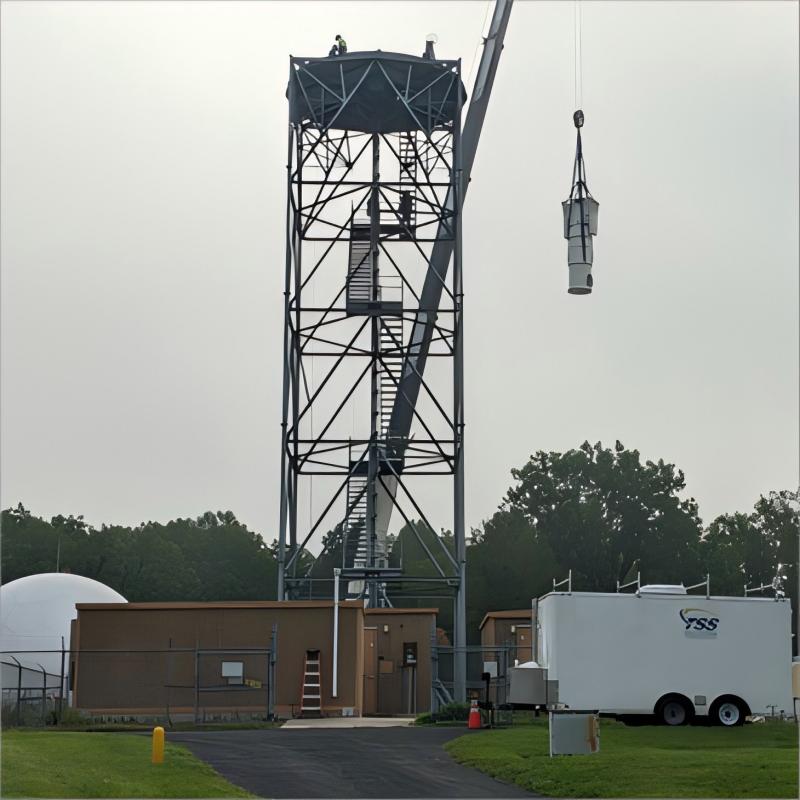

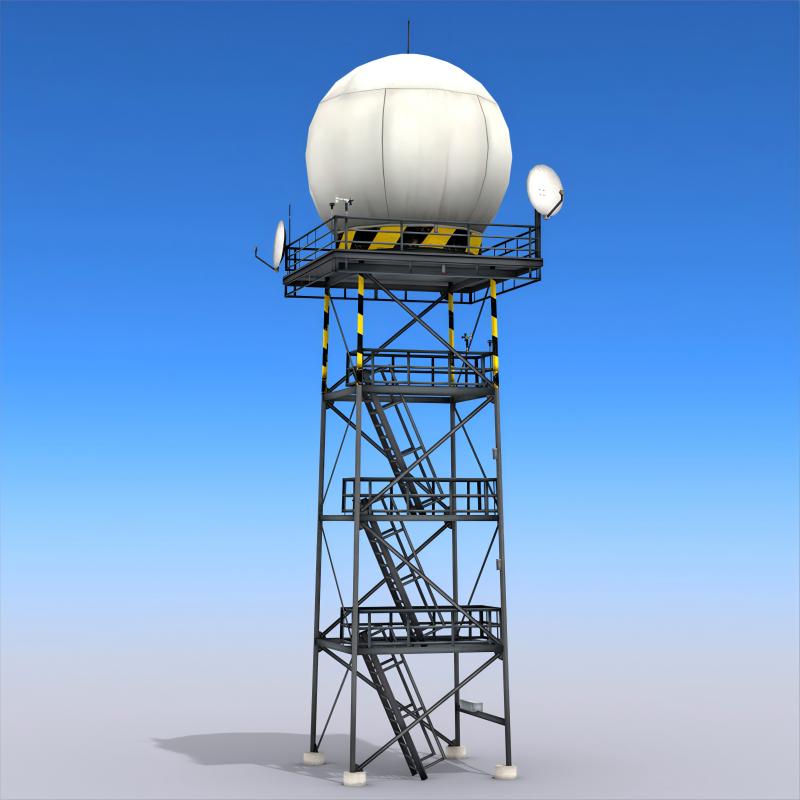

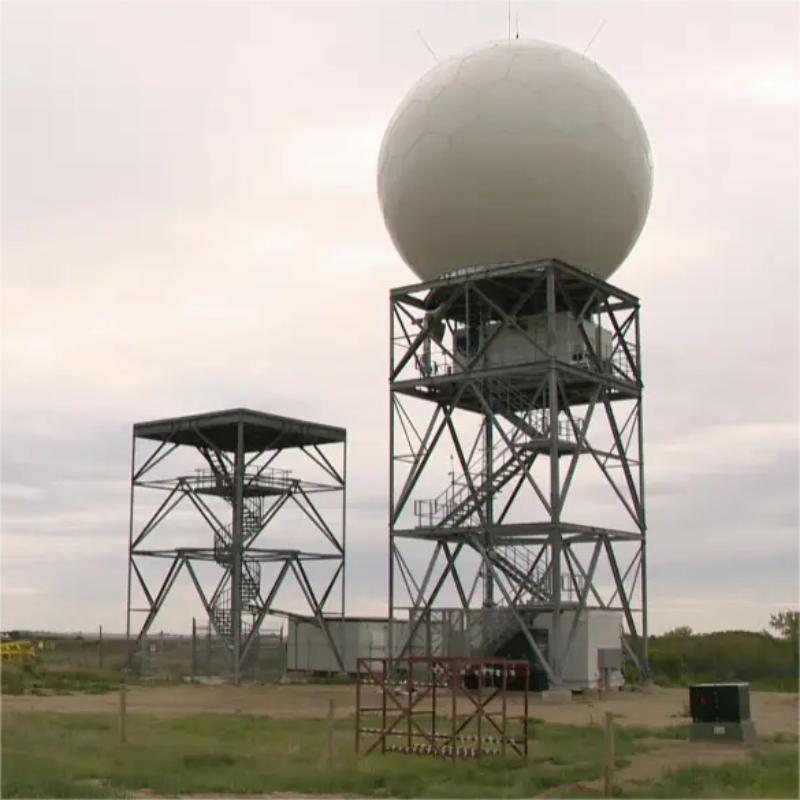

Aerodynamic Profile: Open lattice reduces wind drag by 60% vs. solid towers
Dynamic Damping: Tuned mass dampers limit sway to <0.1° for radar alignment
Modular Construction: Bolt-connected sections allow height expansion
EMI Minimization: Non-conductive radome materials (<0.3 dB attenuation)
Ground Clutter Reduction: Elevation clears terrestrial obstructions
Precision Mounting: Laser-aligned pedestal with ±0.05° level tolerance
Seismic Design: Base isolators for Zone 4 seismic activity
Ice Shedding: Vibrational de-icing systems on critical braces
Corrosion Management: Sacrificial anodes + 25-year coating warranty
| Parameter | Specification |
|---|---|
| Structural Design |
• Height: 30–100m (100–330 ft) • Geometry: Triangular/quadrilateral lattice with 45° bracing • Material: ASTM A572 galvanized steel • Load Capacity: 5–20 tons (radar + radome + ice) |
| Radar Integration |
• Mount Type: Pedestal/platform at apex • Radome Diameter: 8–15m (fiberglass/PTFE) • Access: Internal ladder + service platforms |
| Environmental Resilience |
• Wind Rating: 200+ km/h (ASCE 7-22) • Ice Load: 50–100mm radial ice (ISO 12494) • Corrosion Protection: Hot-dip galvanization (150μm) + marine-grade coating • Lightning Protection: IEC 62561-compliant dissipation |
| Foundation |
• Type: Reinforced concrete pile/raft • Depth: 8–15m (below frost line) • Anchor Bolts: ASTM F1554 Gr. 105 |
Product Details:
_1750842809_WNo_800d600.webp)
_1750842835_WNo_600d704.webp)
_1750842867_WNo_600d450.webp)
_1750842907_WNo_600d450.webp)
_1750842945_WNo_800d600.webp)
| Metric | Requirement | Rationale |
|---|---|---|
| Deflection Limit | < H/1000 (e.g., 80mm @ 80m) | Radar pointing accuracy |
| Natural Frequency | > 0.5 Hz | Avoid wind-resonance vibrations |
| Radar Horizon | 200–400 km | Maximize storm tracking range |
| Maintenance Access | 360° platform every 20m | Safe radome/antenna servicing |
Packaging Reference:
_1750843077_WNo_1200d900.webp)
_1750843735_WNo_700d422.webp)
_1750843775_WNo_600d450.webp)
| Phase | Activity | Frequency |
|---|---|---|
| Inspection | Ultrasonic weld testing, coating thickness | Biennial |
| Maintenance | Radome cleaning, bolt re-torquing | Annual |
| Monitoring | Strain gauges, accelerometer data analysis | Real-time |
| Refurbishment | Full regalvanization, brace reinforcement | 15–20 years |
XH Tower Co., Ltd: Building Global Connectivity with Excellence
Established in 2007 and headquartered in Qingdao, Shandong Province, China XH TOWER Co., Ltd is a leading manufacturer specializing in high-quality telecommunication towers, transmission towers, and steel tower components. With over 17 years of industry expertise, we are committed to delivering innovative engineering solutions and superior products that meet global standards, empowering infrastructure development across the world.
