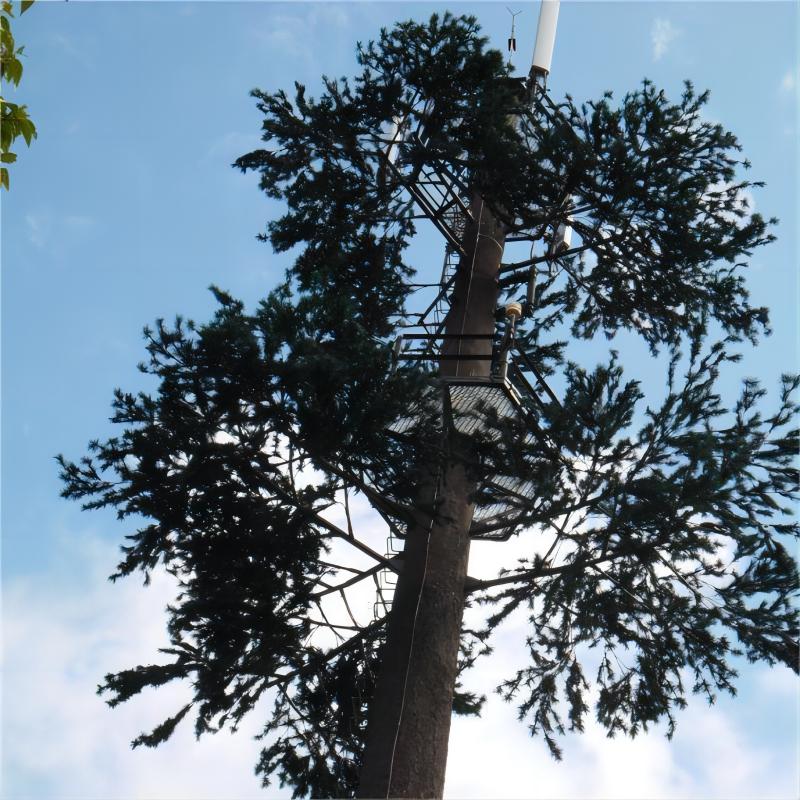

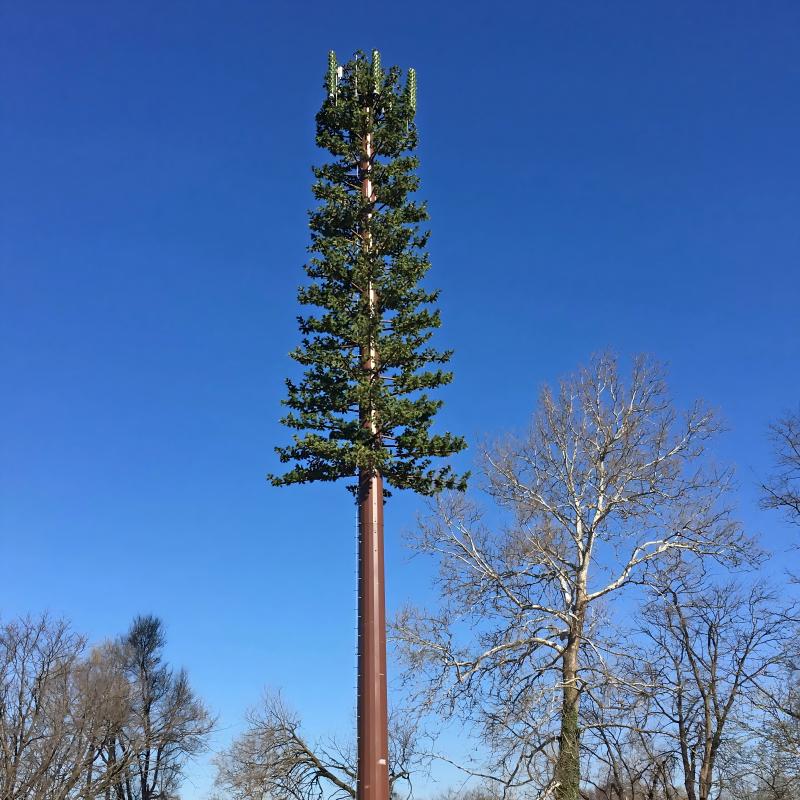

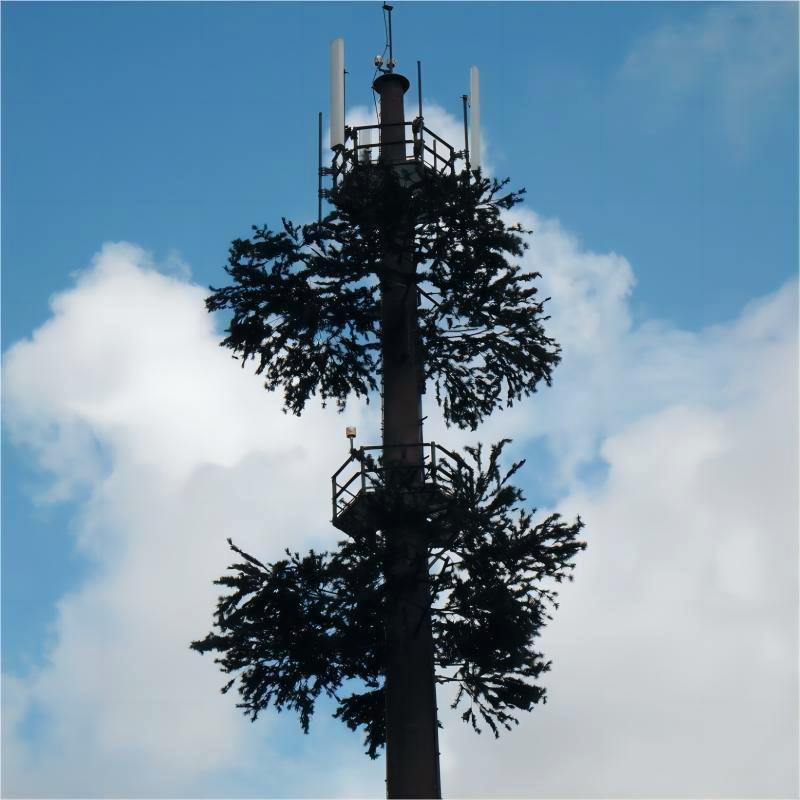

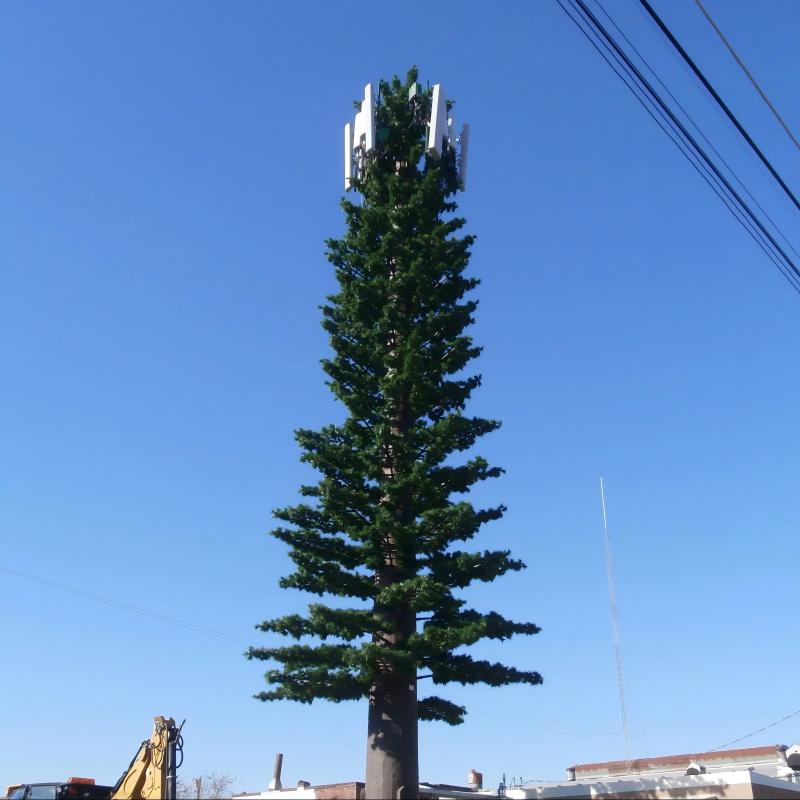

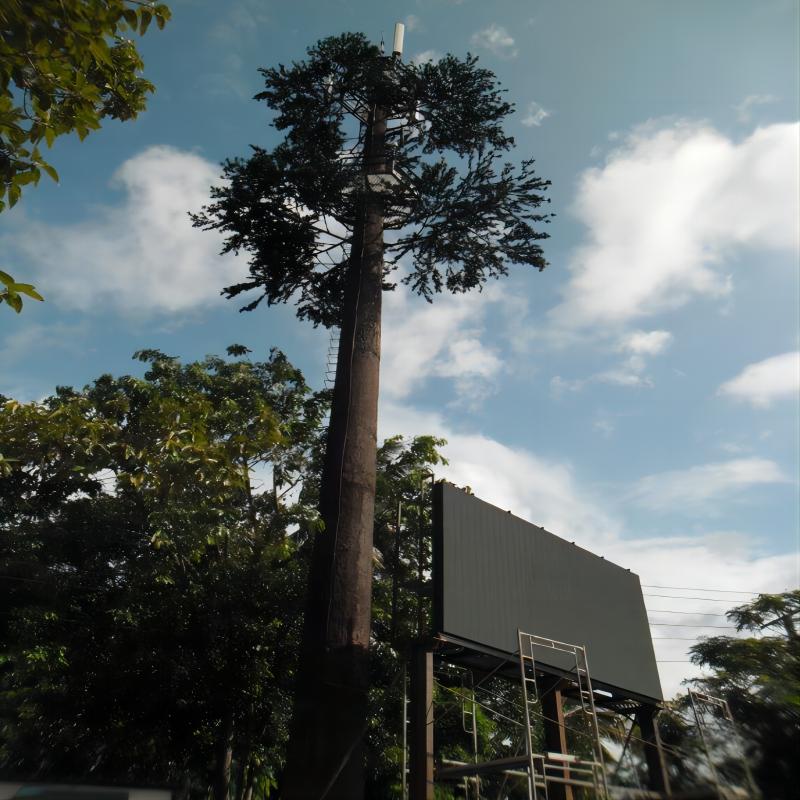

Bionic Pine Tree Telecom Towers – engineered stealth structures designed for seamless integration into forested, mountainous, and cold-climate environments.
| Parameter | Specification |
|---|---|
| Structural Design |
• Height: 15–35m (50–115 ft) • Trunk: Galvanized steel core + fiber-reinforced polymer (FRP) "bark" with textured resin finish • Branches: Glass-reinforced plastic (GRP) limbs with epoxy-coated needles • Foundation: Reinforced concrete (5–8m depth, snow/ice anchors) |
| Camouflage Tech |
• Species Matching: Custom replicas of local pines (P. sylvestris, P. ponderosa, etc.) • RF Transparency: Branch radomes with <0.7 dB signal loss (εr < 3.0) • Seasonal Adaptability: Optional snow-dusted or UV-reactive coatings |
| Telecom Payload |
• Antenna Capacity: 6–12 sector antennas + 4 microwave dishes • Concealment: Antennas nested in upper branches; RRUs in hollow trunk compartments • Backhaul: Fiber via root-conduit system |
| Environmental Resilience |
• Snow Load: 75 kg/m² (ISO 4355) • Wind Rating: 160 km/h (branch-shedding design) • Temp Range: -50°C to +40°C (heated trunk option) • Lightning Protection: IEC 62305 Level 2 |
| Maintenance |
• Access: Internal climbing system + branch-mounted platforms • Branch Replacement: Modular snap-lock joints |
Product Details:
Snow Shedding: Angled branches + hydrophobic coatings prevent snow accumulation.
Thermal Management: Trunk-integrated heating coils combat ice buildup on antennas.
Corrosion Resistance: Marine-grade aluminum alloys + cathodic protection.
Branch Radomes: Conical GRP covers with directional slot antennas for 5G beamforming.
Ground Plane Concealment: Buried counterpoise ring under faux "root system."
Minimal Visual Impact: <5% signal loss vs. exposed antennas.
Avian Safety: Non-reflective needles; branch spacing deters nesting.
Soil Protection: Foundation designed for minimal root disruption.
Wildlife Camouflage: Infrared-reflective coatings to blend with natural canopy.
| Use Case | Deployment Examples | Technical Advantage |
|---|---|---|
| Mountain Resorts | Swiss Alps, Colorado Rockies | Blends with slopes; survives heavy snow/ice |
| Boreal Forests | Canadian Shield, Scandinavian NPs | Mimics native Pinus species; avoids deforestation |
| Urban Greenbelts | Denver, Oslo, Vancouver | Complies with "green infrastructure" mandates |
| Military Sites | Arctic bases, border outposts | Conceals comms; withstands extreme cold |
| Wildfire Zones | California, Australia | Fire-retardant materials (UL 94 V-0 rated) |
