Radar lattice towers play a crucial role in supporting radar antennas and equipment for various applications, providing a stable and elevated platform for radar systems to function effectively. Their lattice design offers a robust solution for elevating radar equipment to the required heights while maintaining structural integrity and performance over time.
| Code: | XH-RT01 |
| Categories: | Weather Radar Monitoring Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |

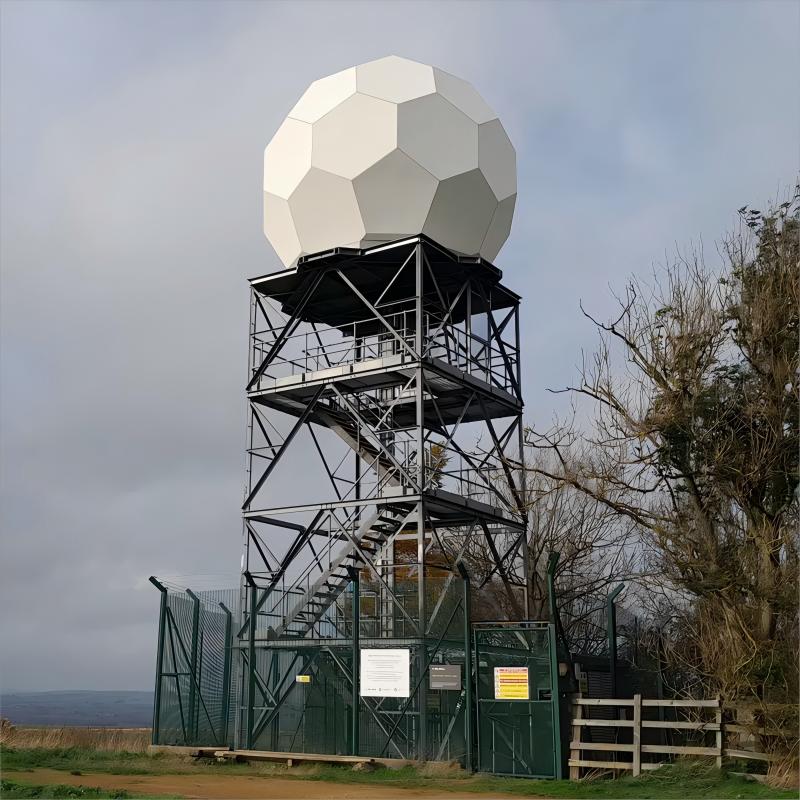

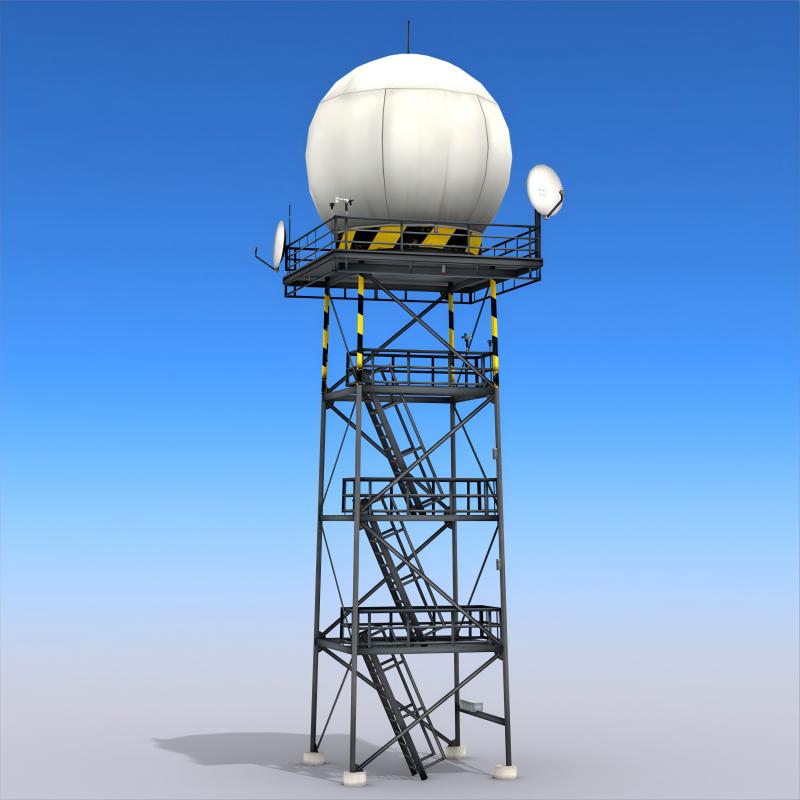

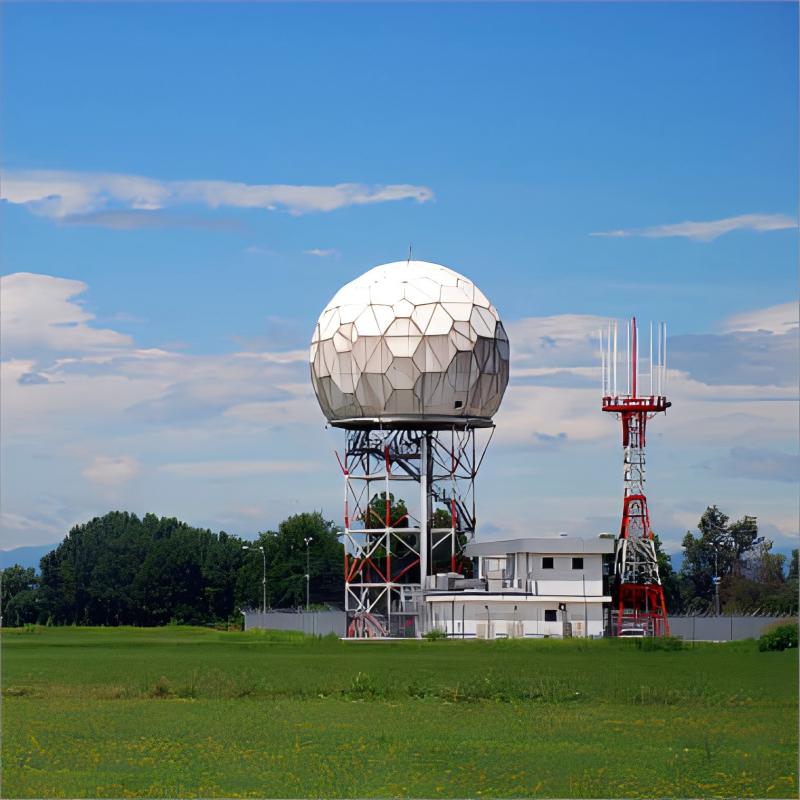

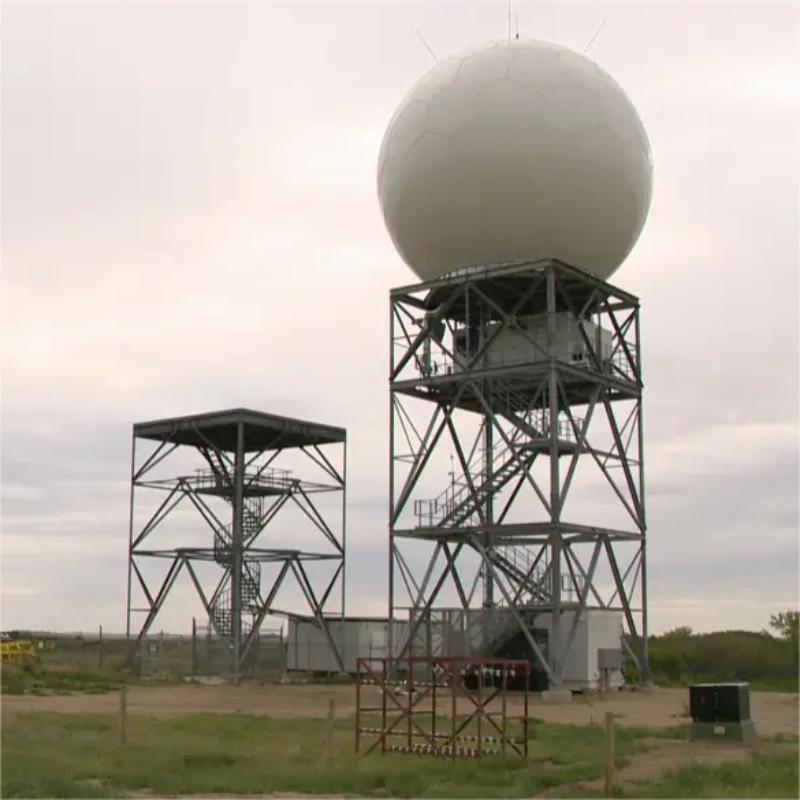

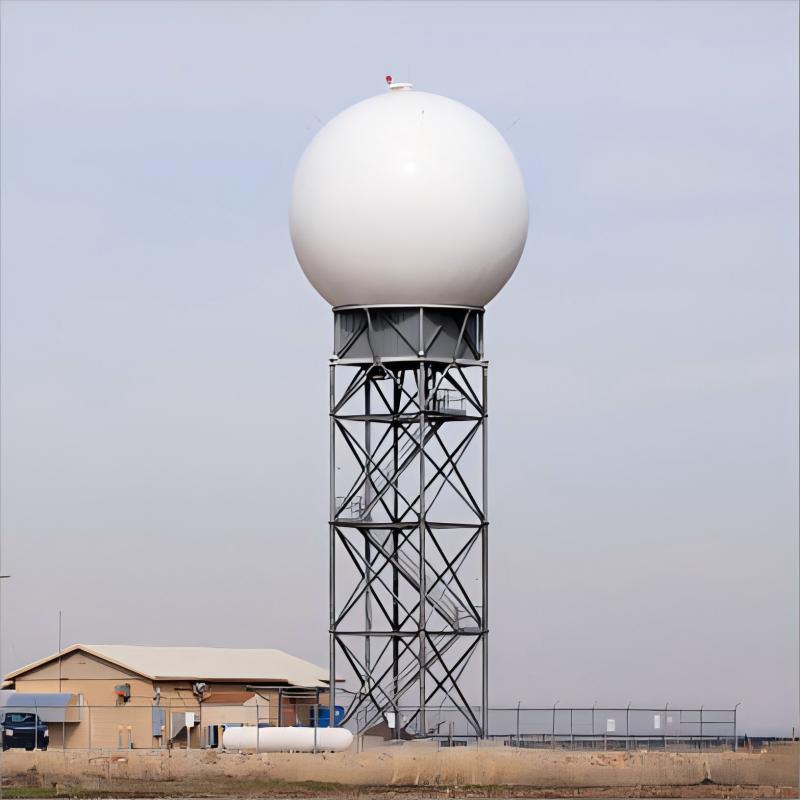

A 15M Weather Monitor Radar Lattice Steel Tower is a specialized self-supporting lattice structure designed to elevate weather radar antennas and meteorological equipment for weather monitoring and forecasting. Constructed from galvanized steel, this 15-meter tower features a triangular or square lattice framework, providing structural stability, durability, and environmental resilience to support Doppler radar, weather sensors, and communication equipment. Its compact design and moderate height make it ideal for meteorological applications in urban, rural, or remote environments, ensuring accurate weather data collection for precipitation tracking, storm detection, and climate research.
| Tower Height | 15 Meters (or as per customization) |
| Design Standard | ANSI/TIA-222-F/G/H, BS8100, Euro Part1&3 |
| Design Wind Speed | 100kph-350kph (3s gust wind speed) |
| Exposure Category | B/C/D |
| Antenna Load | Based on Radar with randome size and weight |
| Galvanization Standard | EN ISO 1461, ASTM A153 & ASTM A123 |
| Material | GB/T700: Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 |
| ASTM A36, ASTM 572, GR50, GR65, SS400 | |
| Surface Treatment | Hot-dip Galvanized |
| Galvanization Standard | ASTM A123 |
| Welding Standard | AWS D1.1 |
| Welding Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Life Time | More than 25 years |
| Supply Ability | 3,000MT Per Month |
_1750836489_WNo_800d600.webp)
_1750836554_WNo_600d450.webp)
_1750836581_WNo_600d450.webp)
_1750836669_WNo_800d600.webp)
The 15M Weather Monitor Radar Lattice Steel Tower supports critical meteorological monitoring and forecasting applications:
Weather Surveillance: Elevates Doppler weather radar (e.g., X-band, C-band) for precipitation tracking, storm detection, and severe weather warnings (e.g., tornadoes, hail).
Climate Research: Supports meteorological instruments (e.g., rain gauges, wind sensors) for atmospheric data collection at universities or research institutes.
Air Traffic Control: Provides weather data for aviation safety, monitoring conditions near airports or runways.
Disaster Management: Enables real-time weather monitoring for early warning systems, critical for flood prediction, hurricane tracking, or emergency response.
Urban Weather Monitoring: Supports compact radar systems (e.g., FURUNO X-band) for localized rainfall analysis in smart cities.
_1750836801_WNo_600d704.webp)
