Mono pole towers provide a strong, cost-effective mounting structure to elevate antennas while minimizing visual impact. Their single-pole design offers simplicity.
| Code: | XHT23 |
| Categories: | Transmission Tower |
| Unit: | Metric Ton |
| Origin: | Shandong, China |
| Port: | Qingdao, China |
| Pay: | T/T, L/C, D/P |

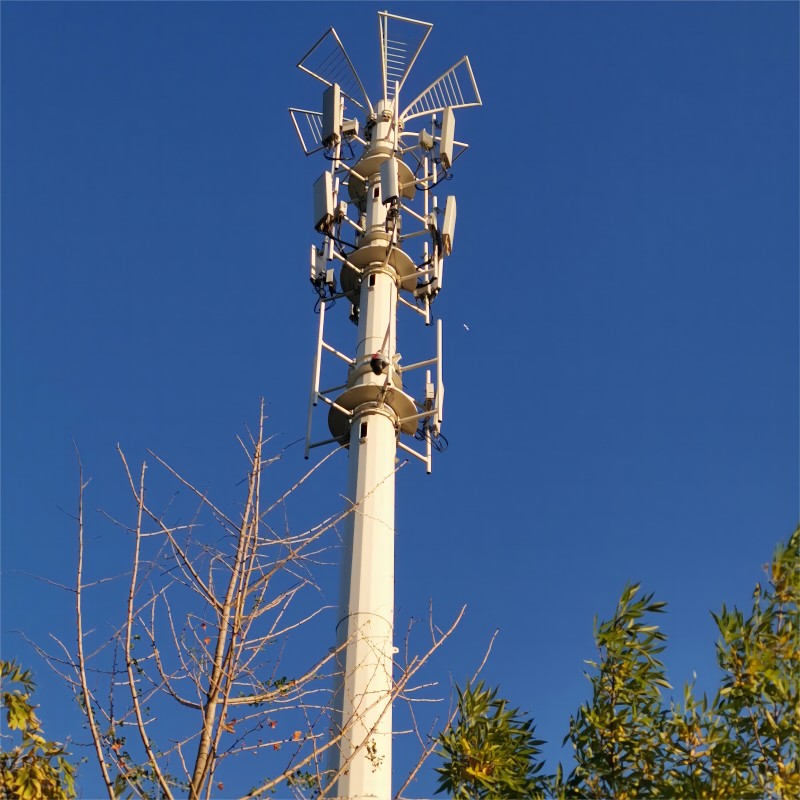

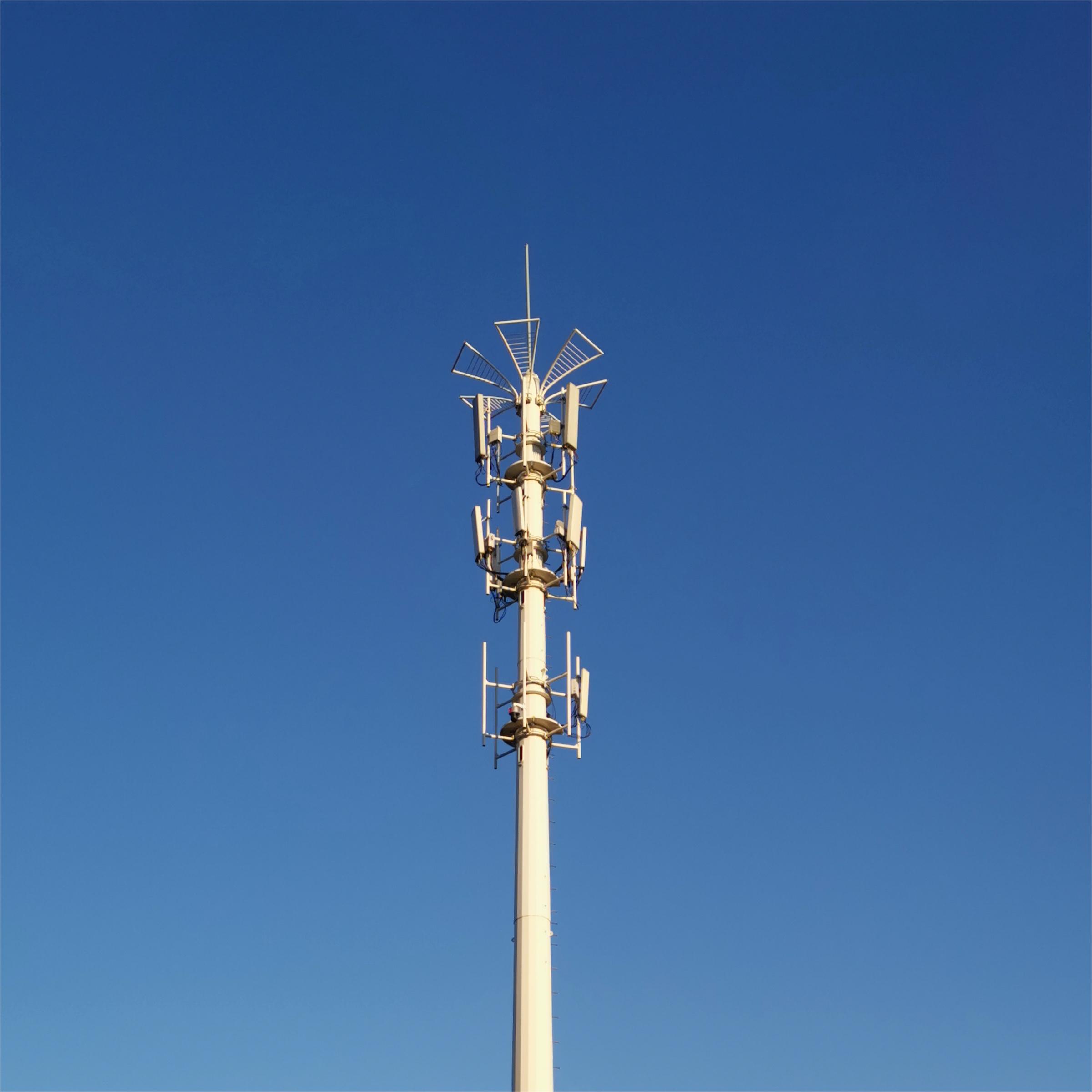

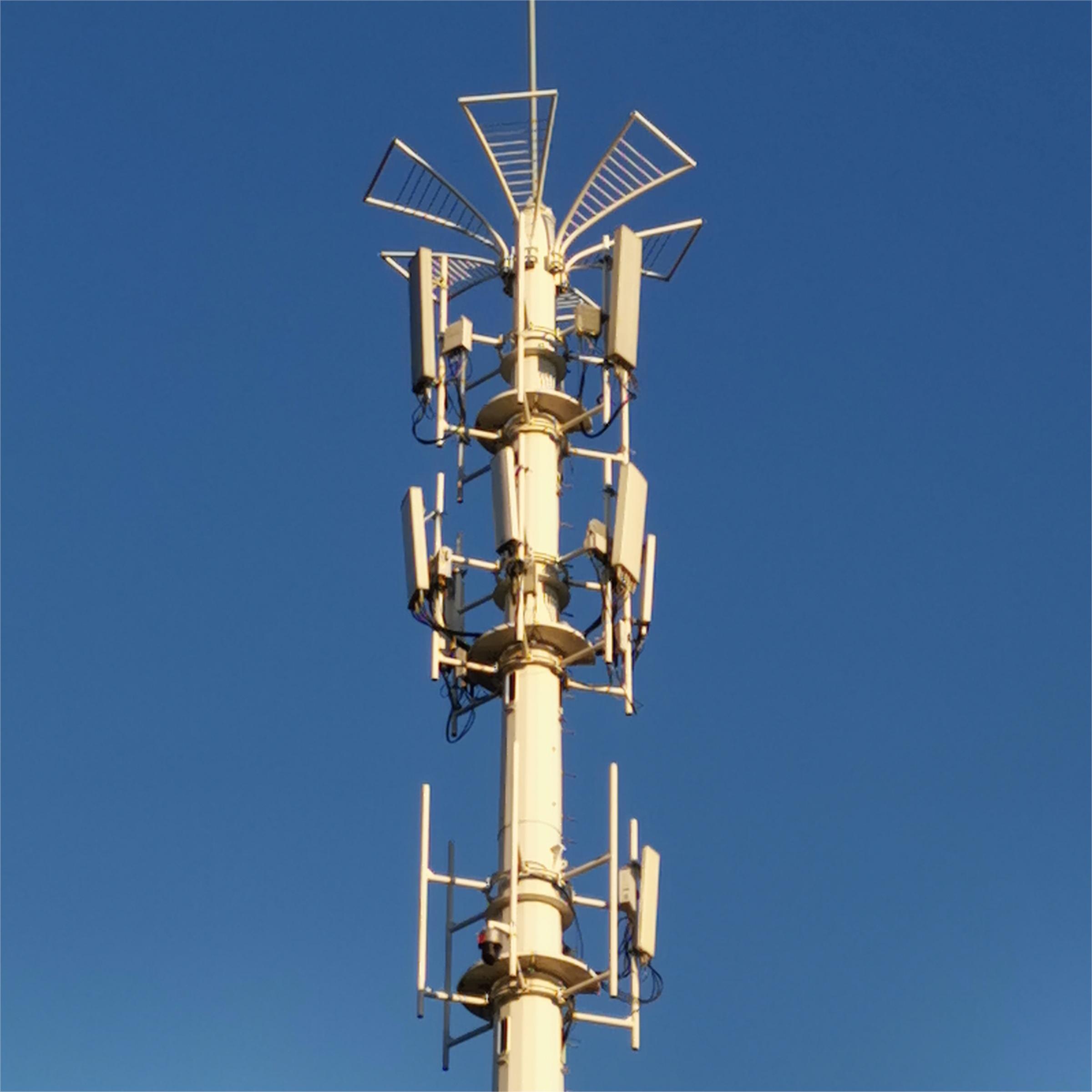

A 20M Mono Pole Telecommunication Tower is a single-pole, self-supporting structure designed to support telecommunication equipment such as antennas, microwave dishes, and remote radio units (RRUs) for wireless communication. Typically constructed from high-strength steel or occasionally fiberglass or carbon fiber, these towers are used to provide cellular, radio, microwave, or 5G connectivity in urban, suburban, or rural environments. The 15-meter height makes it suitable for applications requiring moderate elevation, balancing coverage area with aesthetic and space constraints. Below is a detailed explanation of the 15M Mono Pole Telecommunication Tower, incorporating relevant keywords based on industry-standard information gathered from web sources.
| Product Name | Mono Pole Tower |
| Type | Telecommunication Tower |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000 ETC. |
| Height | 20 M |
| Wind Speed | 0--330KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700: Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50, GR65 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ EN/0025: SS400 |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 25 years |
| Supply Ability | 1800 Tons Per Month |
_1750729940_WNo_800d600.webp)
_1750729967_WNo_1200d900.webp)
The 20M Mono Pole Telecommunication Tower is deployed in various wireless communication scenarios:
Cellular Networks: Supports 2G, 3G, 4G LTE, and 5G antennas for mobile connectivity, providing cell coverage of 1-5 km (depending on frequency bands and terrain) in urban or suburban areas.
Microwave Backhaul: Facilitates point-to-point communication for network backhaul, connecting remote sites to core networks, especially in suburban or rural areas.
Small Cell Deployment: Integrates 5G small cells or Wi-Fi access points for urban densification, supporting smart city initiatives, IoT networks, or high-traffic zones (e.g., shopping districts).
Public Safety and Emergency Communication: Elevates two-way radio antennas, homeland security systems, or first responder networks, ensuring reliable connectivity during disasters or public events.
Broadcasting: Supports FM radio, low-power TV, or digital broadcast antennas for localized media coverage.
Temporary or Semi-Permanent Use: Used during events (e.g., festivals, sports), construction projects, or as interim solutions while awaiting permanent tower approvals.
_1750729842_WNo_800d800.webp)
