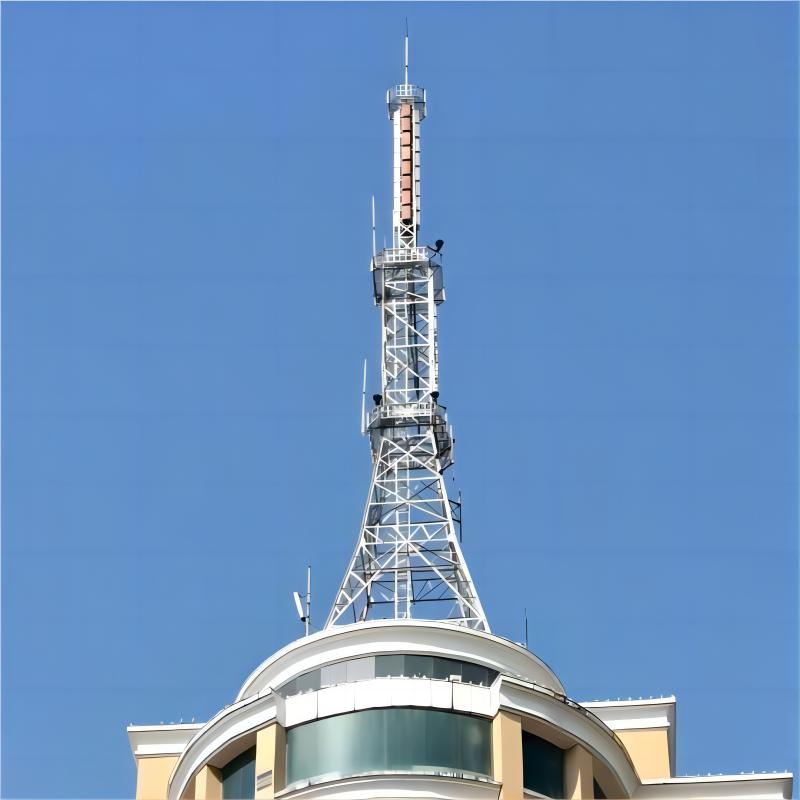

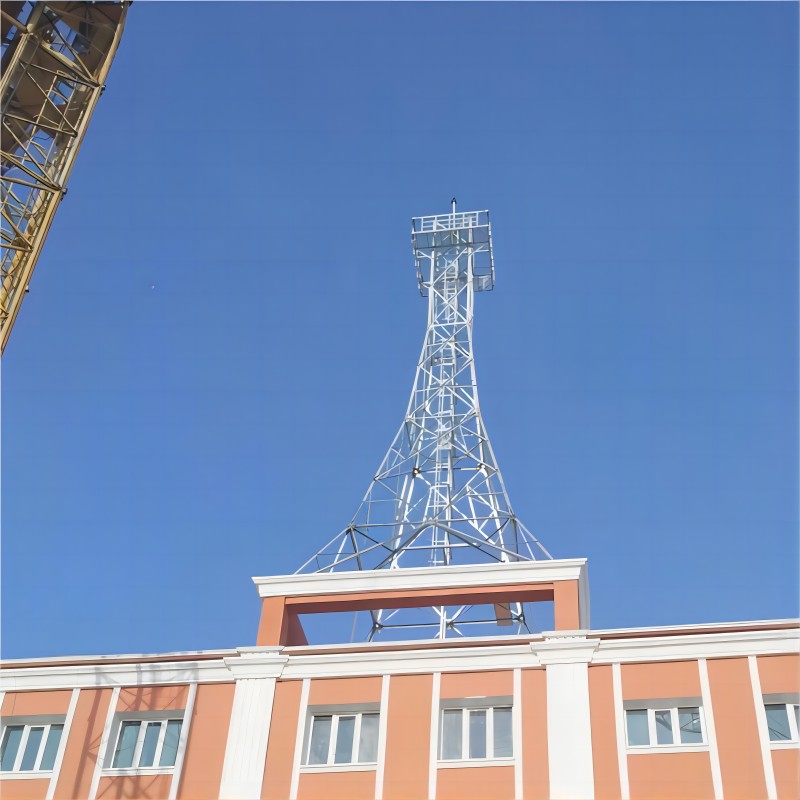

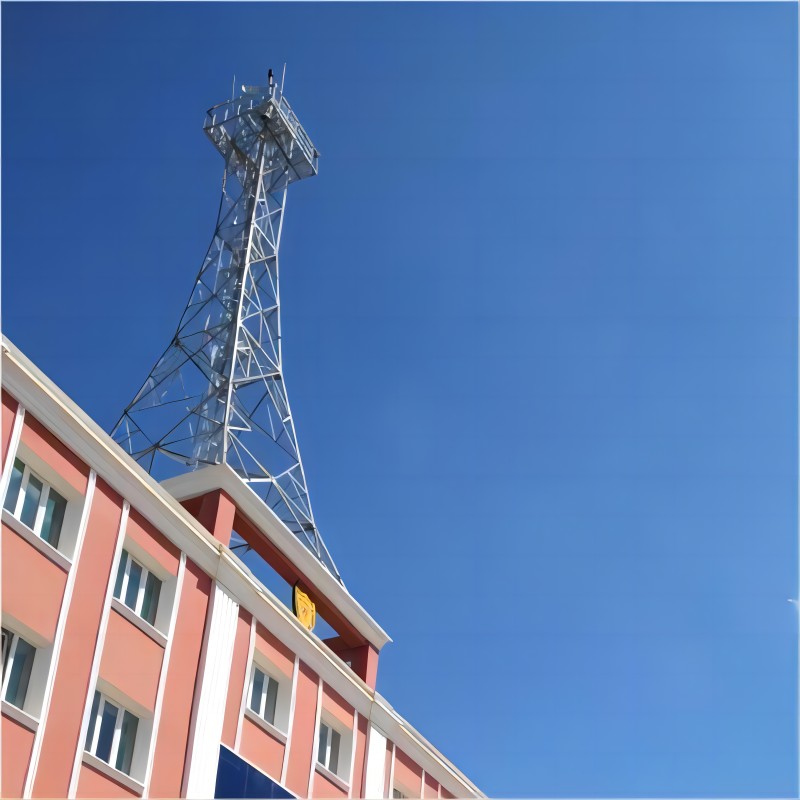

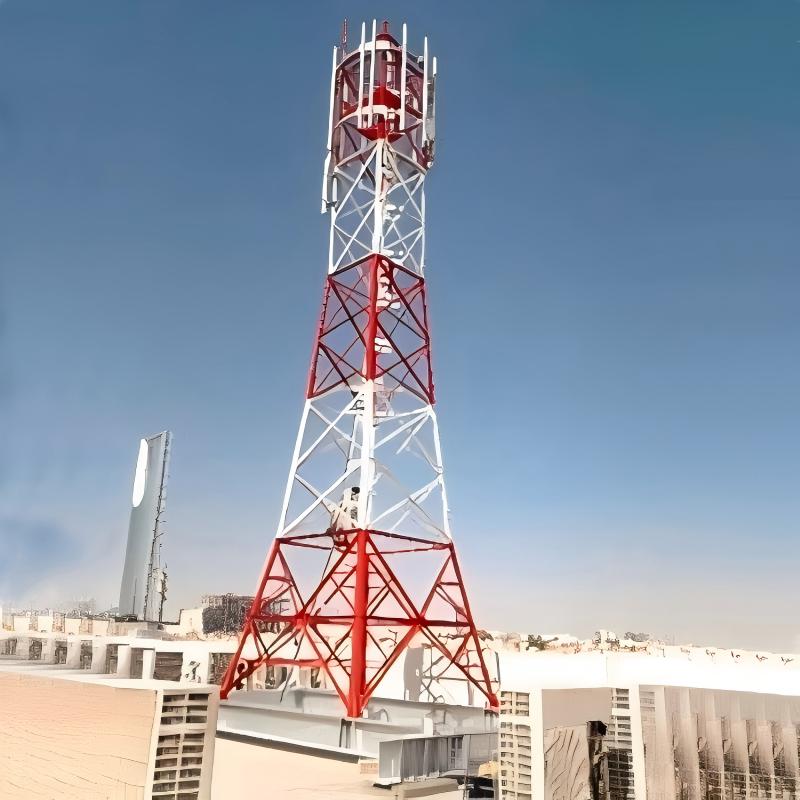

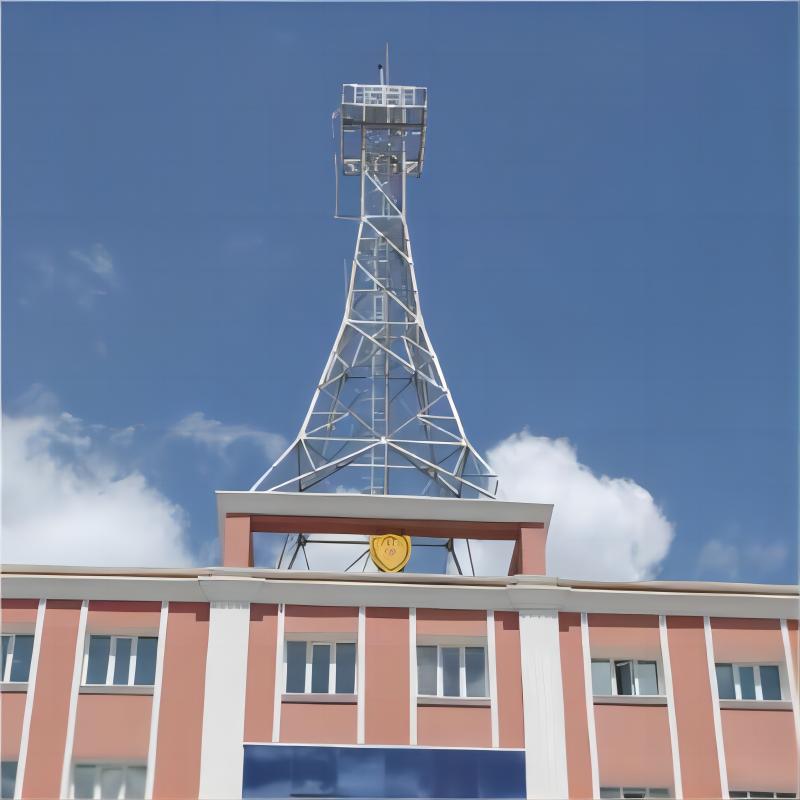

15–25m Rooftop Towers are self-supporting monopole or lattice structures mounted on commercial/residential buildings to host cellular antennas, small cells, and microwave links. They fill coverage gaps in dense urban areas while avoiding ground-space limitations. Deployment requires rigorous structural validation and RF optimization for micro-cell/macro-cell hybrid networks.
| Parameter | 15m Tower | 25m Tower |
|---|---|---|
| Typical Weight | 800–1,200 kg | 1,500–2,500 kg |
| Antenna Capacity | 3–6 sector antennas + 1–2 dishes | 6–9 sector antennas + 2–4 dishes |
| Wind Load (150 km/h) | 8–12 kN | 15–25 kN |
| Foundation Anchors | 8–12 bolts (M24–M30) | 12–16 bolts (M30–M36) |
| Coverage Radius | 0.3–0.8 km (urban) | 0.5–1.5 km (urban) |
| Product Name | 15M-25M Roof-top Tower |
| Type | Telecommunication Tower |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc |
| Height | 6-25M |
| Wind Speed | 0--330KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material |
GB/T700: Q235B, GB/T1591: Q355B, Q355C, Q355D, Q420 ASTM A36, ASTM A575, GR50 EN/0025: S235JR, S235JO, S235JZ EN/0025: S355JR, S355JO, S355JZ |
| Certificate | ISO9001:2008 SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization | ASTM A123/150 1461 |
| Nuts or Bolts | Grade 8.8 |
| Welding | AWS D1.1 |
| Method | CO2 Shielded Arc Welding, Submerged Arc Welding (SAW) |
| Galvanization Standard of Bolts and Nuts | ISO146 OR ASTM/A153 |
| Life Time | More than 25 years |
| Supply Ability | 3,000 Tons Per Month |
Product Details:
| Type | Pros | Cons |
|---|---|---|
| Tapered Monopole | Low visual impact; easy install | Limited payload (max 800kg @25m) |
| Lattice Tripod | High capacity (2,500kg); rigid | Larger footprint; visible |
| Guyed Mast | Height >25m; cost-effective | Complex anchor zoning |
Dead Load: Tower + antennas + ice (50mm radial)
Live Load: Maintenance crew (4 persons @100kg each)
Wind Load: ASCE 7-16 Chapter 29 (velocity pressure: qz=0.613KzKztKdV2)
Seismic Load: IBC 2021 equivalent lateral force (for Zone 3/4)
Base Plate: 1.5m×1.5m steel w/ shear keys (distributes load to ≥3 building columns)
Vibration Control:
Tuned mass dampers (for monopoles)
Viscoelastic pads (under base plate)
Penetration Mitigation: Non-destructive epoxy anchors (Hilti HVU)
| Height | Typical Use Case | Configuration |
|---|---|---|
| 15m | Urban canyons | 4x 4G LTE (1800MHz) + 2x 5G n78 small cells |
| 20m | Suburban macro coverage | 6x 4G/5G mMIMO (64TR) + 1x microwave backhaul |
| 25m | Airport/highway corridors | 8x multi-band antennas + 2x 80cm dishes |
