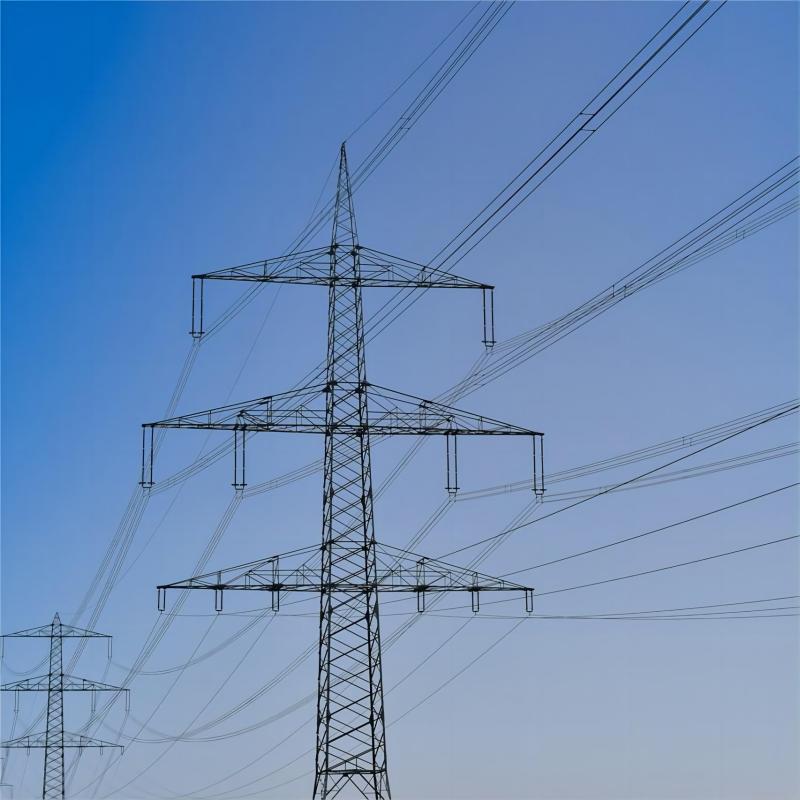

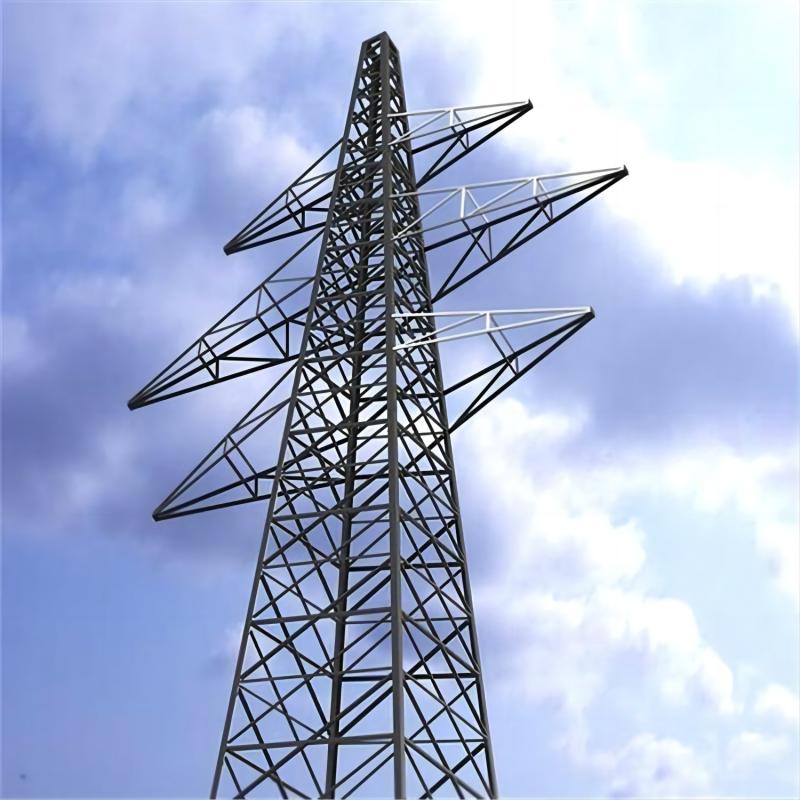

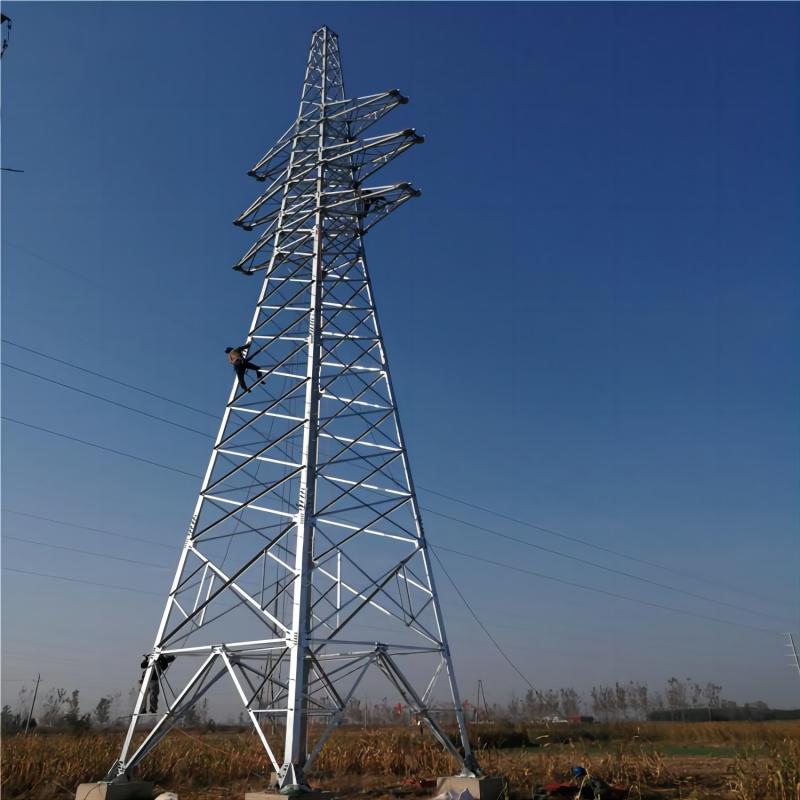

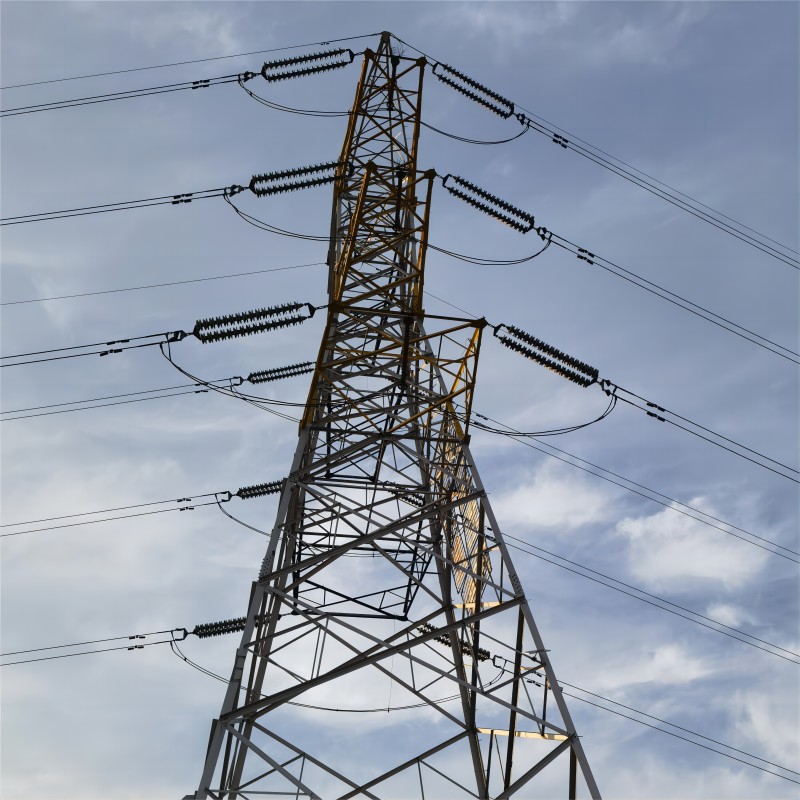

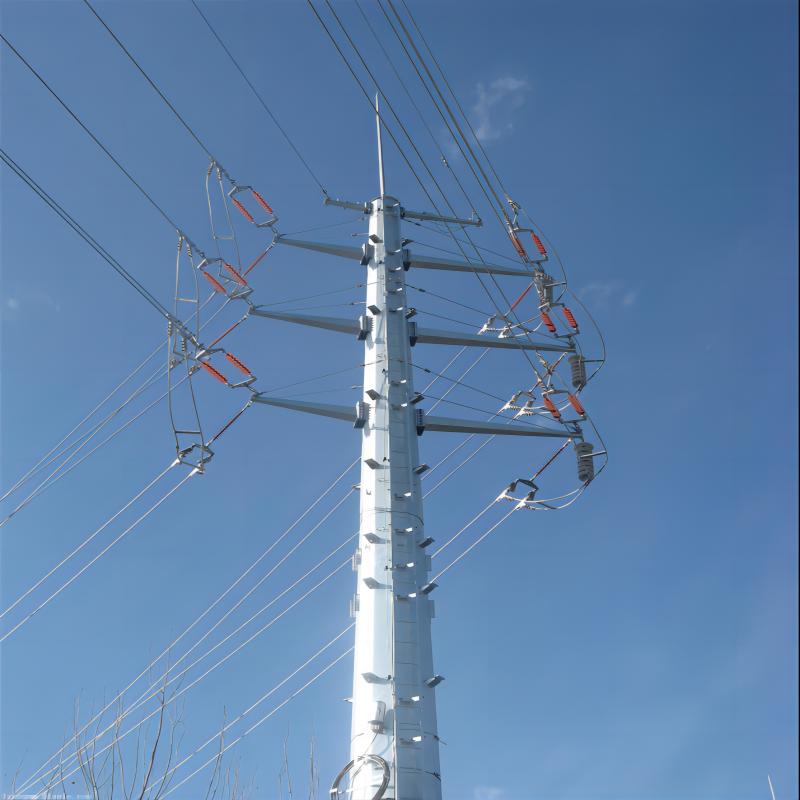

High Voltage (HV) Transmission Towers are lattice steel structures carrying overhead conductors at voltages from 52kV (sub-transmission) to 300kV (extra-high voltage). These towers form the critical infrastructure for bulk power transfer across regional and national grids, with typical spans of 300-600m between structures.
| Parameter | 52-132kV | 230-300kV |
|---|---|---|
| Height Range | 20-40m | 30-55m |
| Base Width | 4-8m | 8-15m |
| Phase Spacing | 3-5m | 7-12m |
| Conductor Bundles | Single | Twin/Triple |
| Insulator Length | 1-1.8m | 2-3.5m |
| Typical Current | 600-1,200A | 1,500-3,000A |
| Right-of-Way Width | 30-50m | 50-80m |
| Type | Configuration | Voltage Range | Span |
|---|---|---|---|
| Tangent | Straight-line support | All voltages | 300-500m |
| Angle | 0°-90° line deviation | ≤230kV | 250-400m |
| Dead-End | Terminal/tension points | All voltages | N/A |
| Transposition | Phase rotation towers | ≥132kV | 5-10km int. |
Steel: ASTM A572 Gr. 50 (yield: 345 MPa)
Galvanization: Hot-dip zinc coating (85μm min.) per ISO 1461
Connections: M24-M36 high-strength bolts (ASTM A325)
Corrosion Control: Sacrificial anodes in coastal areas
| Voltage | Phase-to-Ground | Phase-to-Phase | Live-to-Tower |
|---|---|---|---|
| 66kV | 0.9m | 1.2m | 0.6m |
| 132kV | 1.3m | 1.8m | 0.9m |
| 230kV | 2.0m | 3.0m | 1.5m |
| 300kV | 2.7m | 4.0m | 2.1m |
| *Based on IEC 61936 / ANSI C2 standards* |
Product Details
| Soil Type | Foundation Type | Depth | Load Capacity |
|---|---|---|---|
| Rock | Rock anchors | 3-6m | 500 kN/leg |
| Firm Soil | Pad-footing | 2-4m | 300 kN/leg |
| Soft Soil | Pile group (4-8 piles) | 8-15m | 800 kN/tower |
| Permafrost | Thermosyphon protected | 4-6m | 200 kN/leg |
| Voltage | Typical Design | Regions |
|---|---|---|
| 66kV | Single-circuit delta | UK, Australia, India |
| 132kV | Double-circuit horizontal | Europe, Africa |
| 230kV | Double-circuit barrel | Americas, Middle East |
| 300kV | Triple-circuit delta | Brazil, Japan, Scandinavia |
